Generates dynamic mesh topology from sparse control points. More...

#include <TopologyGeneratorNode.hpp>

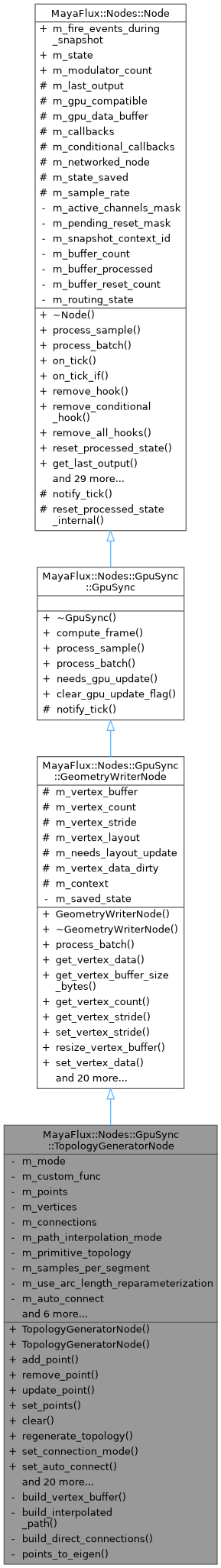

Inheritance diagram for MayaFlux::Nodes::GpuSync::TopologyGeneratorNode:

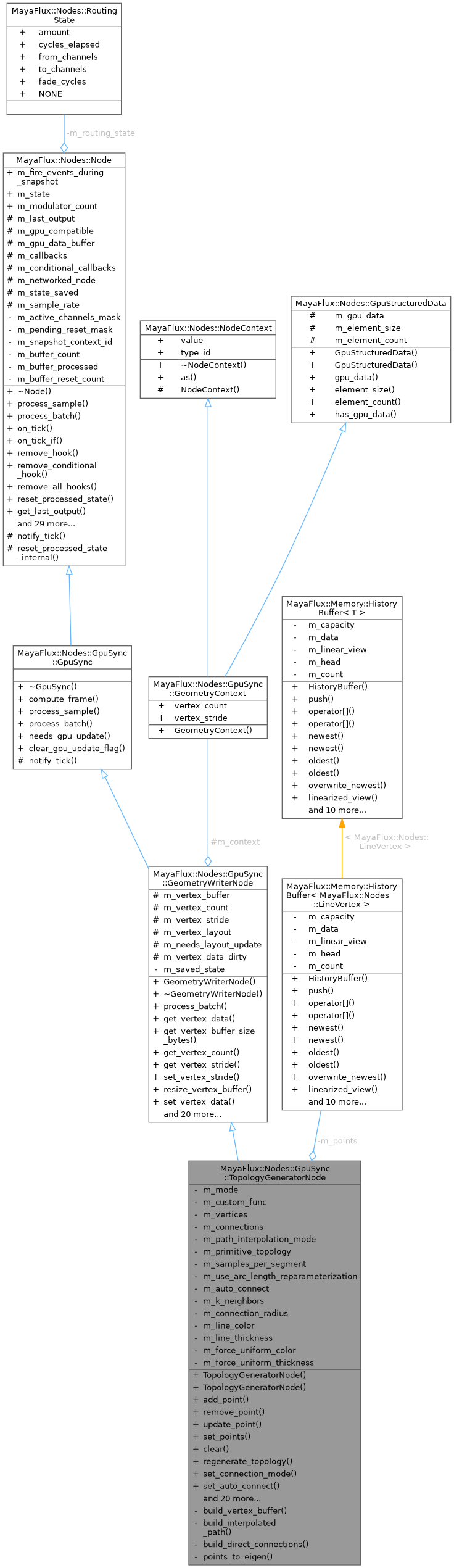

Collaboration diagram for MayaFlux::Nodes::GpuSync::TopologyGeneratorNode:

Public Types
using	CustomConnectionFunction = std::function< std::vector< std::pair< size_t, size_t > >(const Eigen::MatrixXd &)>

Public Member Functions
void	add_point (const LineVertex &point)
	Add point to topology.

void	clear ()
	Clear all points and connections.

void	compute_frame () override
	Compute frame - generates vertex data from points and connections.

void	force_uniform_color (bool should_force)
	Force uniform color for all vertices.

void	force_uniform_thickness (bool should_force)
	Force uniform thickness for all vertices.

size_t	get_connection_count () const
	Get connection count (edge count)

const std::vector< std::pair< size_t, size_t > > &	get_connections () const
	Get connection edges (pairs of point indices)

glm::vec3	get_line_color () const
	Get current line color.

const LineVertex &	get_point (size_t index) const
	Get point by index.

size_t	get_point_count () const
	Get point count.

std::vector< LineVertex >	get_points () const
	Get all points.

Portal::Graphics::PrimitiveTopology	get_primitive_topology () const override
	Get primitive topology for rendering.

size_t	get_vertex_count () const
	Get total vertex count (after interpolation)

void	regenerate_topology ()
	Manually trigger connection regeneration.

void	remove_point (size_t index)
	Remove point by index.

void	set_arc_length_reparameterization (bool enable)
	Enable or disable arc-length reparameterization for interpolation.

void	set_auto_connect (bool enable)
	Enable/disable automatic connection regeneration.

void	set_connection_mode (Kinesis::ProximityMode mode)
	Set connection mode.

void	set_connection_radius (float radius)
	Set radius for RADIUS_THRESHOLD mode.

void	set_k_neighbors (size_t k)
	Set K parameter for K_NEAREST mode.

void	set_line_color (const glm::vec3 &color, bool force_uniform=true)
	Set line color (applied to all connections)

void	set_line_thickness (float thickness, bool force_uniform=true)
	Set line thickness.

void	set_path_interpolation_mode (Kinesis::InterpolationMode mode)
	Set custom connection function (for CUSTOM mode)

void	set_points (const std::vector< LineVertex > &points)
	Set all points at once.

void	set_primitive_topology (Portal::Graphics::PrimitiveTopology topology)
	Set primitive topology for rendering.

void	set_samples_per_segment (size_t samples)
	Set number of samples per segment for interpolation.

bool	should_force_uniform_color () const
	Check if uniform color is forced.

	TopologyGeneratorNode (CustomConnectionFunction custom_func, bool auto_connect=true, size_t max_points=256)
	Create with custom connection function.

	TopologyGeneratorNode (Kinesis::ProximityMode mode=Kinesis::ProximityMode::SEQUENTIAL, bool auto_connect=true, size_t max_points=256)
	Create topology generator.

void	update_point (size_t index, const LineVertex &point)
	Update point data.

Public Member Functions inherited from MayaFlux::Nodes::GpuSync::GeometryWriterNode
void	clear ()
	Clear vertex buffer and reset count.

void	clear_and_resize (uint32_t vertex_count)
	Clear vertex buffer and resize to specified count.

void	clear_gpu_update_flag () override
	Clear the dirty flag after GPU upload completes.

void	clear_layout_update_flag ()
	Clear layout update flag.

	GeometryWriterNode (uint32_t initial_capacity=1024)
	Constructor.

uint32_t	get_index_count () const
	Get number of indices in index buffer.

std::span< const uint32_t >	get_index_data () const
	Get raw index buffer data.

NodeContext &	get_last_context () override
	Retrieves the last created context object.

std::span< const uint8_t >	get_vertex (uint32_t vertex_index) const
	Get a single vertex by index.

size_t	get_vertex_buffer_size_bytes () const
	Get vertex buffer size in bytes.

uint32_t	get_vertex_count () const
	Get number of vertices.

std::span< const uint8_t >	get_vertex_data () const
	Get raw vertex buffer data.

std::optional< Kakshya::VertexLayout >	get_vertex_layout () const
	Get cached vertex layout.

size_t	get_vertex_stride () const
	Get stride (bytes per vertex)

template<typename T >
T	get_vertex_typed (uint32_t index) const
	Get a single vertex by index as typed data.

bool	has_indices () const
	Check if index buffer has been set.

void	mark_vertex_data_dirty (bool state)
	Set vertex data dirty flag.

bool	needs_gpu_update () const override
	Check if vertex data or layout changed since last GPU sync.

bool	needs_layout_update () const
	Check if layout needs update.

bool	needs_vertex_data_update () const
	Check if vertex data has changed since last GPU sync.

std::vector< double >	process_batch (unsigned int num_samples) override
	Process batch for geometry generation.

void	resize_vertex_buffer (uint32_t vertex_count, bool preserve_data=false)
	Resize vertex buffer to hold specified number of vertices.

void	restore_state () override
	Restore saved geometry state.

void	save_state () override
	Save current geometry state.

void	set_indices (std::span< const uint32_t > indices)
	Set index buffer for indexed drawing.

void	set_vertex (uint32_t vertex_index, const void *data, size_t size_bytes)
	Set a single vertex by index.

void	set_vertex_data (const void *data, size_t size_bytes)
	Copy raw vertex data into buffer.

void	set_vertex_layout (const Kakshya::VertexLayout &layout)
	Set cached vertex layout.

void	set_vertex_stride (size_t stride)
	Set vertex stride (bytes per vertex)

template<typename T >
void	set_vertex_typed (uint32_t index, const T &vertex)
	Set a single vertex by index from typed data.

template<typename T >
void	set_vertices (std::span< const T > vertices)
	Set multiple vertices from typed array.

void	update_context (double value) override
	Updates the context object with the current node state.

	~GeometryWriterNode () override=default

Public Member Functions inherited from MayaFlux::Nodes::GpuSync::GpuSync
std::vector< double >	process_batch (unsigned int num_samples) override
	Batch processing for GPU nodes.

double	process_sample (double) override
	Single sample processing hook.

	~GpuSync () override=default

Public Member Functions inherited from MayaFlux::Nodes::Node
void	add_buffer_reference ()
	Increments the buffer reference count This method is called when a new buffer starts using this node to ensure proper lifecycle management.

uint64_t	get_active_snapshot_context () const
	Get the active snapshot context ID.

const std::atomic< uint32_t > &	get_channel_mask () const
	Retrieves the current bitmask of active channels using this node.

uint32_t	get_frame_rate () const

std::span< const float >	get_gpu_data_buffer () const
	Provides access to the GPU data buffer.

virtual double	get_last_output ()
	Retrieves the most recent output value produced by the node.

RoutingState &	get_routing_state ()
	Retrieves the current routing state of the network (non-const)

const RoutingState &	get_routing_state () const
	Retrieves the current routing state of the network.

uint32_t	get_sample_rate () const

bool	has_active_snapshot () const
	Check if node is currently being snapshotted by any context.

bool	has_capability (NodeCapability cap) const
	Query a single capability.

bool	is_buffer_processed () const
	Checks if the buffer has been processed.

bool	is_gpu_compatible () const
	Checks if the node supports GPU processing.

bool	is_in_network () const
	Sets whether the node is part of a NodeNetwork.

bool	is_in_snapshot_context (uint64_t context_id) const
	Check if currently in a snapshot context.

bool	is_used_by_channel (uint32_t channel_id) const
	Checks if the node is currently used by a specific channel.

bool	mark_buffer_processed ()
	Marks the node as having been processed by a buffer.

bool	needs_channel_routing () const
	Checks if the network is currently in a routing transition phase.

virtual uint8_t	node_capabilities () const
	Declare which data shapes this node's context can produce.

virtual void	on_tick (const NodeHook &callback)
	Registers a callback to be called on each tick.

virtual void	on_tick_if (const NodeCondition &condition, const NodeHook &callback)
	Registers a conditional callback.

void	register_channel_usage (uint32_t channel_id)
	Mark the specificed channel as a processor/user.

void	release_snapshot_context (uint64_t context_id)
	Release snapshot context.

virtual void	remove_all_hooks ()
	Removes all registered callbacks.

void	remove_buffer_reference ()
	Decrements the buffer reference count This method is called when a buffer stops using this node to ensure proper lifecycle management.

virtual bool	remove_conditional_hook (const NodeCondition &callback)
	Removes a previously registered conditional callback.

virtual bool	remove_hook (const NodeHook &callback)
	Removes a previously registered callback.

void	request_buffer_reset ()
	Requests a reset of the buffer state.

void	request_reset_from_channel (uint32_t channel_id)
	Requests a reset of the processed state from a specific channel.

virtual void	reset_processed_state ()
	Resets the processed state of the node and any attached input nodes.

void	set_frame_rate (uint32_t frame_rate)

virtual void	set_gpu_compatible (bool compatible)
	Sets whether the node is compatible with GPU processing.

void	set_in_network (bool networked)
	Marks the node as being part of a NodeNetwork.

void	set_sample_rate (uint32_t sample_rate)

bool	try_claim_snapshot_context (uint64_t context_id)
	Attempt to claim snapshot context for this processing cycle.

void	unregister_channel_usage (uint32_t channel_id)
	Removes the specified channel from the usage tracking.

virtual	~Node ()=default
	Virtual destructor for proper cleanup of derived classes.

Private Member Functions
void	build_direct_connections (std::span< LineVertex > points, size_t num_points)

void	build_interpolated_path (std::span< LineVertex > points, size_t num_points)

void	build_vertex_buffer ()

Eigen::MatrixXd	points_to_eigen () const

Private Attributes
bool	m_auto_connect

float	m_connection_radius { 1.0F }

std::vector< std::pair< size_t, size_t > >	m_connections

CustomConnectionFunction	m_custom_func

bool	m_force_uniform_color {}
	If true, all vertices use m_line_color instead of per-vertex color.

bool	m_force_uniform_thickness {}
	If true, all vertices use m_line_thickness instead of per-vertex thickness.

size_t	m_k_neighbors { 3 }

glm::vec3	m_line_color { 1.0F, 1.0F, 1.0F }

float	m_line_thickness { 1.0F }

Kinesis::ProximityMode	m_mode

Kinesis::InterpolationMode	m_path_interpolation_mode { Kinesis::InterpolationMode::CATMULL_ROM }

Memory::HistoryBuffer< LineVertex >	m_points

Portal::Graphics::PrimitiveTopology	m_primitive_topology { Portal::Graphics::PrimitiveTopology::LINE_LIST }

size_t	m_samples_per_segment { 20 }
	Controls smoothness vs performance.

bool	m_use_arc_length_reparameterization {}
	Optional constant-speed.

std::vector< LineVertex >	m_vertices

Additional Inherited Members
Public Attributes inherited from MayaFlux::Nodes::Node
bool	m_fire_events_during_snapshot = false
	Internal flag controlling whether notify_tick fires during state snapshots Default: false (events don't fire during isolated buffer processing) Can be exposed in future if needed via concrete implementation in parent.

std::atomic< uint32_t >	m_modulator_count { 0 }
	Counter tracking how many other nodes are using this node as a modulator.

std::atomic< NodeState >	m_state { NodeState::INACTIVE }
	Atomic state flag tracking the node's processing status.

Protected Member Functions inherited from MayaFlux::Nodes::GpuSync::GpuSync
void	notify_tick (double) override
	GPU sync nodes don't emit tick callbacks.

Protected Member Functions inherited from MayaFlux::Nodes::Node
virtual void	reset_processed_state_internal ()
	Resets the processed state of the node directly.

Protected Attributes inherited from MayaFlux::Nodes::GpuSync::GeometryWriterNode
GeometryContext	m_context { 0.0, {}, 0, 0 }

std::vector< uint32_t >	m_index_buffer
	Optional index buffer for indexed drawing (not used by default)

bool	m_needs_layout_update {}
	Flag indicating if layout needs update.

std::vector< uint8_t >	m_vertex_buffer
	Vertex data buffer (flat array of bytes)

uint32_t	m_vertex_count {}
	Number of vertices in buffer.

bool	m_vertex_data_dirty { true }
	Flag: vertex data or layout changed since last GPU upload.

std::optional< Kakshya::VertexLayout >	m_vertex_layout
	Cached vertex layout for descriptor binding.

size_t	m_vertex_stride {}
	Bytes per vertex (stride for vertex buffer binding)

Protected Attributes inherited from MayaFlux::Nodes::Node
std::vector< NodeHook >	m_callbacks
	Collection of standard callback functions.

std::vector< std::pair< NodeHook, NodeCondition > >	m_conditional_callbacks
	Collection of conditional callback functions with their predicates.

uint32_t	m_frame_rate { 60 }
	Frame rate for time-based processing, used for normalization.

bool	m_gpu_compatible {}
	Flag indicating if the node supports GPU processing This flag is set by derived classes to indicate whether the node can be processed on the GPU.

std::vector< float >	m_gpu_data_buffer
	GPU data buffer for context objects.

double	m_last_output { 0 }
	The most recent sample value generated by this oscillator.

bool	m_networked_node {}
	Flag indicating if the node is part of a NodeNetwork This flag is used to disable event firing when the node is managed within a NodeNetwork, preventing redundant or conflicting event notifications.

uint8_t	m_node_capability { NodeCapability::SCALAR }
	Bitmask of capabilities declared by this node.

uint32_t	m_sample_rate { 48000 }
	Sample rate for audio processing, used for normalization.

bool	m_state_saved {}
	tracks if the node's state has been saved by a snapshot operation

uint32_t	m_timing_rate { m_sample_rate }
	Current timing rate for the node, used for timing calculations (can be sample rate or frame rate)

Detailed Description

Generates dynamic mesh topology from sparse control points.

Core concept: Points define locations, ConnectionMode defines relationships. Every time points are added/removed/moved, topology is regenerated.

Philosophy:

Points are spatial anchors
Connections emerge from geometric relationships
Topology IS the content, not decoration

Extensions beyond connections:

Attractor mode: Points influence field, no lines
Gradient mode: Points define texture sampling positions
Emitter mode: Points spawn particles

Usage:

auto topo = std::make_shared<TopologyGenerator>(
    Kinesis::ProximityMode::K_NEAREST,
    true  // auto_connect
);

topo->add_point({glm::vec3(0.0f, 0.0f, 0.0f)});
topo->add_point({glm::vec3(1.0f, 0.0f, 0.0f)});
topo->add_point({glm::vec3(0.5f, 1.0f, 0.0f)});
// Delaunay triangulation automatically computed

auto buffer = std::make_shared<GeometryBuffer>(topo);
buffer->setup_rendering({
    .target_window = window,
    .topology = PrimitiveTopology::LINE_LIST  // or TRIANGLE_LIST
});

WARNING: Performance Characteristics

Connection algorithms vary significantly in computational complexity. Topology is fully regenerated when points change.

Complexity Overview:

Sequential Chain: O(n)
Radius Threshold: O(n²)
K-Nearest Neighbors: O(n² log k)
Minimum Spanning Tree: O(n² log n)
Gabriel Graph: O(n³)
Relative Neighborhood: O(n³)

Practical Real-Time Guidance (approximate):

Sequential: thousands of points
Radius / KNN: a few hundred points
Gabriel / RNG: tens of points for interactive updates

Batch Update Pattern for Expensive Modes:

std::vector<Point> points; for (...) { points.push_back({position, color}); } topo->set_points(points); // Single O(n³) rebuild

Interactive Drawing Note:

When adding points continuously (e.g. mouse-move drawing), prefer SEQUENTIAL, RADIUS_THRESHOLD, or small-k K_NEAREST modes.

TopologyGeneratorNode prioritizes correctness and determinism over incremental graph maintenance. Expensive modes are intended for moderate point counts or batch generation.

Definition at line 83 of file TopologyGeneratorNode.hpp.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Complexity Overview:

Practical Real-Time Guidance (approximate):

Batch Update Pattern for Expensive Modes:

Interactive Drawing Note:
