TopologyGeneratorNode() [2/2]

MayaFlux::Nodes::GpuSync::TopologyGeneratorNode::TopologyGeneratorNode	(	CustomConnectionFunction	custom_func,
		bool	auto_connect = true,
		size_t	max_points = 256
	)

Create with custom connection function.

Parameters

custom_func	User-provided topology generation
auto_connect	Auto-regenerate flag
max_points	Maximum capacity

Definition at line 55 of file TopologyGeneratorNode.cpp.

    : GeometryWriterNode(static_cast<uint32_t>(max_points * max_points))
    , m_mode(Kinesis::ProximityMode::CUSTOM)
    , m_custom_func(std::move(custom_func))
    , m_max_points(max_points)
    , m_auto_connect(auto_connect)
{
    m_primitive_topology = Portal::Graphics::PrimitiveTopology::LINE_LIST;

    const auto& stride = sizeof(LineVertex);
    set_vertex_stride(stride);

    auto layout = Kakshya::VertexLayout::for_lines(stride);
    layout.vertex_count = 0;
    set_vertex_layout(layout);

    m_points.reserve(max_points);
    m_vertices.reserve(max_points * max_points);
    m_connections.reserve(max_points * max_points);

    MF_DEBUG(Journal::Component::Nodes, Journal::Context::NodeProcessing,
        "Created TopologyGeneratorNode with custom function");
}

References MayaFlux::Kakshya::VertexLayout::for_lines(), MayaFlux::Portal::Graphics::LINE_LIST, m_connections, m_points, MayaFlux::Nodes::GpuSync::GeometryWriterNode::m_primitive_topology, m_vertices, MF_DEBUG, MayaFlux::Journal::NodeProcessing, MayaFlux::Journal::Nodes, MayaFlux::Nodes::GpuSync::GeometryWriterNode::set_vertex_layout(), and MayaFlux::Nodes::GpuSync::GeometryWriterNode::set_vertex_stride().

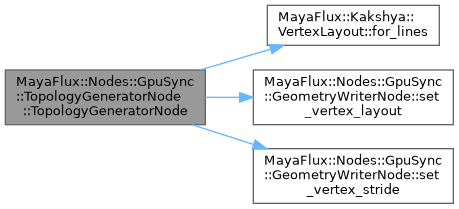

Here is the call graph for this function:
