MayaFlux::Memory::HistoryBuffer< T > Class Template Reference

History buffer for difference equations and recursive relations. More...

#include <RingBuffer.hpp>

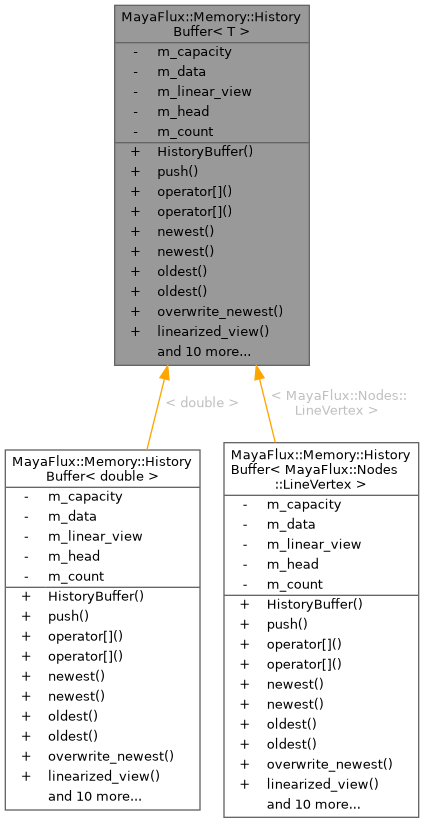

Inheritance diagram for MayaFlux::Memory::HistoryBuffer< T >:

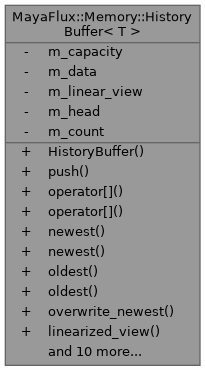

Collaboration diagram for MayaFlux::Memory::HistoryBuffer< T >:

Public Types
using	value_type = T
using	reference = T &
using	const_reference = const T &

Public Member Functions
	HistoryBuffer (size_t capacity)
	Construct history buffer with specified capacity.
void	push (const T &value)
	Push new value to front of history.
reference	operator[] (size_t index)
	Access element by temporal offset.
const_reference	operator[] (size_t index) const
reference	newest ()
	Get newest element (same as [0])
const_reference	newest () const
reference	oldest ()
	Get oldest element (same as [capacity-1])
const_reference	oldest () const
void	overwrite_newest (const T &value)
	Overwrite the newest element without advancing position.
std::span< T >	linearized_view ()
	Get mutable linearized view of entire history.
std::span< const T >	linearized_view () const
	Get const linearized view.
void	update (size_t index, const T &value)
	Update element at specific index.
void	reset ()
	Reset buffer to initial state (all zeros)
void	set_initial_conditions (const std::vector< T > &values)
	Set initial conditions.
void	resize (size_t new_capacity)
	Resize buffer capacity.
size_t	capacity () const
	Get buffer capacity.
size_t	size () const
	Get current count (always equals capacity for HistoryBuffer)
bool	empty () const
	Check if buffer is empty (always false for HistoryBuffer)
std::vector< T >	save_state () const
	Save current state for later restoration.
void	restore_state (const std::vector< T > &state)
	Restore previously saved state.

Private Attributes
size_t	m_capacity
std::vector< T >	m_data
std::vector< T >	m_linear_view
size_t	m_head {}
size_t	m_count

Detailed Description

template<typename T>
class MayaFlux::Memory::HistoryBuffer< T >

History buffer for difference equations and recursive relations.

Specialized ring buffer for maintaining temporal history in mathematical computations. Pre-initialized to full capacity with zeros to match standard mathematical notation where y[n-k] is defined for all k < N from the start (initial conditions = 0).

Key Differences from Generic RingBuffer:

• Pre-filled to capacity on construction (all zeros)
• Always returns full-size mutable spans (size = capacity)
• Direct mutable element access via operator[]
• Matches mathematical notation: y[0] = newest, y[k] = k steps back

Template Parameters

T	Element type

// IIR filter: y[n] = 0.8·y[n-1] - 0.5·y[n-2] + x[n]
HistoryBuffer<double> y_history(2);  // Pre-filled with [0.0, 0.0]

for (auto x : input_signal) {
    y_history.push(x);  // Current input becomes y[0]

    double y_n = y_history[0];     // y[n] (just pushed)
    double y_n1 = y_history[1];    // y[n-1]
    double y_n2 = y_history[2];    // y[n-2]

    double output = 0.8*y_n1 - 0.5*y_n2 + y_n;
    y_history.overwrite_newest(output);  // Replace y[n] with computed output
}

Definition at line 344 of file RingBuffer.hpp.

---

The documentation for this class was generated from the following file:

• RingBuffer.hpp
