MayaFlux::Nodes::Node Class Reference

Base interface for all computational processing nodes. More...

#include <Node.hpp>

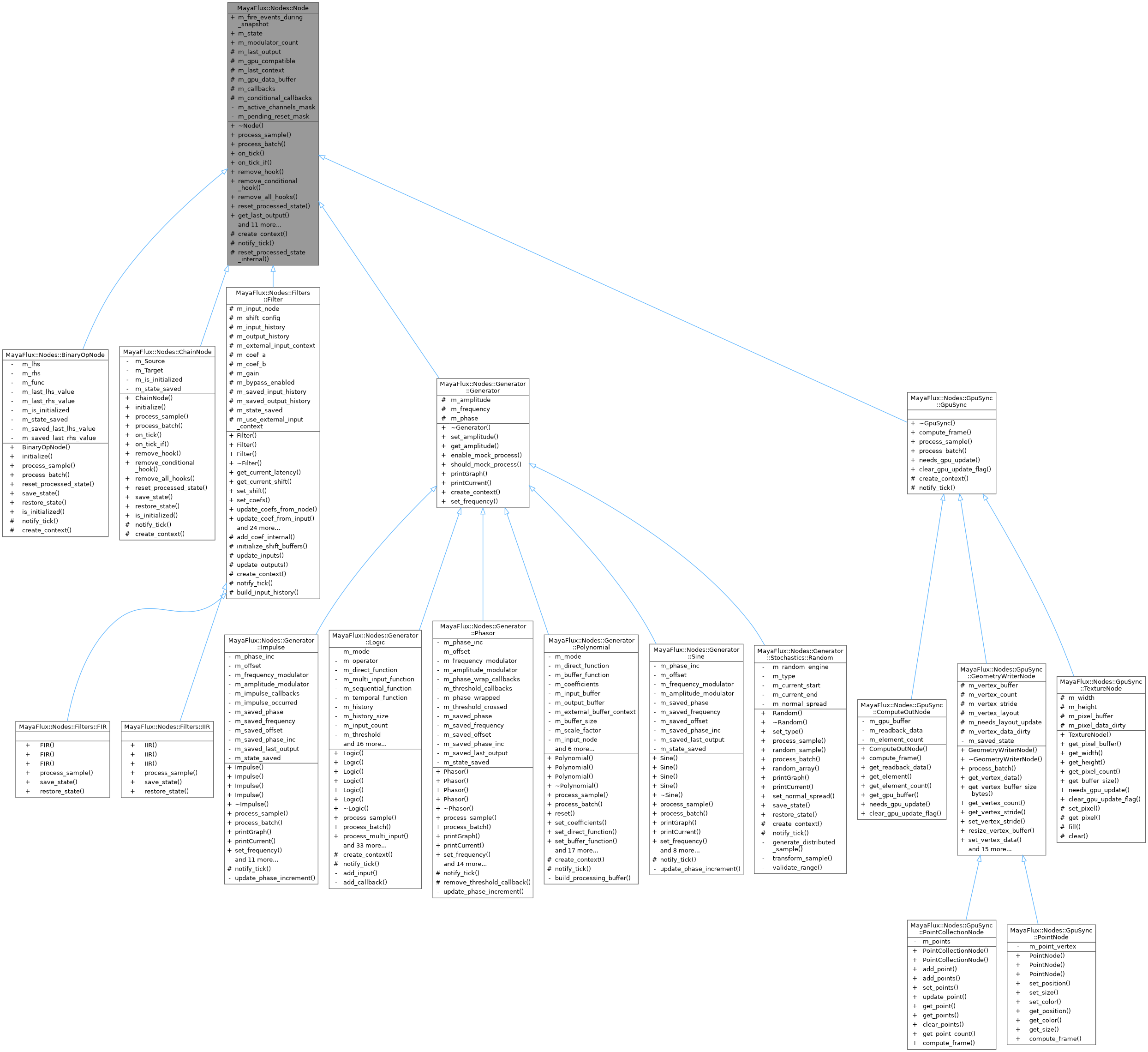

Inheritance diagram for MayaFlux::Nodes::Node:

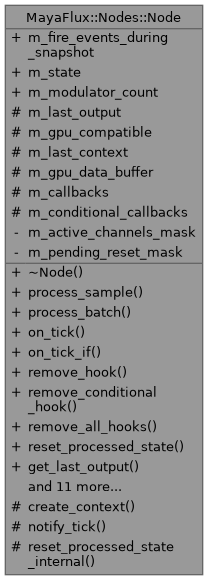

Collaboration diagram for MayaFlux::Nodes::Node:

Public Member Functions
void	add_buffer_reference ()
	Increments the buffer reference count This method is called when a new buffer starts using this node to ensure proper lifecycle management.
uint64_t	get_active_snapshot_context () const
	Get the active snapshot context ID.
const std::atomic< uint32_t > &	get_channel_mask () const
	Retrieves the current bitmask of active channels using this node.
uint32_t	get_frame_rate () const
std::span< const float >	get_gpu_data_buffer () const
	Provides access to the GPU data buffer.
virtual NodeContext &	get_last_context ()=0
	Retrieves the last created context object.
virtual double	get_last_output ()
	Retrieves the most recent output value produced by the node.
RoutingState &	get_routing_state ()
	Retrieves the current routing state of the network (non-const)
const RoutingState &	get_routing_state () const
	Retrieves the current routing state of the network.
uint32_t	get_sample_rate () const
bool	has_active_snapshot () const
	Check if node is currently being snapshotted by any context.
bool	has_capability (NodeCapability cap) const
	Query a single capability.
bool	is_buffer_processed () const
	Checks if the buffer has been processed.
bool	is_gpu_compatible () const
	Checks if the node supports GPU processing.
bool	is_in_network () const
	Sets whether the node is part of a NodeNetwork.
bool	is_in_snapshot_context (uint64_t context_id) const
	Check if currently in a snapshot context.
bool	is_used_by_channel (uint32_t channel_id) const
	Checks if the node is currently used by a specific channel.
bool	mark_buffer_processed ()
	Marks the node as having been processed by a buffer.
bool	needs_channel_routing () const
	Checks if the network is currently in a routing transition phase.
virtual uint8_t	node_capabilities () const
	Declare which data shapes this node's context can produce.
virtual void	on_tick (const NodeHook &callback)
	Registers a callback to be called on each tick.
virtual void	on_tick_if (const NodeCondition &condition, const NodeHook &callback)
	Registers a conditional callback.
virtual std::vector< double >	process_batch (unsigned int num_samples)=0
	Processes multiple samples at once.
virtual double	process_sample (double input=0.)=0
	Processes a single data sample.
void	register_channel_usage (uint32_t channel_id)
	Mark the specificed channel as a processor/user.
void	release_snapshot_context (uint64_t context_id)
	Release snapshot context.
virtual void	remove_all_hooks ()
	Removes all registered callbacks.
void	remove_buffer_reference ()
	Decrements the buffer reference count This method is called when a buffer stops using this node to ensure proper lifecycle management.
virtual bool	remove_conditional_hook (const NodeCondition &callback)
	Removes a previously registered conditional callback.
virtual bool	remove_hook (const NodeHook &callback)
	Removes a previously registered callback.
void	request_buffer_reset ()
	Requests a reset of the buffer state.
void	request_reset_from_channel (uint32_t channel_id)
	Requests a reset of the processed state from a specific channel.
virtual void	reset_processed_state ()
	Resets the processed state of the node and any attached input nodes.
virtual void	restore_state ()=0
	Restores the node's state from the last save Recursively cascades through all connected modulator nodes Protected - only NodeSourceProcessor and NodeBuffer can call.
virtual void	save_state ()=0
	Saves the node's current state for later restoration Recursively cascades through all connected modulator nodes Protected - only NodeSourceProcessor and NodeBuffer can call.
void	set_frame_rate (uint32_t frame_rate)
virtual void	set_gpu_compatible (bool compatible)
	Sets whether the node is compatible with GPU processing.
void	set_in_network (bool networked)
	Marks the node as being part of a NodeNetwork.
void	set_sample_rate (uint32_t sample_rate)
bool	try_claim_snapshot_context (uint64_t context_id)
	Attempt to claim snapshot context for this processing cycle.
void	unregister_channel_usage (uint32_t channel_id)
	Removes the specified channel from the usage tracking.
virtual void	update_context (double value)=0
	Updates the context object with the current node state.
virtual	~Node ()=default
	Virtual destructor for proper cleanup of derived classes.

Public Attributes
bool	m_fire_events_during_snapshot = false
	Internal flag controlling whether notify_tick fires during state snapshots Default: false (events don't fire during isolated buffer processing) Can be exposed in future if needed via concrete implementation in parent.
std::atomic< uint32_t >	m_modulator_count { 0 }
	Counter tracking how many other nodes are using this node as a modulator.
std::atomic< NodeState >	m_state { NodeState::INACTIVE }
	Atomic state flag tracking the node's processing status.

Protected Member Functions
virtual void	notify_tick (double value)=0
	Notifies all registered callbacks with the current context.
virtual void	reset_processed_state_internal ()
	Resets the processed state of the node directly.

Protected Attributes
std::vector< NodeHook >	m_callbacks
	Collection of standard callback functions.
std::vector< std::pair< NodeHook, NodeCondition > >	m_conditional_callbacks
	Collection of conditional callback functions with their predicates.
uint32_t	m_frame_rate { 60 }
	Frame rate for time-based processing, used for normalization.
bool	m_gpu_compatible {}
	Flag indicating if the node supports GPU processing This flag is set by derived classes to indicate whether the node can be processed on the GPU.
std::vector< float >	m_gpu_data_buffer
	GPU data buffer for context objects.
double	m_last_output { 0 }
	The most recent sample value generated by this oscillator.
bool	m_networked_node {}
	Flag indicating if the node is part of a NodeNetwork This flag is used to disable event firing when the node is managed within a NodeNetwork, preventing redundant or conflicting event notifications.
uint8_t	m_node_capability { NodeCapability::SCALAR }
	Bitmask of capabilities declared by this node.
uint32_t	m_sample_rate { 48000 }
	Sample rate for audio processing, used for normalization.
bool	m_state_saved {}
	tracks if the node's state has been saved by a snapshot operation
uint32_t	m_timing_rate { m_sample_rate }
	Current timing rate for the node, used for timing calculations (can be sample rate or frame rate)

Private Attributes
std::atomic< uint32_t >	m_active_channels_mask { 0 }
	Bitmask tracking which channels are currently using this node.
std::atomic< uint32_t >	m_buffer_count { 0 }
	Counter tracking how many buffers are using this node This counter is incremented when a buffer starts using this node and decremented when the buffer stops using it.
std::atomic< bool >	m_buffer_processed { false }
	Flag indicating whether the buffer has been processed This atomic flag is set when the buffer has been successfully processed and is used to prevent redundant processing.
std::atomic< uint32_t >	m_buffer_reset_count { 0 }
	Counter tracking how many buffers have requested a reset.
std::atomic< uint32_t >	m_pending_reset_mask { 0 }
	Bitmask tracking which channels have requested a reset.
RoutingState	m_routing_state
	Internal state tracking for routing transitions.
std::atomic< uint64_t >	m_snapshot_context_id { 0 }
	Unique identifier for the current snapshot context.

Detailed Description

Base interface for all computational processing nodes.

The Node class defines the fundamental interface for all processing components in the MayaFlux engine. Nodes are the basic building blocks of transformation chains and can be connected together to create complex computational graphs.

Each node processes data on a sample-by-sample basis, allowing for flexible real-time processing. Nodes can be:

• Connected in series (output of one feeding into input of another)
• Combined in parallel (outputs mixed together)
• Multiplied (outputs multiplied together)

The node system supports both single-sample processing for real-time applications and batch processing for more efficient offline processing.

Definition at line 118 of file Node.hpp.

---

The documentation for this class was generated from the following files:

• Node.hpp
• Node.cpp
