#include <RenderProcessor.hpp>

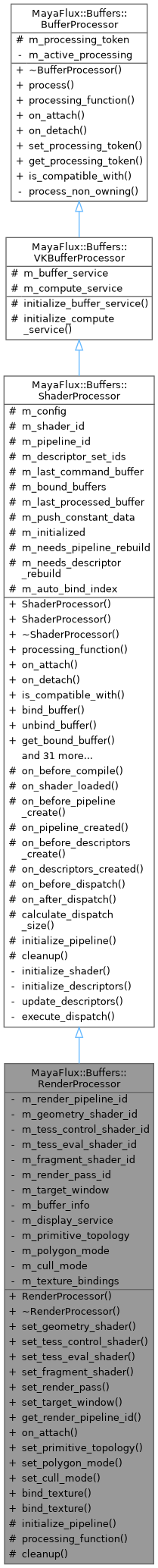

Inheritance diagram for MayaFlux::Buffers::RenderProcessor:

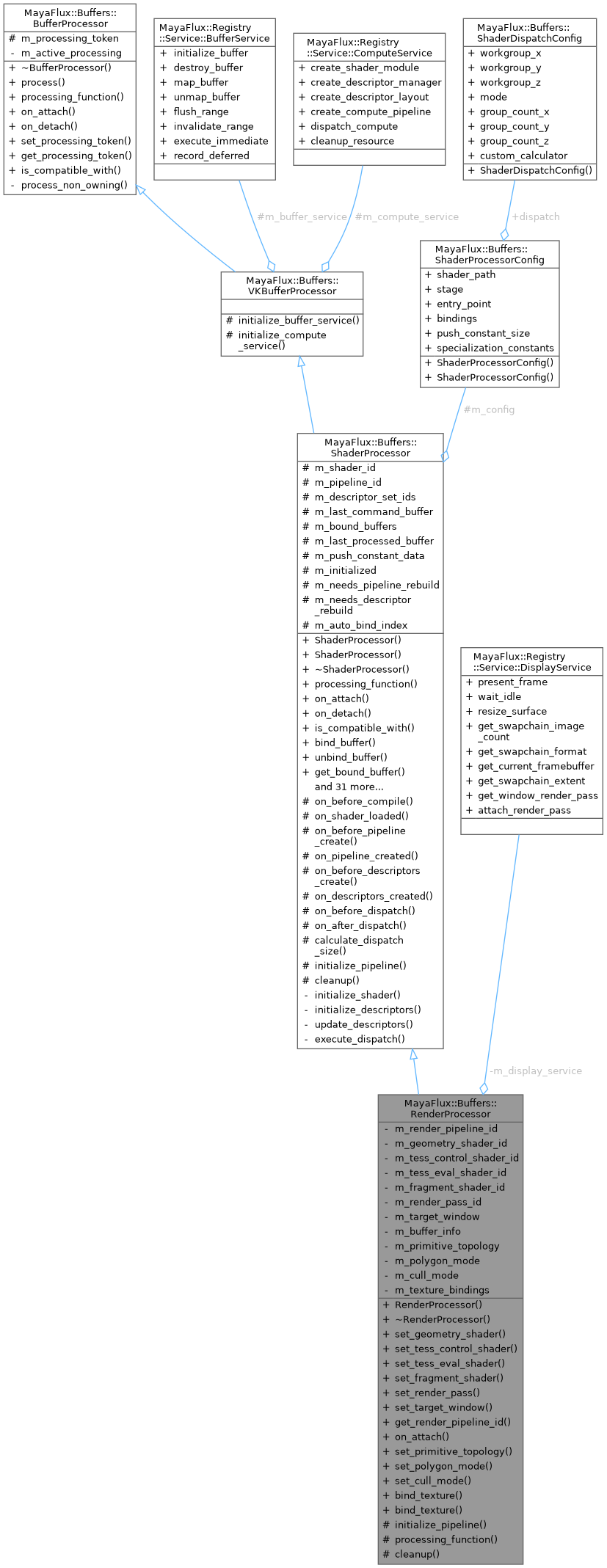

Collaboration diagram for MayaFlux::Buffers::RenderProcessor:

Classes
struct	TextureBinding

struct	VertexInfo

Public Member Functions
	RenderProcessor (const ShaderConfig &config)

	~RenderProcessor () override

void	set_geometry_shader (const std::string &geometry_path)

void	set_tess_control_shader (const std::string &tess_control_path)

void	set_tess_eval_shader (const std::string &tess_eval_path)

void	set_fragment_shader (const std::string &fragment_path)

void	set_target_window (const std::shared_ptr< Core::Window > &window, const std::shared_ptr< VKBuffer > &buffer)

Portal::Graphics::RenderPipelineID	get_render_pipeline_id () const

void	on_attach (const std::shared_ptr< Buffer > &buffer) override
	Called when this processor is attached to a buffer.

void	set_primitive_topology (Portal::Graphics::PrimitiveTopology topology)
	Set primitive topology (e.g., triangle list, line list, point list)

void	set_polygon_mode (Portal::Graphics::PolygonMode mode)
	Set polygon mode (e.g., fill, line, point)

void	set_cull_mode (Portal::Graphics::CullMode mode)
	Set cull mode (e.g., none, front, back)

void	bind_texture (uint32_t binding, const std::shared_ptr< Core::VKImage > &texture, vk::Sampler sampler=nullptr)
	Bind a texture to a descriptor binding point.

void	bind_texture (const std::string &descriptor_name, const std::shared_ptr< Core::VKImage > &texture, vk::Sampler sampler=nullptr)
	Bind a texture to a named descriptor.

bool	is_pipeline_ready () const
	Check if pipeline is created.

void	set_vertex_range (uint32_t first_vertex, uint32_t vertex_count)
	Set vertex range for drawing subset of buffer.

void	set_buffer_vertex_layout (const std::shared_ptr< VKBuffer > &buffer, const Kakshya::VertexLayout &layout)
	Override the vertex layout used when building the pipeline for buffer.

void	set_blend_attachment (const Portal::Graphics::BlendAttachmentConfig &config)
	Set blend mode for color attachment.

void	enable_alpha_blending ()
	Enable standard alpha blending (src_alpha, one_minus_src_alpha)

void	enable_depth_test (Portal::Graphics::CompareOp compare_op=Portal::Graphics::CompareOp::LESS)
	Enable depth testing for this processor's pipeline.

void	set_view_transform (const Kinesis::ViewTransform &vt)
	Set static view transform (evaluated once)

void	set_view_transform_source (std::function< Kinesis::ViewTransform()> fn)
	Set dynamic view transform source (evaluated every frame)

Public Member Functions inherited from MayaFlux::Buffers::ShaderProcessor
	ShaderProcessor (const std::string &shader_path)
	Construct processor with shader path.

	ShaderProcessor (ShaderConfig config)
	Construct processor with full configuration.

	~ShaderProcessor () override

void	processing_function (const std::shared_ptr< Buffer > &buffer) override
	The core processing function that must be implemented by derived classes.

void	on_attach (const std::shared_ptr< Buffer > &buffer) override
	Called when this processor is attached to a buffer.

void	on_detach (const std::shared_ptr< Buffer > &buffer) override
	Called when this processor is detached from a buffer.

bool	is_compatible_with (const std::shared_ptr< Buffer > &buffer) const override
	Checks if this processor can handle the specified buffer type.

void	bind_buffer (const std::string &descriptor_name, const std::shared_ptr< VKBuffer > &buffer)
	Bind a VKBuffer to a named shader descriptor.

void	unbind_buffer (const std::string &descriptor_name)
	Unbind a buffer from a descriptor.

std::shared_ptr< VKBuffer >	get_bound_buffer (const std::string &descriptor_name) const
	Get bound buffer for a descriptor name.

void	auto_bind_buffer (const std::shared_ptr< VKBuffer > &buffer)
	Auto-bind buffer based on attachment order.

bool	hot_reload_shader ()
	Hot-reload shader from ShaderFoundry.

void	set_shader (const std::string &shader_path)
	Update shader path and reload.

const std::string &	get_shader_path () const
	Get current shader path.

void	set_push_constant_size (size_t size)
	Set push constant size.

template<typename T >
void	set_push_constant_size ()
	Set push constant size from type.

template<typename T >
void	set_push_constant_data (const T &data)
	Update push constant data (type-safe)

void	set_push_constant_data_raw (const void *data, size_t size)
	Update push constant data (raw bytes)

const std::vector< uint8_t > &	get_push_constant_data () const
	Get current push constant data.

std::vector< uint8_t > &	get_push_constant_data ()

void	set_specialization_constant (uint32_t constant_id, uint32_t value)
	Set specialization constant.

void	clear_specialization_constants ()
	Clear all specialization constants.

void	set_config (const ShaderConfig &config)
	Update entire configuration.

const ShaderConfig &	get_config () const
	Get current configuration.

void	add_binding (const std::string &descriptor_name, const ShaderBinding &binding)
	Add descriptor binding configuration.

virtual BufferUsageHint	get_buffer_usage_hint (const std::string &descriptor_name) const
	Get buffer usage hint for a descriptor.

virtual bool	is_in_place_operation (const std::string &descriptor_name) const
	Check if shader modifies a specific buffer in-place.

bool	has_binding (const std::string &descriptor_name) const
	Check if a descriptor binding exists.

std::vector< std::string >	get_binding_names () const
	Get all configured descriptor names.

bool	are_bindings_complete () const
	Check if all required bindings are satisfied.

bool	is_shader_loaded () const
	Check if shader is loaded.

bool	are_descriptors_ready () const
	Check if descriptors are initialized.

size_t	get_bound_buffer_count () const
	Get number of bound buffers.

virtual std::shared_ptr< VKBuffer >	get_output_buffer () const
	Get the output buffer after compute dispatch.

virtual bool	has_executed () const
	Check if compute has been executed at least once.

Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor
virtual	~BufferProcessor ()=default
	Virtual destructor for proper cleanup of derived classes.

void	process (const std::shared_ptr< Buffer > &buffer)
	Applies a computational transformation to the data in the provided buffer.

virtual void	set_processing_token (ProcessingToken token)
	Gets the preferred processing backend for this processor.

virtual ProcessingToken	get_processing_token () const
	Gets the current processing token for this buffer.

Protected Member Functions
void	initialize_pipeline (const std::shared_ptr< VKBuffer > &buffer) override

void	execute_shader (const std::shared_ptr< VKBuffer > &buffer) override

void	initialize_descriptors (const std::shared_ptr< VKBuffer > &buffer) override

bool	on_before_execute (Portal::Graphics::CommandBufferID cmd_id, const std::shared_ptr< VKBuffer > &buffer) override
	Called before each process callback.

void	cleanup () override

Protected Member Functions inherited from MayaFlux::Buffers::ShaderProcessor
virtual void	on_before_compile (const std::string &shader_path)
	Called before shader compilation.

virtual void	on_shader_loaded (Portal::Graphics::ShaderID shader_id)
	Called after shader is loaded.

virtual void	on_before_pipeline_create (Portal::Graphics::ComputePipelineID pipeline_id)
	Called before pipeline creation.

virtual void	on_pipeline_created (Portal::Graphics::ComputePipelineID pipeline_id)
	Called after pipeline is created.

virtual void	on_before_descriptors_create ()
	Called before descriptor sets are created.

virtual void	on_descriptors_created ()
	Called after descriptor sets are created.

virtual void	on_after_execute (Portal::Graphics::CommandBufferID cmd_id, const std::shared_ptr< VKBuffer > &buffer)
	Called after each process callback.

virtual void	update_descriptors (const std::shared_ptr< VKBuffer > &buffer)

Protected Member Functions inherited from MayaFlux::Buffers::VKBufferProcessor
void	initialize_buffer_service ()

void	initialize_compute_service ()

Private Member Functions
const Kakshya::VertexLayout *	get_or_cache_vertex_layout (std::unordered_map< std::shared_ptr< VKBuffer >, VertexInfo > &buffer_info, const std::shared_ptr< VKBuffer > &buffer)

Private Attributes
Portal::Graphics::RenderPipelineID	m_pipeline_id = Portal::Graphics::INVALID_RENDER_PIPELINE

Portal::Graphics::ShaderID	m_geometry_shader_id = Portal::Graphics::INVALID_SHADER

Portal::Graphics::ShaderID	m_tess_control_shader_id = Portal::Graphics::INVALID_SHADER

Portal::Graphics::ShaderID	m_tess_eval_shader_id = Portal::Graphics::INVALID_SHADER

Portal::Graphics::ShaderID	m_fragment_shader_id = Portal::Graphics::INVALID_SHADER

std::shared_ptr< Core::Window >	m_target_window

std::unordered_map< std::shared_ptr< VKBuffer >, VertexInfo >	m_buffer_info

Registry::Service::DisplayService *	m_display_service = nullptr

Portal::Graphics::PrimitiveTopology	m_primitive_topology { Portal::Graphics::PrimitiveTopology::TRIANGLE_LIST }

Portal::Graphics::PolygonMode	m_polygon_mode { Portal::Graphics::PolygonMode::FILL }

Portal::Graphics::CullMode	m_cull_mode { Portal::Graphics::CullMode::NONE }

std::unordered_map< uint32_t, TextureBinding >	m_texture_bindings

std::optional< Portal::Graphics::BlendAttachmentConfig >	m_blend_attachment

Portal::Graphics::DepthStencilConfig	m_depth_stencil

bool	m_depth_enabled {}

uint32_t	m_first_vertex { 0 }

uint32_t	m_vertex_count { 0 }

std::optional< Kinesis::ViewTransform >	m_view_transform

std::function< Kinesis::ViewTransform()>	m_view_transform_source

Additional Inherited Members
Public Types inherited from MayaFlux::Buffers::ShaderProcessor
enum class	BufferUsageHint : uint8_t { NONE = 0 , INPUT_READ = 1 << 0 , OUTPUT_WRITE = 1 << 1 , BIDIRECTIONAL = INPUT_READ \| OUTPUT_WRITE }
	Get buffer usage characteristics needed for safe data flow. More...

Protected Attributes inherited from MayaFlux::Buffers::ShaderProcessor
ShaderConfig	m_config

Portal::Graphics::ShaderID	m_shader_id = Portal::Graphics::INVALID_SHADER

std::vector< Portal::Graphics::DescriptorSetID >	m_descriptor_set_ids

Portal::Graphics::CommandBufferID	m_last_command_buffer = Portal::Graphics::INVALID_COMMAND_BUFFER

std::unordered_map< std::string, std::shared_ptr< VKBuffer > >	m_bound_buffers

std::shared_ptr< VKBuffer >	m_last_processed_buffer

std::vector< uint8_t >	m_push_constant_data

bool	m_initialized {}

bool	m_needs_pipeline_rebuild = true

bool	m_needs_descriptor_rebuild = true

size_t	m_auto_bind_index {}

Protected Attributes inherited from MayaFlux::Buffers::VKBufferProcessor
Registry::Service::BufferService *	m_buffer_service = nullptr

Registry::Service::ComputeService *	m_compute_service = nullptr

Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor
ProcessingToken	m_processing_token { ProcessingToken::AUDIO_BACKEND }

Detailed Description

Definition at line 20 of file RenderProcessor.hpp.

The documentation for this class was generated from the following files:
