bind_buffer()

void MayaFlux::Buffers::ShaderProcessor::bind_buffer	(	const std::string &	descriptor_name,
		const std::shared_ptr< VKBuffer > &	buffer
	)

Bind a VKBuffer to a named shader descriptor.

Parameters

descriptor_name	Logical name (e.g., "input", "output")
buffer	VKBuffer to bind

Registers the buffer for descriptor set binding. The descriptor_name must match a key in config.bindings.

Definition at line 131 of file ShaderProcessor.cpp.

{
    if (!buffer) {
        MF_ERROR(Journal::Component::Buffers, Journal::Context::BufferProcessing,
            "Cannot bind null buffer to descriptor '{}'", descriptor_name);
        return;
    }

    ensure_initialized(buffer);

    if (m_config.bindings.find(descriptor_name) == m_config.bindings.end()) {
        uint32_t binding_index = 0;
        while (std::ranges::any_of(m_config.bindings, [binding_index](const auto& pair) {
            return pair.second.set == 1 && pair.second.binding == binding_index;
        })) {
            ++binding_index;
        }

        ShaderBinding default_binding;
        default_binding.set = 1;
        default_binding.binding = binding_index;
        default_binding.type = vk::DescriptorType::eStorageBuffer;
        m_config.bindings[descriptor_name] = default_binding;

        MF_TRACE(Journal::Component::Buffers, Journal::Context::BufferProcessing,
            "Created default binding for '{}': set={}, binding={}",
            descriptor_name, default_binding.set, default_binding.binding);
    }

    m_bound_buffers[descriptor_name] = buffer;
    m_needs_descriptor_rebuild = true;

    MF_TRACE(Journal::Component::Buffers, Journal::Context::BufferProcessing,
        "Bound buffer to descriptor '{}' (size: {} bytes)",
        descriptor_name, buffer->get_size_bytes());
}

References buffer, MayaFlux::Journal::BufferProcessing, MayaFlux::Journal::Buffers, and MF_ERROR.

Referenced by auto_bind_buffer(), MayaFlux::Buffers::DescriptorBindingsProcessor::bind_audio_buffer(), MayaFlux::Buffers::FormaBindingsProcessor::bind_descriptor(), MayaFlux::Buffers::DescriptorBindingsProcessor::bind_host_vk_buffer(), MayaFlux::Buffers::DescriptorBindingsProcessor::bind_matrix_node(), MayaFlux::Buffers::DescriptorBindingsProcessor::bind_network(), MayaFlux::Buffers::DescriptorBindingsProcessor::bind_scalar_node(), MayaFlux::Buffers::DescriptorBindingsProcessor::bind_structured_node(), MayaFlux::Buffers::DescriptorBindingsProcessor::bind_vector_node(), MayaFlux::Buffers::SDFFieldProcessor::on_attach(), MayaFlux::Buffers::SDFMeshProcessor::on_attach(), MayaFlux::Buffers::UVFieldProcessor::on_attach(), MayaFlux::Buffers::VertexFieldProcessor::on_attach(), MayaFlux::Buffers::VolumeSurfaceProcessor::on_attach(), and pump_feeds().

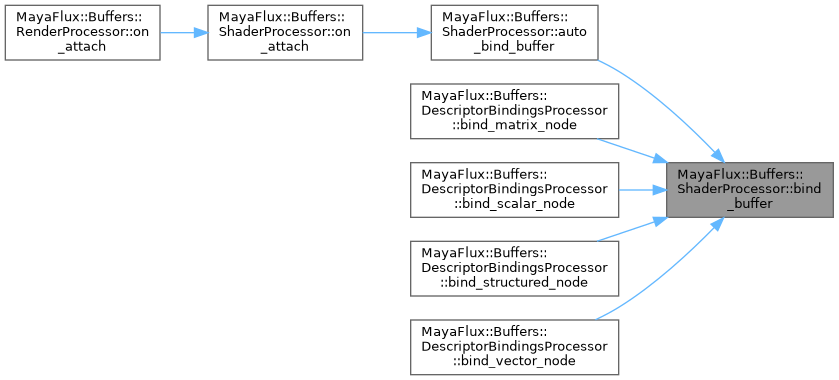

Here is the caller graph for this function:
