MayaFlux::Buffers::VKBuffer Class Reference
Vulkan-backed buffer wrapper used in processing chains. More...
#include <VKBuffer.hpp>

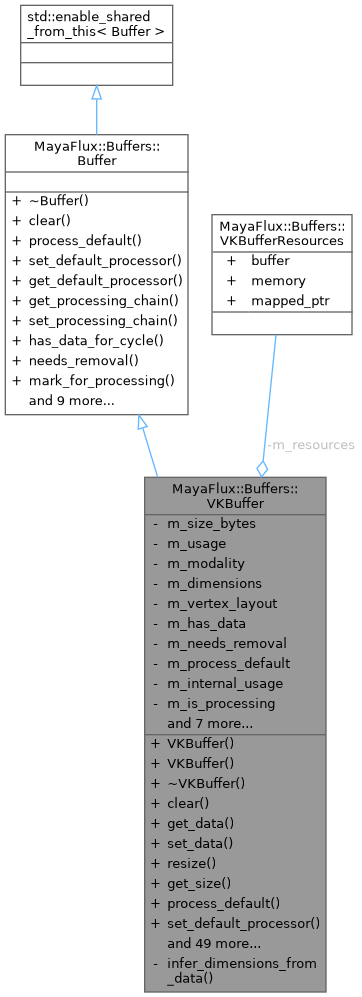

Inheritance diagram for MayaFlux::Buffers::VKBuffer: Collaboration diagram for MayaFlux::Buffers::VKBuffer:Classes | |
| struct | EngineContext |
| Engine-internal per-frame binding state. More... | |
| struct | PipelineContext |
| Context shared with BufferProcessors during pipeline execution. More... | |
Public Types | |
| using | RenderConfig = Portal::Graphics::RenderConfig |
| enum class | Usage : uint8_t { STAGING , DEVICE , COMPUTE , VERTEX , INDEX , UNIFORM , UNIFORM_BDA , STORAGE_BDA } |
Public Member Functions | |
| void | clear () override |
| Clear buffer contents. | |
| void | clear_pipeline_commands () |
| Clear all recorded commands (called after presentation) | |
| void | clear_vertex_layout () |
| Clear vertex layout. | |
| std::shared_ptr< Buffer > | clone_to (uint8_t dest_desc) override |
| Creates a clone of this buffer for a specific channel or usage enum. | |
| std::shared_ptr< VKBuffer > | clone_to (Usage usage) |
| Create a clone of this buffer with the same data and properties. | |
| void | enforce_default_processing (bool should_process) override |
| Controls whether the buffer should use default processing. | |
| void | force_internal_usage (bool internal) override |
| Set whether this buffer is for internal engine usage. | |
| std::vector< std::pair< size_t, size_t > > | get_and_clear_dirty_ranges () |
| Retrieve and clear all dirty ranges. | |
| std::vector< std::pair< size_t, size_t > > | get_and_clear_invalid_ranges () |
| Retrieve and clear all invalid ranges. | |
| vk::Buffer & | get_buffer () |
| Get VkBuffer handle (VK_NULL_HANDLE if not registered) | |
| const VKBufferResources & | get_buffer_resources () |
| Get all buffer resources at once. | |
| std::vector< Kakshya::DataVariant > | get_data () |
| Read buffer contents as Kakshya DataVariant. | |
| std::shared_ptr< Buffers::BufferProcessor > | get_default_processor () const override |
| Get the currently attached default processor. | |
| uint64_t | get_device_address () const |
| Get the Vulkan device address for this buffer (if applicable) | |
| const std::vector< Kakshya::DataDimension > & | get_dimensions () const |
| Get the inferred data dimensions for the buffer contents. | |
| EngineContext & | get_engine_context () |
| const EngineContext & | get_engine_context () const |
| vk::Format | get_format () const |
| Convert modality to a recommended VkFormat. | |
| vk::Buffer | get_index_buffer () const |
| Return the raw index buffer handle. | |
| size_t | get_index_buffer_size () const |
| Number of bytes in the index buffer. | |
| void * | get_mapped_ptr () const |
| Get mapped host pointer (nullptr if not host-visible or unmapped) | |
| vk::MemoryPropertyFlags | get_memory_properties () const |
| Get appropriate VkMemoryPropertyFlags for allocation based on Usage. | |
| Kakshya::DataModality | get_modality () const |
| Get the buffer's semantic modality. | |
| CommandBufferID | get_pipeline_command (RenderPipelineID pipeline_id) const |
| Get recorded command buffer for a pipeline. | |
| PipelineContext & | get_pipeline_context () |
| Access the pipeline context for custom metadata (non-const) | |
| const PipelineContext & | get_pipeline_context () const |
| Access the pipeline context for custom metadata (const) | |
| std::shared_ptr< Core::Window > | get_pipeline_window (RenderPipelineID id) const |
| Get the window associated with this buffer. | |
| std::shared_ptr< Buffers::BufferProcessingChain > | get_processing_chain () override |
| Access the buffer's processing chain. | |
| RenderConfig | get_render_config () const |
| Get the current render configuration. | |
| std::unordered_map< RenderPipelineID, std::shared_ptr< Core::Window > > | get_render_pipelines () const |
| Get all render pipelines associated with this buffer. | |
| virtual std::shared_ptr< RenderProcessor > | get_render_processor () const |
| Get a RenderProcessor suitable for rendering this buffer. | |
| size_t | get_size () const |
| Get current logical size in bytes. | |
| vk::DeviceSize | get_size_bytes () const |
| Usage | get_usage () const |
| Retrieve the declared usage intent. | |
| vk::BufferUsageFlags | get_usage_flags () const |
| Get appropriate VkBufferUsageFlags for creation based on Usage. | |
| std::optional< Kakshya::VertexLayout > | get_vertex_layout () const |
| Get vertex layout if set. | |
| bool | has_data_for_cycle () const override |
| Checks if the buffer has data for the current processing cycle. | |
| bool | has_index_buffer () const |
| True when an index buffer has been associated with this buffer. | |
| bool | has_render_pipeline () const |
| Check if this buffer has a rendering pipeline configured. | |
| bool | has_vertex_layout () const |
| Check if this buffer has vertex layout configured. | |
| bool | is_host_visible () const |
| Whether this VKBuffer should be host-visible. | |
| bool | is_initialized () const |
| Check whether Vulkan handles are present (buffer registered) | |
| bool | is_internal_only () const override |
| Check whether this buffer is for internal engine usage. | |
| bool | is_processing () const override |
| Query whether the buffer is currently being processed. | |
| bool | is_render_config_dirty () const |
| Check if config has changed since last frame. | |
| void | mark_dirty_range (size_t offset, size_t size) |
| Get device memory handle. | |
| void | mark_for_processing (bool has_data) override |
| Marks the buffer's data availability for the current processing cycle. | |
| void | mark_for_removal () override |
| Marks the buffer for removal from processing chains. | |
| void | mark_invalid_range (size_t offset, size_t size) |
| Mark a range as invalid (needs download) | |
| virtual void | mark_render_config_dirty (bool is_dirty=true) |
| Mark config as changed (processors will detect and react) | |
| bool | needs_default_processing () override |
| Checks if the buffer should undergo default processing. | |
| bool | needs_depth_attachment () const |
| Check if this buffer requires depth attachment for rendering. | |
| bool | needs_removal () const override |
| Checks if the buffer should be removed from processing chains. | |
| void | process_default () override |
| Run the buffer's default processor (if set and enabled) | |
| void | release_processing () override |
| Release previously acquired processing lock. | |
| void | resize (size_t new_size, bool preserve_data=false) |
| Resize buffer and recreate GPU resources if needed. | |
| void | set_buffer (vk::Buffer buffer) |
| Set VkBuffer handle after backend allocation. | |
| void | set_buffer_resources (const VKBufferResources &resources) |
| Set all buffer resources at once. | |
| void | set_data (const std::vector< Kakshya::DataVariant > &data) |
| Write data into the buffer. | |
| void | set_default_processor (const std::shared_ptr< BufferProcessor > &processor) override |
| Set the buffer's default processor. | |
| void | set_index_resources (vk::Buffer buf, vk::DeviceMemory mem, size_t size) |
| Store raw index buffer handles produced by the geometry upload path. | |
| void | set_mapped_ptr (void *ptr) |
| Set mapped host pointer (for host-visible allocations) | |
| void | set_memory (vk::DeviceMemory memory) |
| Set device memory handle after backend allocation. | |
| void | set_modality (Kakshya::DataModality modality) |
| Update the semantic modality and re-infer dimensions. | |
| void | set_needs_depth_attachment (bool needs) |
| Mark this buffer as requiring depth testing when rendered. | |
| void | set_pipeline_command (RenderPipelineID pipeline_id, CommandBufferID cmd_id) |
| Store recorded command buffer for a pipeline. | |
| void | set_pipeline_window (RenderPipelineID id, const std::shared_ptr< Core::Window > &window) |
| Associate this buffer with a window for rendering. | |
| void | set_processing_chain (const std::shared_ptr< BufferProcessingChain > &chain, bool force=false) override |
| Replace the buffer's processing chain. | |
| virtual void | set_render_config (const RenderConfig &config) |
| Update the render configuration and mark as dirty. | |
| void | set_vertex_layout (const Kakshya::VertexLayout &layout) |
| Set vertex layout for this buffer. | |
| virtual void | setup_processors (ProcessingToken token) |
| Setup processors with a processing token. | |
| bool | try_acquire_processing () override |
| Try to acquire processing lock for this buffer. | |
| VKBuffer ()=default | |
| VKBuffer (size_t size_bytes, Usage usage, Kakshya::DataModality modality) | |
| Construct an unregistered VKBuffer. | |
| ~VKBuffer () override | |
| Virtual destructor. | |
| Public Member Functions inherited from MayaFlux::Buffers::Buffer | |
| virtual | ~Buffer ()=default |
| Virtual destructor for proper resource management. | |
Protected Member Functions | |
| void | set_default_render_config (const RenderConfig &config) |
| Called by derived classes to set their context-specific defaults. | |
Protected Attributes | |
| RenderConfig | m_render_config |
| bool | m_render_config_dirty {} |
Private Member Functions | |
| void | infer_dimensions_from_data (size_t byte_count) |
| Infer Kakshya::DataDimension entries from a given byte count. | |
Private Attributes | |
| std::shared_ptr< Buffers::BufferProcessor > | m_default_processor |
| std::vector< Kakshya::DataDimension > | m_dimensions |
| std::vector< std::pair< size_t, size_t > > | m_dirty_ranges |
| EngineContext | m_engine_context |
| bool | m_has_data { true } |
| bool | m_internal_usage {} |
| std::vector< std::pair< size_t, size_t > > | m_invalid_ranges |
| std::atomic< bool > | m_is_processing |
| Kakshya::DataModality | m_modality |
| bool | m_needs_depth {} |
| bool | m_needs_removal {} |
| std::unordered_map< RenderPipelineID, CommandBufferID > | m_pipeline_commands |
| PipelineContext | m_pipeline_context |
| bool | m_process_default { true } |
| std::shared_ptr< Buffers::BufferProcessingChain > | m_processing_chain |
| ProcessingToken | m_processing_token |
| VKBufferResources | m_resources |
| size_t | m_size_bytes {} |
| Usage | m_usage {} |
| std::optional< Kakshya::VertexLayout > | m_vertex_layout |
| std::unordered_map< RenderPipelineID, std::shared_ptr< Core::Window > > | m_window_pipelines |
Detailed Description
Vulkan-backed buffer wrapper used in processing chains.
VKBuffer is a lightweight, high-level representation of a GPU buffer used by the MayaFlux processing pipeline. It carries semantic metadata (Kakshya modalities and dimensions), integrates with the Buffer processing chain and BufferManager, and exposes Vulkan handles once the backend registers the buffer. Prior to registration the object contains no GPU resources and can be manipulated cheaply (like AudioBuffer).
Responsibilities:
- Store buffer size, usage intent and semantic modality
- Provide inferred data dimensions for processors and pipeline inspection
- Hold Vulkan handles (VkBuffer, VkDeviceMemory) assigned by graphics backend
- Provide convenience helpers for common Vulkan creation flags and memory props
- Integrate with BufferProcessor / BufferProcessingChain for default processing
Note: Actual allocation, mapping and command-based transfers are performed by the graphics backend / BufferManager. VKBuffer only stores handles and metadata and provides helpers for processors to operate on it.
Definition at line 67 of file VKBuffer.hpp.
