MayaFlux::Buffers::ShaderProcessor Class Reference

Generic compute shader processor for VKBuffers. More...

#include <ShaderProcessor.hpp>

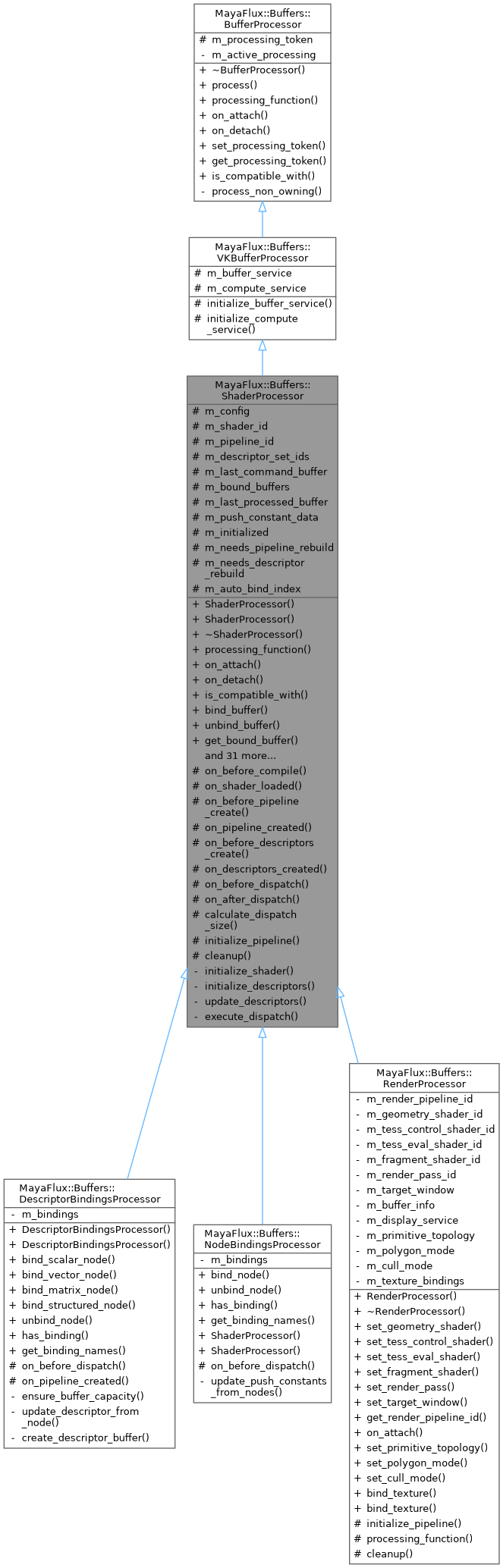

+ Inheritance diagram for MayaFlux::Buffers::ShaderProcessor:

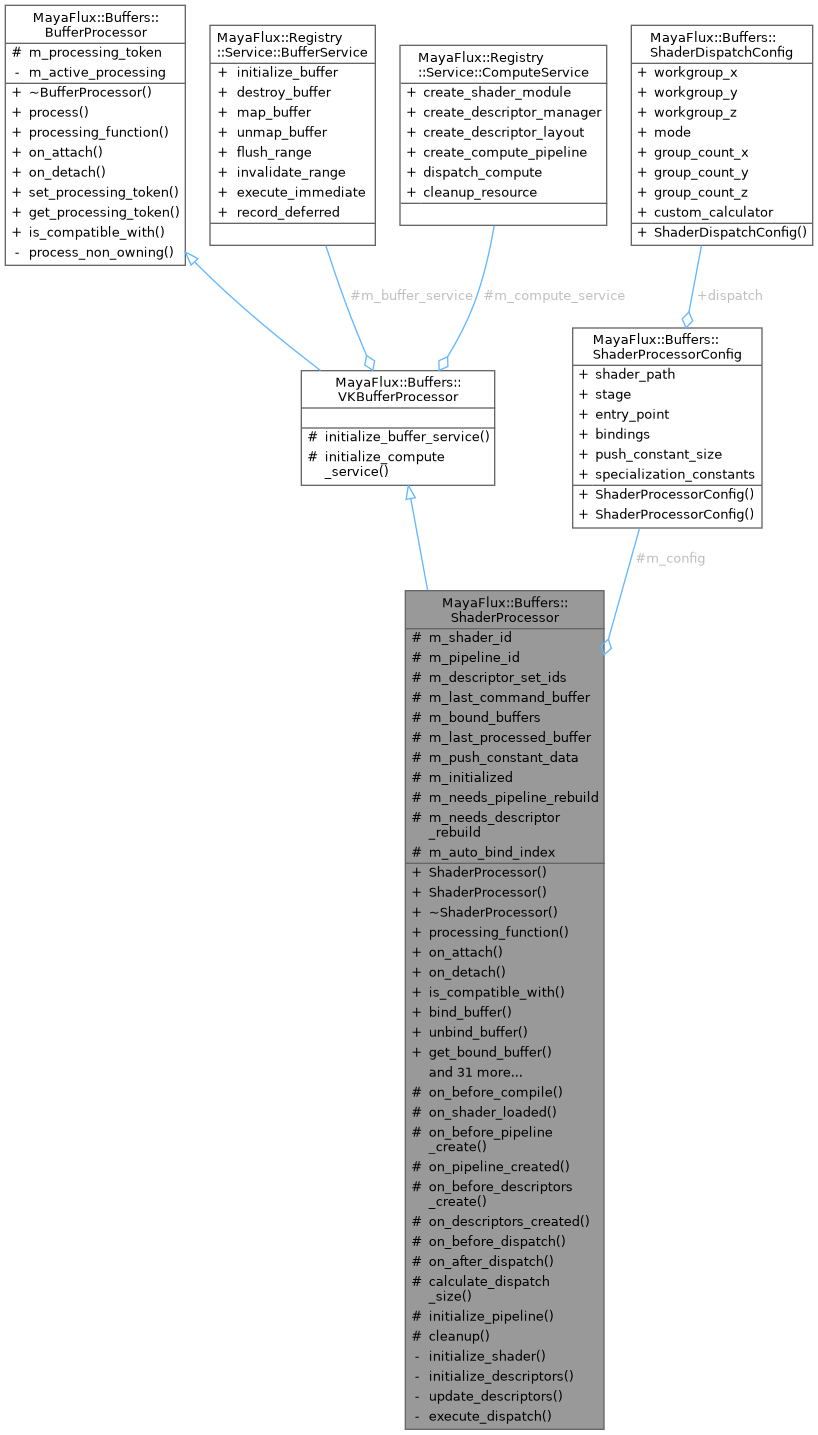

+ Collaboration diagram for MayaFlux::Buffers::ShaderProcessor:

Public Types

enum class  BufferUsageHint : uint8_t { NONE = 0 , INPUT_READ = 1 << 0 , OUTPUT_WRITE = 1 << 1 , BIDIRECTIONAL = INPUT_READ | OUTPUT_WRITE }
 Get buffer usage characteristics needed for safe data flow. More...


Public Member Functions

 ShaderProcessor (const std::string &shader_path, uint32_t workgroup_x=256)
 Construct processor with shader path.

 ShaderProcessor (ShaderProcessorConfig config)
 Construct processor with full configuration.

 ~ShaderProcessor () override

void processing_function (std::shared_ptr< Buffer > buffer) override
 The core processing function that must be implemented by derived classes.

void on_attach (std::shared_ptr< Buffer > buffer) override
 Called when this processor is attached to a buffer.

void on_detach (std::shared_ptr< Buffer > buffer) override
 Called when this processor is detached from a buffer.

bool is_compatible_with (std::shared_ptr< Buffer > buffer) const override
 Checks if this processor can handle the specified buffer type.

void bind_buffer (const std::string &descriptor_name, const std::shared_ptr< VKBuffer > &buffer)
 Bind a VKBuffer to a named shader descriptor.

void unbind_buffer (const std::string &descriptor_name)
 Unbind a buffer from a descriptor.

std::shared_ptr< VKBuffer > get_bound_buffer (const std::string &descriptor_name) const
 Get bound buffer for a descriptor name.

void auto_bind_buffer (const std::shared_ptr< VKBuffer > &buffer)
 Auto-bind buffer based on attachment order.

bool hot_reload_shader ()
 Hot-reload shader from ShaderFoundry.

void set_shader (const std::string &shader_path)
 Update shader path and reload.

const std::string & get_shader_path () const
 Get current shader path.

void set_workgroup_size (uint32_t x, uint32_t y=1, uint32_t z=1)
 Set workgroup size (should match shader local_size)

void set_dispatch_mode (ShaderDispatchConfig::DispatchMode mode)
 Set dispatch mode.

void set_manual_dispatch (uint32_t x, uint32_t y=1, uint32_t z=1)
 Set manual dispatch group counts.

void set_custom_dispatch (std::function< std::array< uint32_t, 3 >(const std::shared_ptr< VKBuffer > &)> calculator)
 Set custom dispatch calculator.

const ShaderDispatchConfig & get_dispatch_config () const
 Get current dispatch configuration.

void set_push_constant_size (size_t size)
 Set push constant size.

template<typename T >
void set_push_constant_size ()
 Set push constant size from type.

template<typename T >
void set_push_constant_data (const T &data)
 Update push constant data (type-safe)

void set_push_constant_data_raw (const void *data, size_t size)
 Update push constant data (raw bytes)

const std::vector< uint8_t > & get_push_constant_data () const
 Get current push constant data.

std::vector< uint8_t > & get_push_constant_data ()

void set_specialization_constant (uint32_t constant_id, uint32_t value)
 Set specialization constant.

void clear_specialization_constants ()
 Clear all specialization constants.

void set_config (const ShaderProcessorConfig &config)
 Update entire configuration.

const ShaderProcessorConfig & get_config () const
 Get current configuration.

void add_binding (const std::string &descriptor_name, const ShaderBinding &binding)
 Add descriptor binding configuration.

virtual BufferUsageHint get_buffer_usage_hint (const std::string &descriptor_name) const
 Get buffer usage hint for a descriptor.

virtual bool is_in_place_operation (const std::string &descriptor_name) const
 Check if shader modifies a specific buffer in-place.

bool has_binding (const std::string &descriptor_name) const
 Check if a descriptor binding exists.

std::vector< std::string > get_binding_names () const
 Get all configured descriptor names.

bool are_bindings_complete () const
 Check if all required bindings are satisfied.

bool is_shader_loaded () const
 Check if shader is loaded.

bool is_pipeline_ready () const
 Check if pipeline is created.

bool are_descriptors_ready () const
 Check if descriptors are initialized.

size_t get_bound_buffer_count () const
 Get number of bound buffers.

virtual std::shared_ptr< VKBuffer > get_output_buffer () const
 Get the output buffer after compute dispatch.

virtual bool has_executed () const
 Check if compute has been executed at least once.

- Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor
virtual ~BufferProcessor ()=default
 Virtual destructor for proper cleanup of derived classes.

void process (std::shared_ptr< Buffer > buffer)
 Applies a computational transformation to the data in the provided buffer.

virtual void set_processing_token (ProcessingToken token)
 Gets the preferred processing backend for this processor.

virtual ProcessingToken get_processing_token () const
 Gets the current processing token for this buffer.


Protected Member Functions

virtual void on_before_compile (const std::string &shader_path)
 Called before shader compilation.

virtual void on_shader_loaded (Portal::Graphics::ShaderID shader_id)
 Called after shader is loaded.

virtual void on_before_pipeline_create (Portal::Graphics::ComputePipelineID pipeline_id)
 Called before pipeline creation.

virtual void on_pipeline_created (Portal::Graphics::ComputePipelineID pipeline_id)
 Called after pipeline is created.

virtual void on_before_descriptors_create ()
 Called before descriptor sets are created.

virtual void on_descriptors_created ()
 Called after descriptor sets are created.

virtual void on_before_dispatch (Portal::Graphics::CommandBufferID cmd_id, const std::shared_ptr< VKBuffer > &buffer)
 Called before each dispatch.

virtual void on_after_dispatch (Portal::Graphics::CommandBufferID cmd_id, const std::shared_ptr< VKBuffer > &buffer)
 Called after each dispatch.

virtual std::array< uint32_t, 3 > calculate_dispatch_size (const std::shared_ptr< VKBuffer > &buffer)
 Calculate dispatch size from buffer.

virtual void initialize_pipeline (const std::shared_ptr< Buffer > &buffer)

virtual void cleanup ()

- Protected Member Functions inherited from MayaFlux::Buffers::VKBufferProcessor
void initialize_buffer_service ()

void initialize_compute_service ()


Protected Attributes

ShaderProcessorConfig m_config

Portal::Graphics::ShaderID m_shader_id = Portal::Graphics::INVALID_SHADER

Portal::Graphics::ComputePipelineID m_pipeline_id = Portal::Graphics::INVALID_COMPUTE_PIPELINE

std::vector< Portal::Graphics::DescriptorSetID > m_descriptor_set_ids

Portal::Graphics::CommandBufferID m_last_command_buffer = Portal::Graphics::INVALID_COMMAND_BUFFER

std::unordered_map< std::string, std::shared_ptr< VKBuffer > > m_bound_buffers

std::shared_ptr< VKBuffer > m_last_processed_buffer

std::vector< uint8_t > m_push_constant_data

bool m_initialized {}

bool m_needs_pipeline_rebuild = true

bool m_needs_descriptor_rebuild = true

size_t m_auto_bind_index {}

- Protected Attributes inherited from MayaFlux::Buffers::VKBufferProcessor
Registry::Service::BufferService * m_buffer_service = nullptr

Registry::Service::ComputeService * m_compute_service = nullptr

- Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor
ProcessingToken m_processing_token { ProcessingToken::AUDIO_BACKEND }


Private Member Functions

void initialize_shader ()

void initialize_descriptors ()

void update_descriptors ()

void execute_dispatch (const std::shared_ptr< VKBuffer > &buffer)


Detailed Description

Generic compute shader processor for VKBuffers.

ShaderProcessor is a fully functional base class that:

  • Loads compute shaders via Portal::Graphics::ShaderFoundry
  • Automatically creates compute pipelines and descriptor sets
  • Binds VKBuffers to shader descriptors with configurable mappings
  • Dispatches compute shaders with flexible workgroup calculation
  • Supports hot-reload via ShaderFoundry caching
  • Handles push constants and specialization constants

Quality-of-life features:

  • Data movement hints: Query buffer usage (input/output/in-place) for automation and validation.
  • Binding introspection: Check if bindings exist, list expected bindings, and validate binding completeness.
  • State queries: Track last processed buffer and command buffer for chain management and debugging.

Design Philosophy:

  • Fully usable as-is: Not just a base class, but a complete processor
  • Inheritance-friendly: Specialized processors can override behavior
  • Buffer-agnostic: Works with any VKBuffer modality/usage
  • Flexible binding: Map buffers to shader descriptors by name
  • GPU-efficient: Uses device-local buffers and staging where needed

Integration:

  • Uses Portal::Graphics::ShaderFoundry for shader compilation
  • Leverages VKComputePipeline for execution
  • Works with existing BufferManager/ProcessingChain architecture
  • Compatible with all VKBuffer usage types (COMPUTE, STORAGE, etc.)

Usage: // Simple usage - single buffer processor auto processor = std::make_shared<ShaderProcessor>("shaders/kernel.comp"); processor->bind_buffer("input_buffer", my_buffer); my_buffer->set_default_processor(processor);

// Advanced - multi-buffer with explicit bindings ShaderProcessorConfig config("shaders/complex.comp"); config.bindings["input"] = ShaderBinding(0, 0); config.bindings["output"] = ShaderBinding(0, 1); config.dispatch.workgroup_x = 512;

auto processor = std::make_shared<ShaderProcessor>(config); processor->bind_buffer("input", input_buffer); processor->bind_buffer("output", output_buffer);

chain->add_processor(processor, input_buffer); chain->add_processor(processor, output_buffer);

// With push constants struct Params { float scale; uint32_t iterations; }; processor->set_push_constant_size<Params>(); processor->set_push_constant_data(Params{2.0f, 100});

Specialized Processors: class FFTProcessor : public ShaderProcessor { FFTProcessor() : ShaderProcessor("shaders/fft.comp") { configure_fft_bindings(); }

void on_attach(std::shared_ptr<Buffer> buffer) override { ShaderProcessor::on_attach(buffer); // FFT-specific setup } };

Definition at line 143 of file ShaderProcessor.hpp.
