MayaFlux::Core::VKImage Class Reference
Lightweight Vulkan image wrapper for MayaFlux processing pipeline. More...
#include <VKImage.hpp>

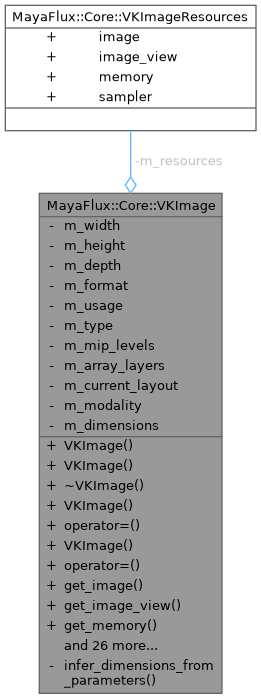

Collaboration diagram for MayaFlux::Core::VKImage:
Public Types | |
| enum class | Usage : uint8_t { TEXTURE_2D , RENDER_TARGET , DEPTH_STENCIL , STORAGE , TRANSFER_SRC , TRANSFER_DST , STAGING } |
| enum class | Type : uint8_t { TYPE_1D , TYPE_2D , TYPE_3D , TYPE_CUBE } |
Public Member Functions | |
| VKImage (uint32_t width, uint32_t height, uint32_t depth, vk::Format format, Usage usage, Type type=Type::TYPE_2D, uint32_t mip_levels=1, uint32_t array_layers=1, Kakshya::DataModality modality=Kakshya::DataModality::IMAGE_COLOR) | |
| Construct an uninitialized VKImage. | |
| VKImage ()=default | |
| ~VKImage ()=default | |
| VKImage (const VKImage &)=delete | |
| VKImage & | operator= (const VKImage &)=delete |
| VKImage (VKImage &&) noexcept=default | |
| VKImage & | operator= (VKImage &&) noexcept=default |
| vk::Image | get_image () const |
| Get VkImage handle (VK_NULL_HANDLE if not initialized) | |
| vk::ImageView | get_image_view () const |
| Get VkImageView handle (VK_NULL_HANDLE if not initialized) | |
| vk::DeviceMemory | get_memory () const |
| Get VkDeviceMemory handle (VK_NULL_HANDLE if not initialized) | |
| vk::Sampler | get_sampler () const |
| Get VkSampler handle (VK_NULL_HANDLE if none assigned) | |
| const VKImageResources & | get_image_resources () const |
| Get all image resources at once. | |
| void | set_image (vk::Image image) |
| Set VkImage handle after backend allocation. | |
| void | set_image_view (vk::ImageView view) |
| Set VkImageView handle after backend allocation. | |
| void | set_memory (vk::DeviceMemory memory) |
| Set VkDeviceMemory handle after backend allocation. | |
| void | set_sampler (vk::Sampler sampler) |
| Set VkSampler handle (optional) | |
| void | set_image_resources (const VKImageResources &resources) |
| Set all image resources at once. | |
| bool | is_initialized () const |
| Check whether Vulkan handles are present (image registered) | |
| uint32_t | get_width () const |
| uint32_t | get_height () const |
| uint32_t | get_depth () const |
| vk::Format | get_format () const |
| Usage | get_usage () const |
| Type | get_type () const |
| uint32_t | get_mip_levels () const |
| uint32_t | get_array_layers () const |
| Kakshya::DataModality | get_modality () const |
| const std::vector< Kakshya::DataDimension > & | get_dimensions () const |
| Get the inferred data dimensions for the image contents. | |
| void | set_modality (Kakshya::DataModality modality) |
| Update the semantic modality and re-infer dimensions. | |
| vk::ImageLayout | get_current_layout () const |
| Get current image layout (for synchronization) | |
| void | set_current_layout (vk::ImageLayout layout) |
| Set current layout (called after transitions) | |
| vk::ImageUsageFlags | get_usage_flags () const |
| Get appropriate VkImageUsageFlags based on Usage. | |
| vk::MemoryPropertyFlags | get_memory_properties () const |
| Get appropriate VkMemoryPropertyFlags based on Usage. | |
| vk::ImageAspectFlags | get_aspect_flags () const |
| Get appropriate VkImageAspectFlags based on format. | |
| bool | is_host_visible () const |
| Whether this image should be host-visible (staging images) | |
| size_t | get_size_bytes () const |
| Get total size in bytes (for memory allocation) | |
Private Member Functions | |
| void | infer_dimensions_from_parameters () |
| Infer Kakshya::DataDimension entries from image parameters. | |
Private Attributes | |
| VKImageResources | m_resources |
| uint32_t | m_width { 0 } |
| uint32_t | m_height { 0 } |
| uint32_t | m_depth { 1 } |
| vk::Format | m_format { vk::Format::eUndefined } |
| Usage | m_usage { Usage::TEXTURE_2D } |
| Type | m_type { Type::TYPE_2D } |
| uint32_t | m_mip_levels { 1 } |
| uint32_t | m_array_layers { 1 } |
| vk::ImageLayout | m_current_layout { vk::ImageLayout::eUndefined } |
| Kakshya::DataModality | m_modality |
| std::vector< Kakshya::DataDimension > | m_dimensions |
Detailed Description
Lightweight Vulkan image wrapper for MayaFlux processing pipeline.
VKImage is a backend-level representation of a GPU image/texture. Like VKBuffer, it is a semantic container that stores metadata and Vulkan handles but does not perform allocation itself. The backend (VulkanBackend) handles actual resource creation via BufferService-style patterns.
Responsibilities:
- Store image dimensions, format, usage intent, and semantic modality
- Provide inferred data dimensions for processors and pipeline inspection
- Hold Vulkan handles (VkImage, VkImageView, VkDeviceMemory) assigned by backend
- Provide convenience helpers for Vulkan creation flags and memory properties
- Track current layout for automatic layout transitions
Does NOT handle:
- Actual Vulkan allocation (that's VulkanBackend)
- Layout transitions (that's command buffer operations)
- Descriptor set binding (that's VKDescriptorManager)
Integration points:
- Created by Portal::Graphics::TextureLoom
- Allocated by VulkanBackend::initialize_image()
- Wrapped by Kakshya::Visual::TextureStream (future)
- Used by Yantra::Graphics::RenderPipeline (future)
Definition at line 49 of file VKImage.hpp.
