MayaFlux::Portal::Graphics::ShaderFoundry Class Reference

Portal-level shader compilation and caching. More...

#include <ShaderFoundry.hpp>

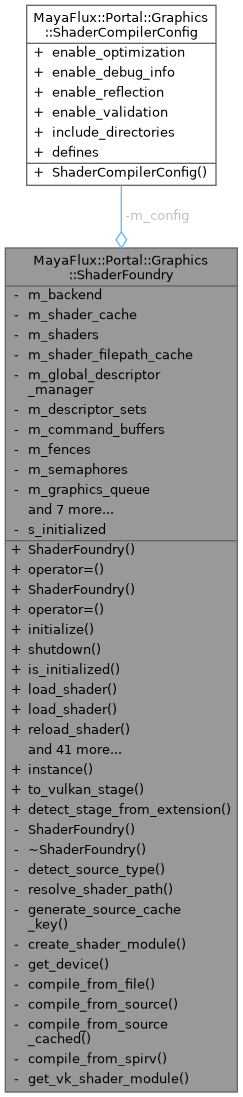

Collaboration diagram for MayaFlux::Portal::Graphics::ShaderFoundry:

Classes
struct	CommandBufferState
struct	DescriptorSetState
struct	FenceState
struct	SemaphoreState
struct	ShaderState
struct	TimestampResult

Public Types
enum class	CommandBufferType : uint8_t { GRAPHICS , COMPUTE , TRANSFER }

Public Member Functions
	ShaderFoundry (const ShaderFoundry &)=delete
ShaderFoundry &	operator= (const ShaderFoundry &)=delete
	ShaderFoundry (ShaderFoundry &&) noexcept=delete
ShaderFoundry &	operator= (ShaderFoundry &&) noexcept=delete
bool	initialize (const std::shared_ptr< Core::VulkanBackend > &backend, const ShaderCompilerConfig &config={})
	Initialize shader compiler.
void	shutdown ()
	Shutdown and cleanup.
bool	is_initialized () const
	Check if compiler is initialized.
ShaderID	load_shader (const std::string &content, std::optional< ShaderStage > stage=std::nullopt, const std::string &entry_point="main")
	Universal shader loader - auto-detects source type.
ShaderID	load_shader (const ShaderSource &source)
	Load shader from explicit ShaderSource descriptor.
ShaderID	reload_shader (const std::string &filepath)
	Hot-reload shader (returns new ID)
void	destroy_shader (ShaderID shader_id)
	Destroy shader (cleanup internal state)
std::shared_ptr< Core::VKShaderModule >	compile (const ShaderSource &shader_source)
	Compile shader from ShaderSource descriptor.
ShaderReflectionInfo	get_shader_reflection (ShaderID shader_id)
	Get reflection info for compiled shader.
ShaderStage	get_shader_stage (ShaderID shader_id)
	Get shader stage for compiled shader.
std::string	get_shader_entry_point (ShaderID shader_id)
	Get entry point name for compiled shader.
void	invalidate_cache (const std::string &cache_key)
	Invalidate cache for specific shader.
void	clear_cache ()
	Invalidate entire shader cache.
std::shared_ptr< Core::VKShaderModule >	hot_reload (const std::string &filepath)
	Hot-reload a shader from file.
void	set_config (const ShaderCompilerConfig &config)
	Update compiler configuration.
const ShaderCompilerConfig &	get_config () const
	Get current compiler configuration.
void	add_include_directory (const std::string &directory)
	Add include directory for shader compilation.
void	add_define (const std::string &name, const std::string &value="")
	Add preprocessor define for shader compilation.
bool	is_cached (const std::string &cache_key) const
	Check if shader is cached.
std::vector< std::string >	get_cached_keys () const
	Get all cached shader keys.
size_t	get_cache_size () const
	Get number of cached shaders.
DescriptorSetID	allocate_descriptor_set (vk::DescriptorSetLayout layout)
	Allocate descriptor set for a pipeline.
void	update_descriptor_buffer (DescriptorSetID descriptor_set_id, uint32_t binding, vk::DescriptorType type, vk::Buffer buffer, size_t offset, size_t size)
	Update descriptor set with buffer binding.
void	update_descriptor_image (DescriptorSetID descriptor_set_id, uint32_t binding, vk::ImageView image_view, vk::Sampler sampler, vk::ImageLayout layout=vk::ImageLayout::eShaderReadOnlyOptimal)
	Update descriptor set with image binding.
void	update_descriptor_storage_image (DescriptorSetID descriptor_set_id, uint32_t binding, vk::ImageView image_view, vk::ImageLayout layout=vk::ImageLayout::eGeneral)
	Update descriptor set with storage image binding.
vk::DescriptorSet	get_descriptor_set (DescriptorSetID descriptor_set_id)
	Get Vulkan descriptor set handle from DescriptorSetID.
CommandBufferID	begin_commands (CommandBufferType type)
	Begin recording command buffer.
vk::CommandBuffer	get_command_buffer (CommandBufferID cmd_id)
	Get Vulkan command buffer handle from CommandBufferID.
void	submit_and_wait (CommandBufferID cmd_id)
	Submit command buffer and wait for completion.
FenceID	submit_async (CommandBufferID cmd_id)
	Submit command buffer asynchronously, returning a fence.
SemaphoreID	submit_with_signal (CommandBufferID cmd_id)
	Submit command buffer asynchronously, returning a semaphore.
void	wait_for_fence (FenceID fence_id)
	Wait for fence to be signaled.
void	wait_for_fences (const std::vector< FenceID > &fence_ids)
	Wait for multiple fences to be signaled.
bool	is_fence_signaled (FenceID fence_id)
	Check if fence is signaled.
CommandBufferID	begin_commands_with_wait (CommandBufferType type, SemaphoreID wait_semaphore, vk::PipelineStageFlags wait_stage)
	Begin command buffer that waits on a semaphore.
vk::Semaphore	get_semaphore_handle (SemaphoreID semaphore_id)
	Get Vulkan fence handle from FenceID.
void	buffer_barrier (CommandBufferID cmd_id, vk::Buffer buffer, vk::AccessFlags src_access, vk::AccessFlags dst_access, vk::PipelineStageFlags src_stage, vk::PipelineStageFlags dst_stage)
	Insert buffer memory barrier.
void	image_barrier (CommandBufferID cmd_id, vk::Image image, vk::ImageLayout old_layout, vk::ImageLayout new_layout, vk::AccessFlags src_access, vk::AccessFlags dst_access, vk::PipelineStageFlags src_stage, vk::PipelineStageFlags dst_stage)
	Insert image memory barrier.
void	set_graphics_queue (vk::Queue queue)
	Set Vulkan queues for command submission.
void	set_compute_queue (vk::Queue queue)
	Set Vulkan queues for command submission.
void	set_transfer_queue (vk::Queue queue)
	Set Vulkan queues for command submission.
vk::Queue	get_graphics_queue () const
	Get Vulkan graphics queue.
vk::Queue	get_compute_queue () const
	Get Vulkan compute queue.
vk::Queue	get_transfer_queue () const
	Get Vulkan transfer queue.
void	begin_timestamp (CommandBufferID cmd_id, const std::string &label="")
void	end_timestamp (CommandBufferID cmd_id, const std::string &label="")
TimestampResult	get_timestamp_result (CommandBufferID cmd_id, const std::string &label)

Static Public Member Functions
static ShaderFoundry &	instance ()
static vk::ShaderStageFlagBits	to_vulkan_stage (ShaderStage stage)
	Convert Portal ShaderStage to Vulkan ShaderStageFlagBits.
static std::optional< ShaderStage >	detect_stage_from_extension (const std::string &filepath)
	Auto-detect shader stage from file extension.

Private Types
enum class	DetectedSourceType : uint8_t { FILE_GLSL , FILE_SPIRV , SOURCE_STRING , UNKNOWN }
	Internal enum for source type detection. More...

Private Member Functions
	ShaderFoundry ()=default
	~ShaderFoundry ()
DetectedSourceType	detect_source_type (const std::string &content) const
std::optional< std::filesystem::path >	resolve_shader_path (const std::string &filepath) const
std::string	generate_source_cache_key (const std::string &source, ShaderStage stage) const
std::shared_ptr< Core::VKShaderModule >	create_shader_module ()
vk::Device	get_device () const
std::shared_ptr< Core::VKShaderModule >	compile_from_file (const std::string &filepath, std::optional< ShaderStage > stage=std::nullopt, const std::string &entry_point="main")
std::shared_ptr< Core::VKShaderModule >	compile_from_source (const std::string &source, ShaderStage stage, const std::string &entry_point="main")
std::shared_ptr< Core::VKShaderModule >	compile_from_source_cached (const std::string &source, ShaderStage stage, const std::string &cache_key, const std::string &entry_point="main")
std::shared_ptr< Core::VKShaderModule >	compile_from_spirv (const std::string &spirv_path, ShaderStage stage, const std::string &entry_point="main")
std::shared_ptr< Core::VKShaderModule >	get_vk_shader_module (ShaderID shader_id)

Private Attributes
std::shared_ptr< Core::VulkanBackend >	m_backend
ShaderCompilerConfig	m_config
std::unordered_map< std::string, std::shared_ptr< Core::VKShaderModule > >	m_shader_cache
std::unordered_map< ShaderID, ShaderState >	m_shaders
std::unordered_map< std::string, ShaderID >	m_shader_filepath_cache
std::shared_ptr< Core::VKDescriptorManager >	m_global_descriptor_manager
std::unordered_map< DescriptorSetID, DescriptorSetState >	m_descriptor_sets
std::unordered_map< CommandBufferID, CommandBufferState >	m_command_buffers
std::unordered_map< FenceID, FenceState >	m_fences
std::unordered_map< SemaphoreID, SemaphoreState >	m_semaphores
vk::Queue	m_graphics_queue
vk::Queue	m_compute_queue
vk::Queue	m_transfer_queue
std::atomic< uint64_t >	m_next_shader_id { 1 }
std::atomic< uint64_t >	m_next_descriptor_set_id { 1 }
std::atomic< uint64_t >	m_next_command_id { 1 }
std::atomic< uint64_t >	m_next_fence_id { 1 }
std::atomic< uint64_t >	m_next_semaphore_id { 1 }

Static Private Attributes
static bool	s_initialized = false

Friends
class	ComputePress
class	RenderFlow

Detailed Description

Portal-level shader compilation and caching.

ShaderFoundry is a thin glue layer that:

• Wraps Core::VKShaderModule for convenient shader creation
• Provides caching to avoid redundant compilation
• Supports hot-reload workflows (watch files, recompile)
• Returns VKShaderModule directly for use in pipelines

Design Philosophy:

• Manages compilation, NOT execution (that's Pipeline/Compute)
• Returns VKShaderModule directly (no wrapping)
• Simple, focused API aligned with VKShaderModule capabilities
• Integrates with existing Core shader infrastructure

Consumers:

• VKBufferProcessor subclasses (compute shaders)
• Future Yantra::ComputePipeline (compute shaders)
• Future Yantra::RenderPipeline (graphics shaders)
• Future DataProcessors (image processing shaders)

Usage: auto& compiler = Portal::Graphics::ShaderFoundry::instance();

// Compile from file auto shader = compiler.compile_from_file("shaders/my_kernel.comp");

// Compile from string auto shader = compiler.compile_from_source(glsl_code, ShaderStage::COMPUTE);

// Use in pipeline my_buffer_processor->set_shader(shader); my_compute_pipeline->set_shader(shader);

Definition at line 156 of file ShaderFoundry.hpp.

---

The documentation for this class was generated from the following files:

• ShaderFoundry.hpp
• ShaderFoundry.cpp
