MayaFlux::Core::VKDescriptorManager Class Reference

Manages descriptor pools, layouts, and set allocation. More...

#include <VKDescriptorManager.hpp>

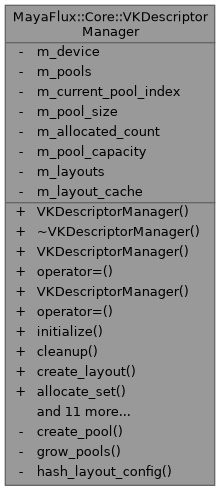

Collaboration diagram for MayaFlux::Core::VKDescriptorManager:

Public Member Functions
	VKDescriptorManager ()=default
	~VKDescriptorManager ()
	VKDescriptorManager (const VKDescriptorManager &)=delete
VKDescriptorManager &	operator= (const VKDescriptorManager &)=delete
	VKDescriptorManager (VKDescriptorManager &&) noexcept
VKDescriptorManager &	operator= (VKDescriptorManager &&) noexcept
bool	initialize (vk::Device device, uint32_t initial_pool_size=1024)
	Initialize descriptor manager.
void	cleanup (vk::Device device)
	Cleanup all descriptor resources.
vk::DescriptorSetLayout	create_layout (vk::Device device, const DescriptorSetLayoutConfig &config)
	Create descriptor set layout from configuration.
vk::DescriptorSet	allocate_set (vk::Device device, vk::DescriptorSetLayout layout)
	Allocate a descriptor set from the pool.
void	update_buffer (vk::Device device, vk::DescriptorSet set, uint32_t binding, vk::Buffer buffer, vk::DeviceSize offset=0, vk::DeviceSize range=VK_WHOLE_SIZE)
	Update descriptor set with buffer binding.
void	update_image (vk::Device device, vk::DescriptorSet set, uint32_t binding, vk::ImageView image_view, vk::Sampler sampler=nullptr, vk::ImageLayout layout=vk::ImageLayout::eGeneral)
	Update descriptor set with image binding.
void	update_sampler (vk::Device device, vk::DescriptorSet set, uint32_t binding, vk::Sampler sampler)
	Update descriptor set with sampler binding.
void	update_combined_image_sampler (vk::Device device, vk::DescriptorSet set, uint32_t binding, vk::ImageView image_view, vk::Sampler sampler, vk::ImageLayout layout=vk::ImageLayout::eShaderReadOnlyOptimal)
	Update descriptor set with combined image+sampler.
void	update_input_attachment (vk::Device device, vk::DescriptorSet set, uint32_t binding, vk::ImageView image_view, vk::ImageLayout layout=vk::ImageLayout::eShaderReadOnlyOptimal)
	Update descriptor set with input attachment.
DescriptorUpdateBatch	begin_batch (vk::Device device, vk::DescriptorSet set)
	Begin a batch descriptor update.
void	copy_descriptor_set (vk::Device device, vk::DescriptorSet src, vk::DescriptorSet dst, uint32_t copy_count=0)
	Copy descriptor set contents.
std::vector< vk::DescriptorSet >	allocate_sets (vk::Device device, const std::vector< vk::DescriptorSetLayout > &layouts)
	Allocate multiple descriptor sets at once.
void	batch_update (vk::Device device, const std::vector< vk::WriteDescriptorSet > &writes)
	Batch update multiple bindings at once.
void	reset_pools (vk::Device device)
	Reset all descriptor pools.
std::pair< uint32_t, uint32_t >	get_pool_stats () const
	Get current pool utilization.

Private Member Functions
vk::DescriptorPool	create_pool (vk::Device device, uint32_t max_sets)
	Create a new descriptor pool.
bool	grow_pools (vk::Device device)
	Grow pool capacity by allocating new pool.
size_t	hash_layout_config (const DescriptorSetLayoutConfig &config) const
	Compute hash of descriptor set layout config.

Private Attributes
vk::Device	m_device = nullptr
std::vector< vk::DescriptorPool >	m_pools
size_t	m_current_pool_index = 0
uint32_t	m_pool_size = 1024
	Sets per pool.
uint32_t	m_allocated_count = 0
	Total allocated sets.
uint32_t	m_pool_capacity = 0
	Total capacity across all pools.
std::vector< vk::DescriptorSetLayout >	m_layouts
std::unordered_map< size_t, size_t >	m_layout_cache

Detailed Description

Manages descriptor pools, layouts, and set allocation.

Responsibilities:

• Create descriptor set layouts from bindings
• Allocate descriptor pools
• Allocate descriptor sets from pools
• Update descriptor sets (bind buffers/images)
• Handle pool exhaustion and growth

Does NOT handle:

• Pipeline creation (that's VKComputePipeline)
• Command buffer recording (that's VKCommandManager)
• Buffer/image creation (that's VKBuffer/VKImage)

Design:

• One manager per logical context (e.g., per VulkanBackend)
• Pools grow automatically when exhausted
• Layouts are cached by configuration

Definition at line 131 of file VKDescriptorManager.hpp.

---

The documentation for this class was generated from the following files:

• VKDescriptorManager.hpp
• VKDescriptorManager.cpp
