Wrapper for Vulkan shader module with lifecycle and reflection. More...

#include <VKShaderModule.hpp>

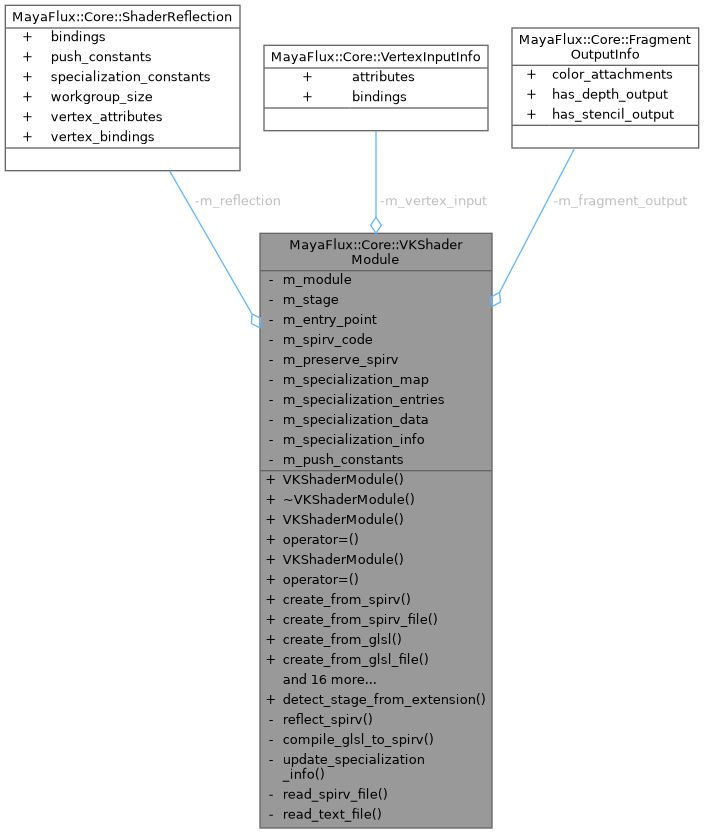

Collaboration diagram for MayaFlux::Core::VKShaderModule:

Public Member Functions
	VKShaderModule ()=default

	~VKShaderModule ()

	VKShaderModule (const VKShaderModule &)=delete

VKShaderModule &	operator= (const VKShaderModule &)=delete

	VKShaderModule (VKShaderModule &&) noexcept

VKShaderModule &	operator= (VKShaderModule &&) noexcept

bool	create_from_spirv (vk::Device device, const std::vector< uint32_t > &spirv_code, vk::ShaderStageFlagBits stage, const std::string &entry_point="main", bool enable_reflection=true)
	Create shader module from SPIR-V binary.

bool	create_from_spirv_file (vk::Device device, const std::string &spirv_path, vk::ShaderStageFlagBits stage, const std::string &entry_point="main", bool enable_reflection=true)
	Create shader module from SPIR-V file.

bool	create_from_glsl (vk::Device device, const std::string &glsl_source, vk::ShaderStageFlagBits stage, const std::string &entry_point="main", bool enable_reflection=true, const std::vector< std::string > &include_directories={}, const std::unordered_map< std::string, std::string > &defines={})
	Create shader module from GLSL source string.

bool	create_from_glsl_file (vk::Device device, const std::string &glsl_path, std::optional< vk::ShaderStageFlagBits > stage=std::nullopt, const std::string &entry_point="main", bool enable_reflection=true, const std::vector< std::string > &include_directories={}, const std::unordered_map< std::string, std::string > &defines={})
	Create shader module from GLSL file.

void	cleanup (vk::Device device)
	Cleanup shader module.

bool	is_valid () const
	Check if module is valid.

vk::ShaderModule	get () const
	Get raw Vulkan shader module handle.

vk::ShaderStageFlagBits	get_stage () const
	Get shader stage.

const std::string &	get_entry_point () const
	Get entry point function name.

vk::PipelineShaderStageCreateInfo	get_stage_create_info () const
	Get pipeline shader stage create info.

const ShaderReflection &	get_reflection () const
	Get shader reflection metadata.

const std::vector< uint32_t > &	get_spirv () const
	Get SPIR-V bytecode.

void	set_specialization_constants (const std::unordered_map< uint32_t, uint32_t > &constants)
	Set specialization constants.

void	set_preserve_spirv (bool preserve)
	Enable SPIR-V preservation for hot-reload.

Stage	get_stage_type () const
	Get shader stage type.

const VertexInputInfo &	get_vertex_input () const
	Get vertex input state (vertex shaders only)

bool	has_vertex_input () const
	Check if vertex input is available.

const FragmentOutputInfo &	get_fragment_output () const
	Get fragment output state (fragment shaders only)

const std::vector< PushConstantInfo > &	get_push_constants () const
	Get detailed push constant info.

std::optional< std::array< uint32_t, 3 > >	get_workgroup_size () const
	Get compute workgroup size (compute shaders only)

Static Public Member Functions
static std::optional< vk::ShaderStageFlagBits >	detect_stage_from_extension (const std::string &filepath)
	Auto-detect shader stage from file extension.

Private Member Functions
bool	reflect_spirv (const std::vector< uint32_t > &spirv_code)
	Perform reflection on SPIR-V bytecode.

std::vector< uint32_t >	compile_glsl_to_spirv (const std::string &glsl_source, vk::ShaderStageFlagBits stage, const std::vector< std::string > &include_directories, const std::unordered_map< std::string, std::string > &defines)
	Compile GLSL to SPIR-V using shaderc.

void	update_specialization_info ()
	Update specialization info from current map Called before get_stage_create_info() to ensure fresh data.

Static Private Member Functions
static std::vector< uint32_t >	read_spirv_file (const std::string &filepath)
	Read binary file into vector.

static std::string	read_text_file (const std::string &filepath)
	Read text file into string.

Private Attributes
vk::ShaderModule	m_module = nullptr

vk::ShaderStageFlagBits	m_stage = vk::ShaderStageFlagBits::eCompute

std::string	m_entry_point = "main"

ShaderReflection	m_reflection

std::vector< uint32_t >	m_spirv_code
	Preserved SPIR-V (if enabled)

bool	m_preserve_spirv {}

std::unordered_map< uint32_t, uint32_t >	m_specialization_map

std::vector< vk::SpecializationMapEntry >	m_specialization_entries

std::vector< uint32_t >	m_specialization_data

vk::SpecializationInfo	m_specialization_info

VertexInputInfo	m_vertex_input

FragmentOutputInfo	m_fragment_output

std::vector< PushConstantInfo >	m_push_constants

Detailed Description

Wrapper for Vulkan shader module with lifecycle and reflection.

Responsibilities:

Create vk::ShaderModule from SPIR-V binary or GLSL source
Load shaders from disk or memory
Extract shader metadata via reflection
Provide pipeline stage info for pipeline creation
Enable hot-reload support (recreation)

Does NOT handle:

Pipeline creation (that's VKComputePipeline/VKGraphicsPipeline)
Descriptor set allocation (that's VKDescriptorManager)
Shader compilation (delegates to external compiler)

Integration points:

VKComputePipeline/VKGraphicsPipeline: uses get_stage_create_info()
VKDescriptorManager: uses get_reflection() for layout creation
VKBufferProcessor: subclasses use this to load compute shaders

Definition at line 130 of file VKShaderModule.hpp.
