ShaderProcessor that uploads node outputs to descriptor sets. More...

#include <DescriptorBindingsProcessor.hpp>

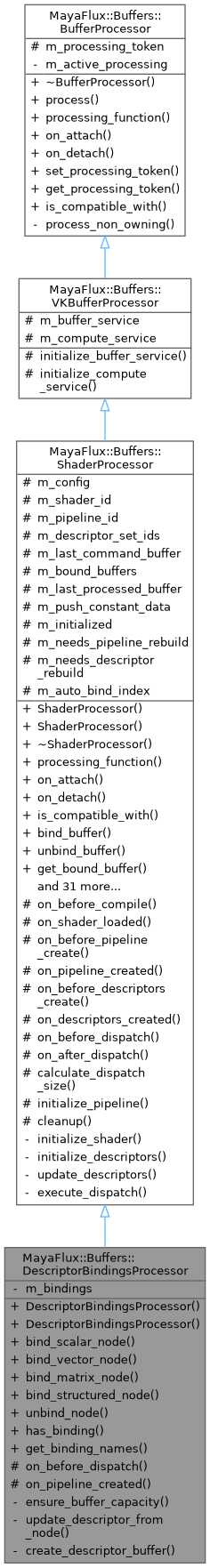

Inheritance diagram for MayaFlux::Buffers::DescriptorBindingsProcessor:

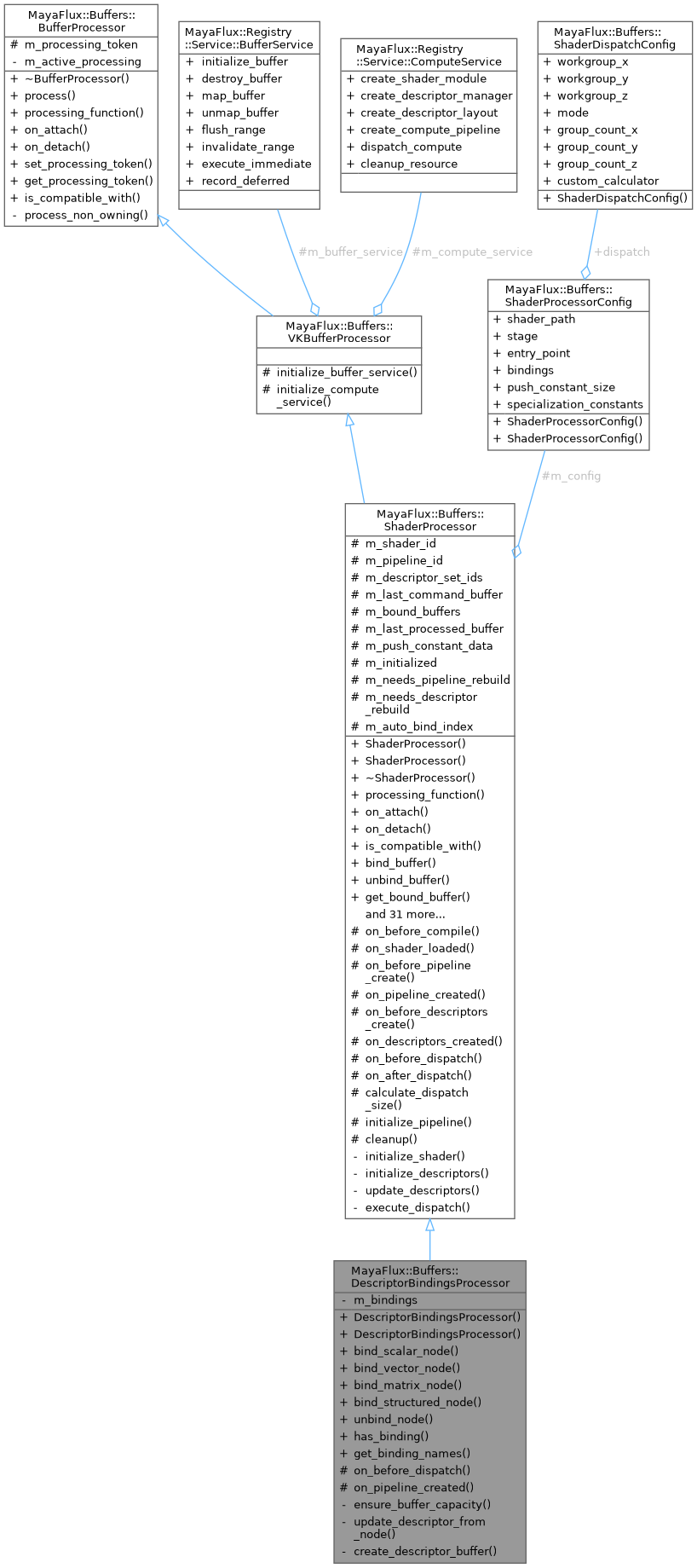

Collaboration diagram for MayaFlux::Buffers::DescriptorBindingsProcessor:

Classes
struct	DescriptorBinding

Public Types
enum class	BindingType : uint8_t { SCALAR , VECTOR , MATRIX , STRUCTURED }

Public Types inherited from MayaFlux::Buffers::ShaderProcessor
enum class	BufferUsageHint : uint8_t { NONE = 0 , INPUT_READ = 1 << 0 , OUTPUT_WRITE = 1 << 1 , BIDIRECTIONAL = INPUT_READ \| OUTPUT_WRITE }
	Get buffer usage characteristics needed for safe data flow. More...

Public Member Functions
	DescriptorBindingsProcessor (const std::string &shader_path, uint32_t workgroup_x=256)
	Create DescriptorBindingsProcessor with shader path.

	DescriptorBindingsProcessor (ShaderProcessorConfig config)
	Create DescriptorBindingsProcessor with shader config.

void	bind_scalar_node (const std::string &name, const std::shared_ptr< Nodes::Node > &node, const std::string &descriptor_name, uint32_t set, vk::DescriptorType type=vk::DescriptorType::eUniformBuffer)
	Bind scalar node output to descriptor.

void	bind_vector_node (const std::string &name, const std::shared_ptr< Nodes::Node > &node, const std::string &descriptor_name, uint32_t set, vk::DescriptorType type=vk::DescriptorType::eStorageBuffer)
	Bind vector node (VectorContext) to descriptor.

void	bind_matrix_node (const std::string &name, const std::shared_ptr< Nodes::Node > &node, const std::string &descriptor_name, uint32_t set, vk::DescriptorType type=vk::DescriptorType::eStorageBuffer)
	Bind matrix node (MatrixContext) to descriptor.

void	bind_structured_node (const std::string &name, const std::shared_ptr< Nodes::Node > &node, const std::string &descriptor_name, uint32_t set, vk::DescriptorType type=vk::DescriptorType::eStorageBuffer)
	Bind structured node (arrays of POD structs) to descriptor.

void	unbind_node (const std::string &name)
	Remove a binding.

bool	has_binding (const std::string &name) const
	Check if binding exists.

std::vector< std::string >	get_binding_names () const
	Get all binding names.

Public Member Functions inherited from MayaFlux::Buffers::ShaderProcessor
	ShaderProcessor (const std::string &shader_path, uint32_t workgroup_x=256)
	Construct processor with shader path.

	ShaderProcessor (ShaderProcessorConfig config)
	Construct processor with full configuration.

	~ShaderProcessor () override

void	processing_function (std::shared_ptr< Buffer > buffer) override
	The core processing function that must be implemented by derived classes.

void	on_attach (std::shared_ptr< Buffer > buffer) override
	Called when this processor is attached to a buffer.

void	on_detach (std::shared_ptr< Buffer > buffer) override
	Called when this processor is detached from a buffer.

bool	is_compatible_with (std::shared_ptr< Buffer > buffer) const override
	Checks if this processor can handle the specified buffer type.

void	bind_buffer (const std::string &descriptor_name, const std::shared_ptr< VKBuffer > &buffer)
	Bind a VKBuffer to a named shader descriptor.

void	unbind_buffer (const std::string &descriptor_name)
	Unbind a buffer from a descriptor.

std::shared_ptr< VKBuffer >	get_bound_buffer (const std::string &descriptor_name) const
	Get bound buffer for a descriptor name.

void	auto_bind_buffer (const std::shared_ptr< VKBuffer > &buffer)
	Auto-bind buffer based on attachment order.

bool	hot_reload_shader ()
	Hot-reload shader from ShaderFoundry.

void	set_shader (const std::string &shader_path)
	Update shader path and reload.

const std::string &	get_shader_path () const
	Get current shader path.

void	set_workgroup_size (uint32_t x, uint32_t y=1, uint32_t z=1)
	Set workgroup size (should match shader local_size)

void	set_dispatch_mode (ShaderDispatchConfig::DispatchMode mode)
	Set dispatch mode.

void	set_manual_dispatch (uint32_t x, uint32_t y=1, uint32_t z=1)
	Set manual dispatch group counts.

void	set_custom_dispatch (std::function< std::array< uint32_t, 3 >(const std::shared_ptr< VKBuffer > &)> calculator)
	Set custom dispatch calculator.

const ShaderDispatchConfig &	get_dispatch_config () const
	Get current dispatch configuration.

void	set_push_constant_size (size_t size)
	Set push constant size.

template<typename T >
void	set_push_constant_size ()
	Set push constant size from type.

template<typename T >
void	set_push_constant_data (const T &data)
	Update push constant data (type-safe)

void	set_push_constant_data_raw (const void *data, size_t size)
	Update push constant data (raw bytes)

const std::vector< uint8_t > &	get_push_constant_data () const
	Get current push constant data.

std::vector< uint8_t > &	get_push_constant_data ()

void	set_specialization_constant (uint32_t constant_id, uint32_t value)
	Set specialization constant.

void	clear_specialization_constants ()
	Clear all specialization constants.

void	set_config (const ShaderProcessorConfig &config)
	Update entire configuration.

const ShaderProcessorConfig &	get_config () const
	Get current configuration.

void	add_binding (const std::string &descriptor_name, const ShaderBinding &binding)
	Add descriptor binding configuration.

virtual BufferUsageHint	get_buffer_usage_hint (const std::string &descriptor_name) const
	Get buffer usage hint for a descriptor.

virtual bool	is_in_place_operation (const std::string &descriptor_name) const
	Check if shader modifies a specific buffer in-place.

bool	has_binding (const std::string &descriptor_name) const
	Check if a descriptor binding exists.

std::vector< std::string >	get_binding_names () const
	Get all configured descriptor names.

bool	are_bindings_complete () const
	Check if all required bindings are satisfied.

bool	is_shader_loaded () const
	Check if shader is loaded.

bool	is_pipeline_ready () const
	Check if pipeline is created.

bool	are_descriptors_ready () const
	Check if descriptors are initialized.

size_t	get_bound_buffer_count () const
	Get number of bound buffers.

virtual std::shared_ptr< VKBuffer >	get_output_buffer () const
	Get the output buffer after compute dispatch.

virtual bool	has_executed () const
	Check if compute has been executed at least once.

Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor
virtual	~BufferProcessor ()=default
	Virtual destructor for proper cleanup of derived classes.

void	process (std::shared_ptr< Buffer > buffer)
	Applies a computational transformation to the data in the provided buffer.

virtual void	set_processing_token (ProcessingToken token)
	Gets the preferred processing backend for this processor.

virtual ProcessingToken	get_processing_token () const
	Gets the current processing token for this buffer.

Protected Member Functions
void	on_before_dispatch (Portal::Graphics::CommandBufferID cmd_id, const std::shared_ptr< VKBuffer > &buffer) override
	Called before shader dispatch - updates all descriptors.

void	on_pipeline_created (Portal::Graphics::ComputePipelineID pipeline_id) override
	Called after pipeline creation - allocates GPU buffers for descriptors.

Protected Member Functions inherited from MayaFlux::Buffers::ShaderProcessor
virtual void	on_before_compile (const std::string &shader_path)
	Called before shader compilation.

virtual void	on_shader_loaded (Portal::Graphics::ShaderID shader_id)
	Called after shader is loaded.

virtual void	on_before_pipeline_create (Portal::Graphics::ComputePipelineID pipeline_id)
	Called before pipeline creation.

virtual void	on_before_descriptors_create ()
	Called before descriptor sets are created.

virtual void	on_descriptors_created ()
	Called after descriptor sets are created.

virtual void	on_after_dispatch (Portal::Graphics::CommandBufferID cmd_id, const std::shared_ptr< VKBuffer > &buffer)
	Called after each dispatch.

virtual std::array< uint32_t, 3 >	calculate_dispatch_size (const std::shared_ptr< VKBuffer > &buffer)
	Calculate dispatch size from buffer.

virtual void	initialize_pipeline (const std::shared_ptr< Buffer > &buffer)

virtual void	cleanup ()

Protected Member Functions inherited from MayaFlux::Buffers::VKBufferProcessor
void	initialize_buffer_service ()

void	initialize_compute_service ()

Private Member Functions
void	ensure_buffer_capacity (DescriptorBinding &binding, size_t required_size)
	Ensure descriptor buffer has sufficient capacity.

void	update_descriptor_from_node (DescriptorBinding &binding)
	Update descriptor from node context.

std::shared_ptr< VKBuffer >	create_descriptor_buffer (size_t size, vk::DescriptorType type)
	Create GPU buffer for a descriptor binding.

Private Attributes
std::unordered_map< std::string, DescriptorBinding >	m_bindings

Additional Inherited Members
Protected Attributes inherited from MayaFlux::Buffers::ShaderProcessor
ShaderProcessorConfig	m_config

Portal::Graphics::ShaderID	m_shader_id = Portal::Graphics::INVALID_SHADER

Portal::Graphics::ComputePipelineID	m_pipeline_id = Portal::Graphics::INVALID_COMPUTE_PIPELINE

std::vector< Portal::Graphics::DescriptorSetID >	m_descriptor_set_ids

Portal::Graphics::CommandBufferID	m_last_command_buffer = Portal::Graphics::INVALID_COMMAND_BUFFER

std::unordered_map< std::string, std::shared_ptr< VKBuffer > >	m_bound_buffers

std::shared_ptr< VKBuffer >	m_last_processed_buffer

std::vector< uint8_t >	m_push_constant_data

bool	m_initialized {}

bool	m_needs_pipeline_rebuild = true

bool	m_needs_descriptor_rebuild = true

size_t	m_auto_bind_index {}

Protected Attributes inherited from MayaFlux::Buffers::VKBufferProcessor
Registry::Service::BufferService *	m_buffer_service = nullptr

Registry::Service::ComputeService *	m_compute_service = nullptr

Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor
ProcessingToken	m_processing_token { ProcessingToken::AUDIO_BACKEND }

Detailed Description

ShaderProcessor that uploads node outputs to descriptor sets.

Binds nodes to UBO/SSBO descriptors. Supports:

Scalar nodes (single value)
Vector nodes (contiguous arrays via VectorContext)
Matrix nodes (2D grids via MatrixContext)
Structured nodes (arrays of POD structs)

Usage: auto processor = std::make_shared<DescriptorBindingsProcessor>(shader_config);

// Bind scalar node to UBO processor->bind_scalar_node("frequency", freq_node, "params", 0, vk::DescriptorType::eUniformBuffer);

// Bind vector node to SSBO processor->bind_vector_node("spectrum", spectrum_node, "spectrum_data", 0, vk::DescriptorType::eStorageBuffer);

Definition at line 32 of file DescriptorBindingsProcessor.hpp.
