MayaFlux::Nodes::NodeGraphManager Class Reference
Central manager for the computational processing node graph. More...
#include <NodeGraphManager.hpp>

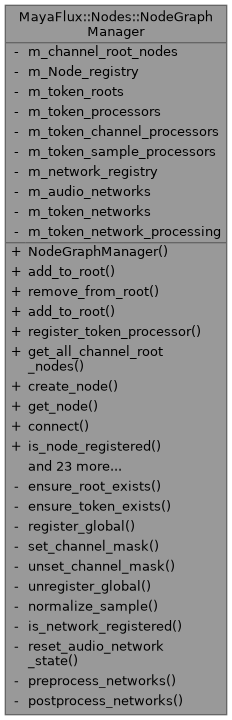

Collaboration diagram for MayaFlux::Nodes::NodeGraphManager:
Public Member Functions | |
| NodeGraphManager () | |
| Creates a new NodeGraphManager. | |
| void | add_to_root (const std::shared_ptr< Node > &node, ProcessingToken token, unsigned int channel=0) |
| Add node to specific processing token and channel. | |
| void | remove_from_root (const std::shared_ptr< Node > &node, ProcessingToken token, unsigned int channel=0) |
| Remove node from a specific processing token and channel. | |
| void | add_to_root (const std::string &node_id, ProcessingToken token=ProcessingToken::AUDIO_RATE, unsigned int channel=0) |
| Adds a node to a channel's root node by its identifier. | |
| void | register_token_processor (ProcessingToken token, std::function< void(std::span< RootNode * >)> processor) |
| Register subsystem processor for a specific token. | |
| const std::unordered_map< unsigned int, std::shared_ptr< RootNode > > & | get_all_channel_root_nodes (ProcessingToken token=ProcessingToken::AUDIO_RATE) const |
| Gets all channel root nodes for the AUDIO_RATE domain. | |
| template<typename NodeType , typename... Args> | |
| std::shared_ptr< NodeType > | create_node (const std::string &id, Args &&... args) |
| Creates and registers a new node of the specified type. | |
| std::shared_ptr< Node > | get_node (const std::string &id) |
| Looks up a node by its string identifier. | |
| void | connect (const std::string &source_id, const std::string &target_id) |
| Connects two nodes by their string identifiers. | |
| bool | is_node_registered (const std::shared_ptr< Node > &node) |
| Checks if a node is registered with this manager. | |
| void | process_token (ProcessingToken token, unsigned int num_samples=1) |
| Process all nodes in a specific token domain Calls registered processor if available, otherwise calls process() on each root. | |
| void | register_token_channel_processor (ProcessingToken token, TokenChannelProcessor processor) |
| Register per-channel processor for a specific token. | |
| void | register_token_sample_processor (ProcessingToken token, TokenSampleProcessor processor) |
| Register per-sample processor for a specific token. | |
| std::vector< double > | process_channel (ProcessingToken token, unsigned int channel, unsigned int num_samples) |
| Process a specific channel within a token domain. | |
| double | process_sample (ProcessingToken token, uint32_t channel) |
| Process a single sample for a specific channel. | |
| std::unordered_map< unsigned int, std::vector< double > > | process_token_with_channel_data (ProcessingToken token, unsigned int num_samples) |
| Process all channels for a token and return channel-separated data. | |
| unsigned int | get_channel_count (ProcessingToken token) const |
| Get the number of active channels for a specific token. | |
| std::vector< RootNode * > | get_all_root_nodes (ProcessingToken token) |
| Get spans of root nodes for a token (for custom processing) | |
| RootNode & | get_root_node (ProcessingToken token, unsigned int channel) |
| Gets or creates the root node for a specific token and channel. | |
| void | process_all_tokens (unsigned int num_samples=1) |
| Process all active tokens sequentially. | |
| std::vector< ProcessingToken > | get_active_tokens () const |
| Gets all currently active processing tokens (domains) | |
| std::vector< unsigned int > | get_all_channels (ProcessingToken token) const |
| Gets all channel indices for a given processing token. | |
| size_t | get_node_count (ProcessingToken token) const |
| Gets the total number of nodes registered under a given token. | |
| void | print_summary () const |
| Prints a summary of all tokens, channels, and node counts. | |
| void | add_network (const std::shared_ptr< NodeNetwork > &network, ProcessingToken token) |
| Add a network to a processing token. | |
| void | remove_network (const std::shared_ptr< NodeNetwork > &network, ProcessingToken token) |
| Remove a network from a processing token. | |
| std::vector< std::shared_ptr< NodeNetwork > > | get_networks (ProcessingToken token, uint32_t channel=0) const |
| Get all networks for a specific token. | |
| std::vector< std::shared_ptr< NodeNetwork > > | get_all_networks (ProcessingToken token) const |
| Get all networks for a specific token across all channels. | |
| size_t | get_network_count (ProcessingToken token) const |
| Get count of networks for a token. | |
| void | clear_networks (ProcessingToken token) |
| Clear all networks from a token. | |
| void | register_network_global (const std::shared_ptr< NodeNetwork > &network) |
| Register network globally (like nodes) | |
| void | unregister_network_global (const std::shared_ptr< NodeNetwork > &network) |
| Unregister network globally. | |
| std::vector< std::vector< double > > | process_audio_networks (ProcessingToken token, uint32_t num_samples, uint32_t channel=0) |
| Process audio networks for a specific channel. | |
Private Member Functions | |
| void | ensure_root_exists (ProcessingToken token, unsigned int channel) |
| Ensures a root node exists for the given token and channel. | |
| void | ensure_token_exists (ProcessingToken token, uint32_t num_channels=1) |
| Ensures that a processing token entry exists. | |
| void | register_global (const std::shared_ptr< Node > &node) |
| Registers a node globally if not already registered. | |
| void | set_channel_mask (const std::shared_ptr< Node > &node, uint32_t channel_id) |
| Adds the specified channel mask to a node's global registration. | |
| void | unset_channel_mask (const std::shared_ptr< Node > &node, uint32_t channel_id) |
| Unsets the specified channel mask from a node's global registration. | |
| void | unregister_global (const std::shared_ptr< Node > &node) |
| Unregisters a node globally. | |
| void | normalize_sample (double &sample, uint32_t num_nodes) |
| Normalizes a sample to the range [-1, 1] based on the number of nodes. | |
| bool | is_network_registered (const std::shared_ptr< NodeNetwork > &network) |
| Check if network is registered globally. | |
| void | reset_audio_network_state (ProcessingToken token, uint32_t channel=0) |
| Resets the processing state of audio networks for a token and channel. | |
| bool | preprocess_networks (ProcessingToken token) |
| Preprocess networks for a specific token. | |
| void | postprocess_networks (ProcessingToken token, std::optional< uint32_t > channel) |
| Postprocess networks for a specific token and channel. | |
Private Attributes | |
| std::unordered_map< unsigned int, std::shared_ptr< RootNode > > | m_channel_root_nodes |
| Map of channel indices to their root nodes (AUDIO_RATE domain) | |
| std::unordered_map< std::string, std::shared_ptr< Node > > | m_Node_registry |
| Registry of all nodes by their string identifiers. | |
| std::unordered_map< ProcessingToken, std::unordered_map< unsigned int, std::shared_ptr< RootNode > > > | m_token_roots |
| Multi-modal map of processing tokens to their channel root nodes. | |
| std::unordered_map< ProcessingToken, std::function< void(std::span< RootNode * >)> > | m_token_processors |
| Registered custom processors for each processing token. | |
| std::unordered_map< ProcessingToken, TokenChannelProcessor > | m_token_channel_processors |
| Per-channel processors for each processing token. | |
| std::unordered_map< ProcessingToken, TokenSampleProcessor > | m_token_sample_processors |
| Per-sample processors for each processing token. | |
| std::unordered_map< std::string, std::shared_ptr< NodeNetwork > > | m_network_registry |
| Global network registry (like m_Node_registry) | |
| std::unordered_map< ProcessingToken, std::unordered_map< unsigned int, std::vector< std::shared_ptr< NodeNetwork > > > > | m_audio_networks |
| Audio-sink networks (channel-routed) Only populated for networks with OutputMode::AUDIO_SINK. | |
| std::unordered_map< ProcessingToken, std::vector< std::shared_ptr< NodeNetwork > > > | m_token_networks |
| Non-audio networks (token-level processing) For NONE, GRAPHICS_BIND, CUSTOM output modes. | |
| std::unordered_map< ProcessingToken, std::atomic< bool > > | m_token_network_processing |
| Processing flags for each token's networks. | |
Detailed Description
Central manager for the computational processing node graph.
The NodeGraphManager is the primary interface for creating, connecting, and managing processing nodes in the MayaFlux engine. It serves as a registry for all nodes and maintains the root nodes for each processing channel and processing domain (token).
Features:
- Multi-modal (token-based) processing: Supports multiple independent processing domains (e.g., AUDIO_RATE, VISUAL_RATE, CUSTOM_RATE), each with its own set of channels and root nodes.
- Per-channel root nodes: Each processing domain can have multiple channels, each with its own RootNode.
- Node registry: Nodes are registered by string identifier for easy lookup and connection.
- Flexible connection: Nodes can be connected by reference or by identifier, supporting both direct and named graph construction.
- Subsystem token processors: Allows registration of custom processing functions for each token, enabling efficient backend-specific processing.
This class provides methods to:
- Create nodes of any type with automatic registration
- Connect nodes to form processing chains
- Add nodes to channel root nodes for output
- Look up nodes by their string identifiers
The NodeGraphManager maintains separate root nodes for each processing channel. Channels are local to a specific processing domain. This allows for independent transformation chains per channel while sharing nodes between channels when needed.
Definition at line 39 of file NodeGraphManager.hpp.
The documentation for this class was generated from the following files:
