normalize_sample()

void MayaFlux::Nodes::NodeGraphManager::normalize_sample ( double &  sample, uint32_t  num_nodes  )

private

Normalizes a sample to the range [-1, 1] based on the number of nodes.

Parameters

sample	Reference to the sample value to normalize
num_nodes	Number of nodes in the processing chain

Ensures that the sample value is within the valid range for audio processing.

Definition at line 292 of file NodeGraphManager.cpp.

{
    if (num_nodes == 0)
        return;

    sample /= std::sqrt(static_cast<double>(num_nodes));

    const double threshold = 0.95;
    const double knee = 0.1;
    const double abs_sample = std::abs(sample);

    if (abs_sample > threshold) {
        const double excess = abs_sample - threshold;
        const double compressed_excess = std::tanh(excess / knee) * knee;
        const double limited_abs = threshold + compressed_excess;
        sample = std::copysign(limited_abs, sample);
    }
}

References threshold.

Referenced by process_channel(), and process_sample().

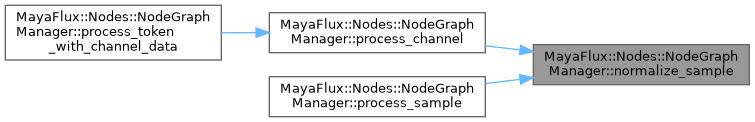

Here is the caller graph for this function:
