Single 3D point in space. More...

#include <PointNode.hpp>

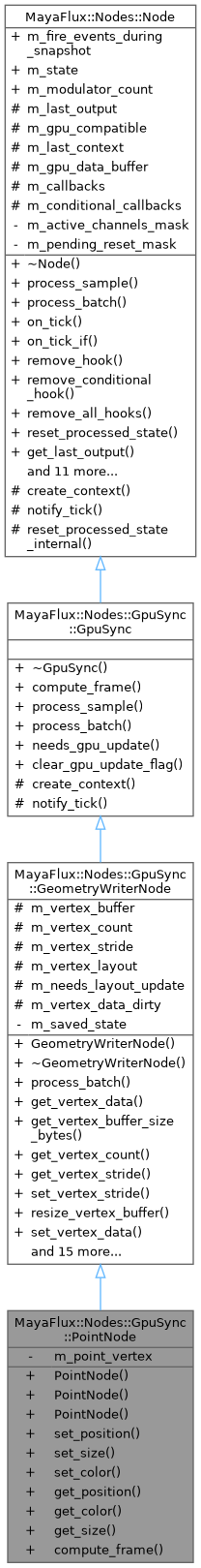

Inheritance diagram for MayaFlux::Nodes::GpuSync::PointNode:

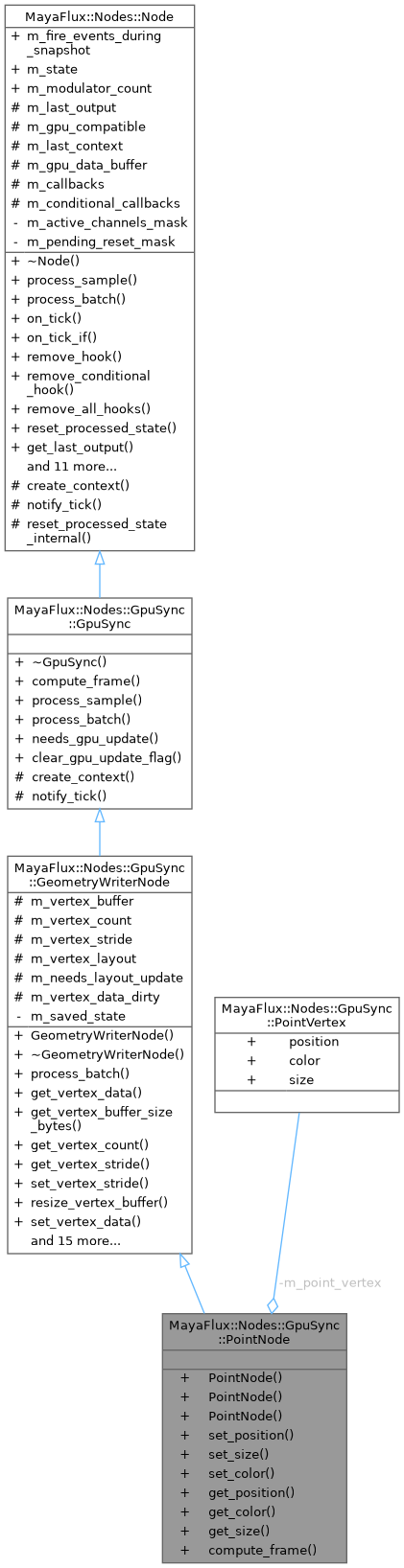

Collaboration diagram for MayaFlux::Nodes::GpuSync::PointNode:

Public Member Functions
	PointNode ()
	Create point at origin.

	PointNode (const PointVertex &point)
	Create point from PointVertex.

	PointNode (const glm::vec3 &position, const glm::vec3 &color=glm::vec3(1.0F), float size=10.0F)
	Create point at specific position.

void	set_position (const glm::vec3 &position)
	Set point position.

void	set_size (float size)
	Set point size.

void	set_color (const glm::vec3 &color)
	Set point color.

glm::vec3	get_position () const
	Get current position.

glm::vec3	get_color () const
	Get current color.

float	get_size () const
	Get current size.

void	compute_frame () override
	Compute frame - upload single point to vertex buffer.

Public Member Functions inherited from MayaFlux::Nodes::GpuSync::GeometryWriterNode
	GeometryWriterNode (uint32_t initial_capacity=1024)
	Constructor.

	~GeometryWriterNode () override=default

std::vector< double >	process_batch (unsigned int num_samples) override
	Process batch for geometry generation.

std::span< const uint8_t >	get_vertex_data () const
	Get raw vertex buffer data.

size_t	get_vertex_buffer_size_bytes () const
	Get vertex buffer size in bytes.

uint32_t	get_vertex_count () const
	Get number of vertices.

size_t	get_vertex_stride () const
	Get stride (bytes per vertex)

void	set_vertex_stride (size_t stride)
	Set vertex stride (bytes per vertex)

void	resize_vertex_buffer (uint32_t vertex_count, bool preserve_data=false)
	Resize vertex buffer to hold specified number of vertices.

void	set_vertex_data (const void *data, size_t size_bytes)
	Copy raw vertex data into buffer.

void	set_vertex (uint32_t vertex_index, const void *data, size_t size_bytes)
	Set a single vertex by index.

std::span< const uint8_t >	get_vertex (uint32_t vertex_index) const
	Get a single vertex by index.

template<typename T >
void	set_vertices (std::span< const T > vertices)
	Set multiple vertices from typed array.

template<typename T >
void	set_vertex_typed (uint32_t index, const T &vertex)
	Set a single vertex by index from typed data.

template<typename T >
T	get_vertex_typed (uint32_t index) const
	Get a single vertex by index as typed data.

void	clear ()
	Clear vertex buffer and reset count.

void	clear_and_resize (uint32_t vertex_count)
	Clear vertex buffer and resize to specified count.

void	set_vertex_layout (const Kakshya::VertexLayout &layout)
	Set cached vertex layout.

std::optional< Kakshya::VertexLayout >	get_vertex_layout () const
	Get cached vertex layout.

bool	needs_layout_update () const
	Check if layout needs update.

void	clear_layout_update_flag ()
	Clear layout update flag.

void	save_state () override
	Save current geometry state.

void	restore_state () override
	Restore saved geometry state.

bool	needs_gpu_update () const override
	Check if vertex data or layout changed since last GPU sync.

void	clear_gpu_update_flag () override
	Clear the dirty flag after GPU upload completes.

Public Member Functions inherited from MayaFlux::Nodes::GpuSync::GpuSync
	~GpuSync () override=default

double	process_sample (double) override
	Single sample processing hook.

std::vector< double >	process_batch (unsigned int num_samples) override
	Batch processing for GPU nodes.

Public Member Functions inherited from MayaFlux::Nodes::Node
virtual	~Node ()=default
	Virtual destructor for proper cleanup of derived classes.

virtual void	on_tick (const NodeHook &callback)
	Registers a callback to be called on each tick.

virtual void	on_tick_if (const NodeHook &callback, const NodeCondition &condition)
	Registers a conditional callback.

virtual bool	remove_hook (const NodeHook &callback)
	Removes a previously registered callback.

virtual bool	remove_conditional_hook (const NodeCondition &callback)
	Removes a previously registered conditional callback.

virtual void	remove_all_hooks ()
	Removes all registered callbacks.

virtual void	reset_processed_state ()
	Resets the processed state of the node and any attached input nodes.

virtual double	get_last_output ()
	Retrieves the most recent output value produced by the node.

void	register_channel_usage (uint32_t channel_id)
	Mark the specificed channel as a processor/user.

void	unregister_channel_usage (uint32_t channel_id)
	Removes the specified channel from the usage tracking.

bool	is_used_by_channel (uint32_t channel_id) const
	Checks if the node is currently used by a specific channel.

void	request_reset_from_channel (uint32_t channel_id)
	Requests a reset of the processed state from a specific channel.

const std::atomic< uint32_t > &	get_channel_mask () const
	Retrieves the current bitmask of active channels using this node.

NodeContext &	get_last_context ()
	Retrieves the last created context object.

void	set_gpu_compatible (bool compatible)
	Sets whether the node is compatible with GPU processing.

bool	is_gpu_compatible () const
	Checks if the node supports GPU processing.

std::span< const float >	get_gpu_data_buffer () const
	Provides access to the GPU data buffer.

Private Attributes
PointVertex	m_point_vertex

Additional Inherited Members
Public Attributes inherited from MayaFlux::Nodes::Node
bool	m_fire_events_during_snapshot = false
	Internal flag controlling whether notify_tick fires during state snapshots Default: false (events don't fire during isolated buffer processing) Can be exposed in future if needed via concrete implementation in parent.

std::atomic< Utils::NodeState >	m_state { Utils::NodeState::INACTIVE }
	Atomic state flag tracking the node's processing status.

std::atomic< uint32_t >	m_modulator_count { 0 }
	Counter tracking how many other nodes are using this node as a modulator.

Protected Member Functions inherited from MayaFlux::Nodes::GpuSync::GpuSync
std::unique_ptr< NodeContext >	create_context (double) override
	GPU sync nodes don't produce scalar contexts.

void	notify_tick (double) override
	GPU sync nodes don't emit tick callbacks.

Protected Member Functions inherited from MayaFlux::Nodes::Node
virtual void	reset_processed_state_internal ()
	Resets the processed state of the node directly.

Protected Attributes inherited from MayaFlux::Nodes::GpuSync::GeometryWriterNode
std::vector< uint8_t >	m_vertex_buffer
	Vertex data buffer (flat array of bytes)

uint32_t	m_vertex_count {}
	Number of vertices in buffer.

size_t	m_vertex_stride {}
	Bytes per vertex (stride for vertex buffer binding)

std::optional< Kakshya::VertexLayout >	m_vertex_layout
	Cached vertex layout for descriptor binding.

bool	m_needs_layout_update {}
	Flag indicating if layout needs update.

bool	m_vertex_data_dirty { true }
	Flag: vertex data or layout changed since last GPU upload.

Protected Attributes inherited from MayaFlux::Nodes::Node
double	m_last_output { 0 }
	The most recent sample value generated by this oscillator.

bool	m_gpu_compatible {}
	Flag indicating if the node supports GPU processing This flag is set by derived classes to indicate whether the node can be processed on the GPU.

std::unique_ptr< NodeContext >	m_last_context
	The last context object created for callbacks.

std::vector< float >	m_gpu_data_buffer
	GPU data buffer for context objects.

std::vector< NodeHook >	m_callbacks
	Collection of standard callback functions.

std::vector< std::pair< NodeHook, NodeCondition > >	m_conditional_callbacks
	Collection of conditional callback functions with their predicates.

Detailed Description

Single 3D point in space.

GeometryWriterNode that renders exactly ONE point. Can be used standalone or as building block in NodeNetworks.

Usage:

auto point = std::make_shared<PointNode>(glm::vec3(0.0f, 0.0f, 0.0f));
auto buffer = std::make_shared<GeometryBuffer>(point);
buffer->initialize();

Definition at line 27 of file PointNode.hpp.
