MayaFlux::Buffers::BufferManager Class Reference
Token-based multimodal buffer management system for unified data stream processing. More...
#include <BufferManager.hpp>

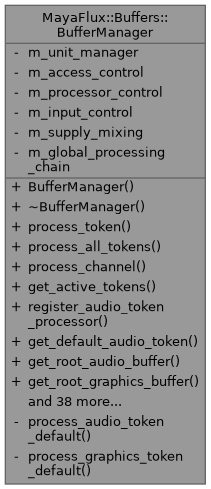

Collaboration diagram for MayaFlux::Buffers::BufferManager:
Public Member Functions | |
| BufferManager (uint32_t default_out_channels=2, uint32_t default_in_channels=0, uint32_t default_buffer_size=512, ProcessingToken default_audio_token=ProcessingToken::AUDIO_BACKEND, ProcessingToken default_graphics_token=ProcessingToken::GRAPHICS_BACKEND) | |
| Creates a new multimodal buffer manager. | |
| ~BufferManager () | |
| void | process_token (ProcessingToken token, uint32_t processing_units) |
| Processes all buffers for a specific token. | |
| void | process_all_tokens () |
| Processes all active tokens with their configured processing units. | |
| void | process_channel (ProcessingToken token, uint32_t channel, uint32_t processing_units, const std::vector< double > &node_output_data={}) |
| Processes a specific channel within a token domain. | |
| std::vector< ProcessingToken > | get_active_tokens () const |
| Gets all currently active processing tokens. | |
| void | register_audio_token_processor (ProcessingToken token, RootAudioProcessingFunction processor) |
| Registers a custom processor for an audio token domain. | |
| ProcessingToken | get_default_audio_token () const |
| Gets the default processing token used by the manager. | |
| std::shared_ptr< RootAudioBuffer > | get_root_audio_buffer (ProcessingToken token, uint32_t channel=0) |
| Gets a root buffer for a specific token and channel (audio-specific due to channels) | |
| std::shared_ptr< RootGraphicsBuffer > | get_root_graphics_buffer (ProcessingToken token) |
| Gets a root graphics buffer for a specific token. | |
| std::vector< double > & | get_buffer_data (ProcessingToken token, uint32_t channel) |
| Gets data from a specific token and channel (audio-specific) | |
| const std::vector< double > & | get_buffer_data (ProcessingToken token, uint32_t channel) const |
| uint32_t | get_num_channels (ProcessingToken token) const |
| Gets the number of channels for a token (audio-specific) | |
| uint32_t | get_buffer_size (ProcessingToken token) const |
| Gets the buffer size for a token. | |
| void | resize_buffers (ProcessingToken token, uint32_t buffer_size) |
| Resizes buffers for a token. | |
| void | ensure_channels (ProcessingToken token, uint32_t channel_count) |
| Ensures minimum number of channels exist for an audio token. | |
| void | validate_num_channels (ProcessingToken token, uint32_t num_channels, uint32_t buffer_size) |
| Validates the number of channels and resizes buffers if necessary (audio-specific) | |
| std::shared_ptr< BufferProcessingChain > | get_processing_chain (ProcessingToken token, uint32_t channel) |
| Gets the processing chain for a token and channel (audio-specific) | |
| std::shared_ptr< BufferProcessingChain > | get_global_processing_chain () |
| Gets the global processing chain (applied to all tokens) | |
| void | add_buffer (const std::shared_ptr< Buffer > &buffer, ProcessingToken token, uint32_t channel=0) |
| Adds a buffer to a token and channel. | |
| void | remove_buffer (const std::shared_ptr< Buffer > &buffer, ProcessingToken token, uint32_t channel=0) |
| Removes a buffer from a token. | |
| const std::vector< std::shared_ptr< AudioBuffer > > & | get_buffers (ProcessingToken token, uint32_t channel) const |
| Gets buffers for a token (audio-specific due to channels) | |
| const std::vector< std::shared_ptr< VKBuffer > > & | get_graphics_buffers (ProcessingToken token) const |
| Gets graphics buffers for a token. | |
| std::vector< std::shared_ptr< VKBuffer > > | get_buffers_by_usage (VKBuffer::Usage usage, ProcessingToken token) const |
| Gets graphics buffers filtered by usage. | |
| template<typename BufferType , typename... Args> | |
| std::shared_ptr< BufferType > | create_audio_buffer (ProcessingToken token, uint32_t channel, Args &&... args) |
| Creates a specialized audio buffer and adds it to the specified token/channel. | |
| template<typename BufferType , typename... Args> | |
| std::shared_ptr< BufferType > | create_graphics_buffer (ProcessingToken token, Args &&... args) |
| Creates a specialized vulkan buffer and adds it to the specified token/channel. | |
| void | add_processor (const std::shared_ptr< BufferProcessor > &processor, const std::shared_ptr< Buffer > &buffer, ProcessingToken token=ProcessingToken::AUDIO_BACKEND) |
| Adds a processor to a buffer. | |
| void | add_processor (const std::shared_ptr< BufferProcessor > &processor, ProcessingToken token, uint32_t channel) |
| Adds a processor to a token and channel (audio-specific) | |
| void | add_processor (const std::shared_ptr< BufferProcessor > &processor, ProcessingToken token) |
| Adds a processor to all channels in a token (audio-specific) | |
| void | remove_processor (const std::shared_ptr< BufferProcessor > &processor, const std::shared_ptr< Buffer > &buffer) |
| Removes a processor from a buffer. | |
| void | remove_processor_from_channel (const std::shared_ptr< BufferProcessor > &processor, ProcessingToken token, uint32_t channel) |
| Removes a processor from a token and channel (audio-specific) | |
| void | remove_processor_from_token (const std::shared_ptr< BufferProcessor > &processor, ProcessingToken token) |
| Removes a processor from all channels in a token (audio-specific) | |
| void | set_final_processor (const std::shared_ptr< BufferProcessor > &processor, ProcessingToken token) |
| Sets a final processor for a token (audio-specific) | |
| std::shared_ptr< BufferProcessor > | attach_quick_process (BufferProcessingFunction processor, const std::shared_ptr< Buffer > &buffer, ProcessingToken token=ProcessingToken::AUDIO_BACKEND) |
| std::shared_ptr< BufferProcessor > | attach_quick_process (BufferProcessingFunction processor, ProcessingToken token, uint32_t channel) |
| std::shared_ptr< BufferProcessor > | attach_quick_process (BufferProcessingFunction processor, ProcessingToken token) |
| void | connect_node_to_channel (const std::shared_ptr< Nodes::Node > &node, ProcessingToken token, uint32_t channel, float mix=0.5F, bool clear_before=false) |
| void | connect_node_to_buffer (const std::shared_ptr< Nodes::Node > &node, const std::shared_ptr< AudioBuffer > &buffer, float mix=0.5F, bool clear_before=true) |
| void | fill_from_interleaved (const double *interleaved_data, uint32_t num_frames, ProcessingToken token, uint32_t num_channels) |
| void | fill_interleaved (double *interleaved_data, uint32_t num_frames, ProcessingToken token, uint32_t num_channels) const |
| std::vector< std::shared_ptr< AudioBuffer > > | clone_buffer_for_channels (const std::shared_ptr< AudioBuffer > &buffer, const std::vector< uint32_t > &channels, ProcessingToken token) |
| void | process_input (double *input_data, uint32_t num_channels, uint32_t num_frames) |
| void | register_input_listener (const std::shared_ptr< AudioBuffer > &buffer, uint32_t channel) |
| void | unregister_input_listener (const std::shared_ptr< AudioBuffer > &buffer, uint32_t channel) |
| bool | supply_buffer_to (const std::shared_ptr< AudioBuffer > &buffer, ProcessingToken token, uint32_t channel, double mix=1.0) |
| bool | remove_supplied_buffer (const std::shared_ptr< AudioBuffer > &buffer, ProcessingToken token, uint32_t channel) |
| void | initialize_buffer_service () |
| void | terminate_active_buffers () |
| Terminates all active buffers, clearing their data. | |
Private Member Functions | |
| void | process_audio_token_default (ProcessingToken token, uint32_t processing_units) |
| void | process_graphics_token_default (ProcessingToken token, uint32_t processing_units) |
Private Attributes | |
| std::unique_ptr< TokenUnitManager > | m_unit_manager |
| Token/unit storage and lifecycle. | |
| std::unique_ptr< BufferAccessControl > | m_access_control |
| Buffer and unit access operations. | |
| std::unique_ptr< BufferProcessingControl > | m_processor_control |
| Processor attachment/removal operations. | |
| std::unique_ptr< BufferInputControl > | m_input_control |
| Audio input management. | |
| std::unique_ptr< BufferSupplyMixing > | m_supply_mixing |
| Buffer supply and mixing operations. | |
| std::shared_ptr< BufferProcessingChain > | m_global_processing_chain |
| Global processing chain applied to all tokens. | |
Detailed Description
Token-based multimodal buffer management system for unified data stream processing.
BufferManager serves as the central orchestrator for buffer processing in the MayaFlux engine, implementing a token-based architecture that enables seamless integration of different processing domains while maintaining proven audio processing patterns.
Architecture:
- Token-Based Routing: Operations use tokens to route to appropriate units
- Unified Interface: Most operations work generically across domains, no audio_/graphics_ prefixes needed
- Delegating Facade: Thin delegation layer over functional helper classes
- Functional Helpers: Encapsulate specific concerns (TokenUnitManager, BufferAccessControl, etc.)
This design scales to new domains without API explosion—just add token support.
Definition at line 36 of file BufferManager.hpp.
The documentation for this class was generated from the following files:
