External buffer supply, mixing, and interleaved data I/O. More...

#include <BufferSupplyMixing.hpp>

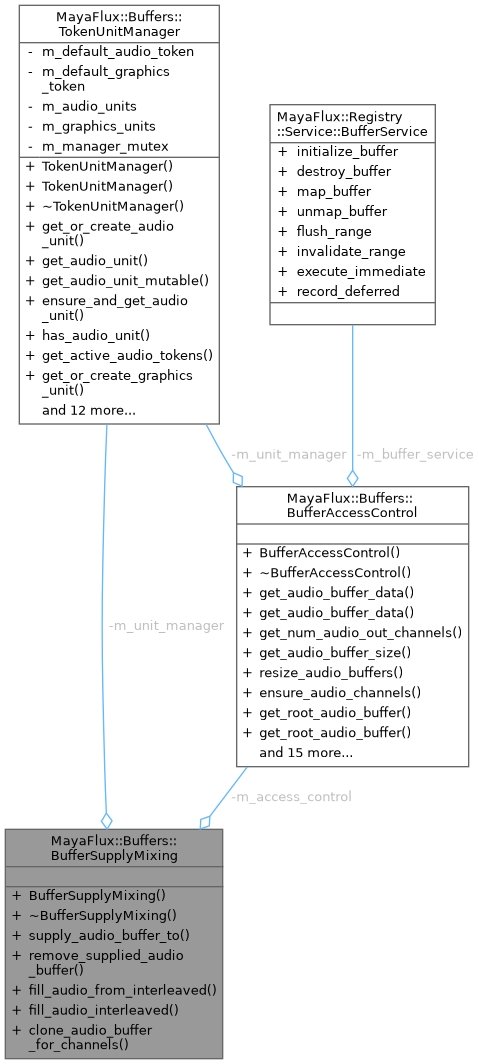

Collaboration diagram for MayaFlux::Buffers::BufferSupplyMixing:

Public Member Functions
	BufferSupplyMixing (TokenUnitManager &unit_manager, BufferAccessControl &access_control)
	Creates a new supply/mixing control handler.

	~BufferSupplyMixing ()=default

bool	supply_audio_buffer_to (const std::shared_ptr< AudioBuffer > &buffer, ProcessingToken token, uint32_t channel, double mix=1.0)
	Supplies an external audio buffer to a specific token and channel.

bool	remove_supplied_audio_buffer (const std::shared_ptr< AudioBuffer > &buffer, ProcessingToken token, uint32_t channel)
	Removes a previously supplied buffer from a token and channel.

void	fill_audio_from_interleaved (const double *interleaved_data, uint32_t num_frames, ProcessingToken token, uint32_t num_channels)
	Fills audio token channels from interleaved source data.

void	fill_audio_interleaved (double *interleaved_data, uint32_t num_frames, ProcessingToken token, uint32_t num_channels) const
	Fills interleaved buffer from audio token channels.

std::vector< std::shared_ptr< AudioBuffer > >	clone_audio_buffer_for_channels (const std::shared_ptr< AudioBuffer > &buffer, const std::vector< uint32_t > &channels, ProcessingToken token)
	Clones an audio buffer for each channel in the specified list.

Private Attributes
TokenUnitManager &	m_unit_manager
	Reference to the token/unit manager.

BufferAccessControl &	m_access_control
	Reference to the buffer access control.

Detailed Description

External buffer supply, mixing, and interleaved data I/O.

Manages operations for supplying external buffers to channels, mixing buffers, and converting between interleaved and channel-separated formats. This enables advanced routing patterns where the same buffer feeds multiple channels, or data is imported/exported in different formats.

Design Principles:

Token-aware: Routes operations to appropriate tokens
Format-agnostic: Handles both channel-separated and interleaved data
Mixing coordination: Uses MixProcessor for proper signal combining
Single responsibility: Only handles supply/mixing/format operations

This class encapsulates all buffer supply and data I/O logic.

Definition at line 28 of file BufferSupplyMixing.hpp.
