MayaFlux::Buffers::RootGraphicsBuffer Class Reference
Root container for GPU buffer lifecycle management and batch processing. More...
#include <RootGraphicsBuffer.hpp>

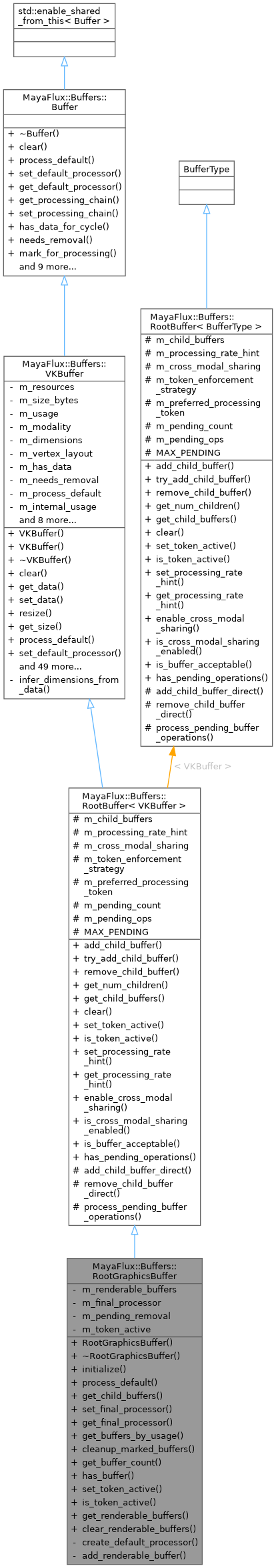

Inheritance diagram for MayaFlux::Buffers::RootGraphicsBuffer:

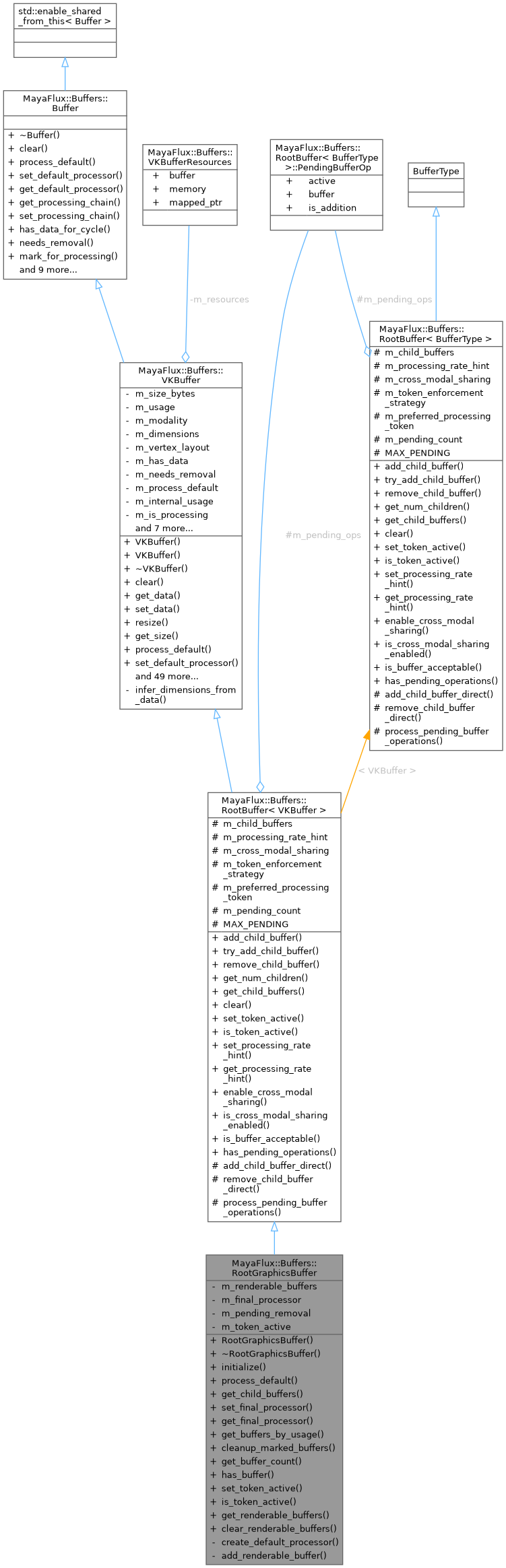

Collaboration diagram for MayaFlux::Buffers::RootGraphicsBuffer:
Classes | |
| struct | RenderableBufferInfo |
| Information about a buffer that's ready to render. More... | |
Public Member Functions | |
| RootGraphicsBuffer () | |
| Creates a new root graphics buffer. | |
| ~RootGraphicsBuffer () override | |
| Virtual destructor ensuring proper cleanup. | |
| void | initialize () |
| Initializes the root buffer with default processor. | |
| void | process_default () override |
| Processes this root buffer using default processing. | |
| const std::vector< std::shared_ptr< VKBuffer > > & | get_child_buffers () const |
| Gets all child buffers managed by this root. | |
| void | set_final_processor (std::shared_ptr< BufferProcessor > processor) |
| Sets an optional final processor. | |
| std::shared_ptr< BufferProcessor > | get_final_processor () const |
| Gets the current final processor. | |
| std::vector< std::shared_ptr< VKBuffer > > | get_buffers_by_usage (VKBuffer::Usage usage) const |
| Gets buffers filtered by usage type. | |
| void | cleanup_marked_buffers () |
| Removes buffers marked for deletion. | |
| size_t | get_buffer_count () const |
| Gets the number of child buffers. | |
| bool | has_buffer (const std::shared_ptr< VKBuffer > &buffer) const |
| Checks if a specific buffer is registered. | |
| void | set_token_active (bool active) override |
| Activates/deactivates processing for the current token. | |
| bool | is_token_active () const override |
| Checks if the buffer is active for its assigned token. | |
| const std::vector< RenderableBufferInfo > & | get_renderable_buffers () const |
| Get list of buffers ready for rendering. | |
| void | clear_renderable_buffers () |
| Clear the renderable buffers list. | |
| Public Member Functions inherited from MayaFlux::Buffers::RootBuffer< VKBuffer > | |
| virtual void | add_child_buffer (std::shared_ptr< VKBuffer > buffer) |
| Adds a tributary buffer to this root buffer. | |
| virtual bool | try_add_child_buffer (std::shared_ptr< VKBuffer > buffer, std::string *rejection_reason=nullptr) |
| Attempts to add a child buffer without throwing exceptions. | |
| virtual void | remove_child_buffer (std::shared_ptr< VKBuffer > buffer) |
| Removes a tributary buffer from this root buffer. | |
| size_t | get_num_children () const |
| Gets the number of tributary buffers in the aggregation hierarchy. | |
| const std::vector< std::shared_ptr< VKBuffer > > & | get_child_buffers () const |
| Gets all tributary buffers in the aggregation hierarchy. | |
| void | clear () override |
| Resets all data values in this buffer and its tributaries. | |
| virtual void | set_processing_rate_hint (uint32_t tick_rate) |
| Sets processing rate hint for the buffer. | |
| virtual uint32_t | get_processing_rate_hint () const |
| Gets the processing rate hint. | |
| virtual void | enable_cross_modal_sharing (bool enabled) |
| Enables cross-modal data sharing. | |
| virtual bool | is_cross_modal_sharing_enabled () const |
| Checks if cross-modal sharing is enabled. | |
| bool | is_buffer_acceptable (std::shared_ptr< VKBuffer > buffer, std::string *rejection_reason=nullptr) const |
| Validates if a buffer is acceptable based on current token enforcement strategy. | |
| bool | has_pending_operations () const |
| Public Member Functions inherited from MayaFlux::Buffers::VKBuffer | |
| VKBuffer (size_t size_bytes, Usage usage, Kakshya::DataModality modality) | |
| Construct an unregistered VKBuffer. | |
| VKBuffer ()=default | |
| ~VKBuffer () override | |
| Virtual destructor. | |
| void | clear () override |
| Clear buffer contents. | |
| std::vector< Kakshya::DataVariant > | get_data () |
| Read buffer contents as Kakshya DataVariant. | |
| void | set_data (const std::vector< Kakshya::DataVariant > &data) |
| Write data into the buffer. | |
| void | resize (size_t new_size, bool preserve_data=false) |
| Resize buffer and recreate GPU resources if needed. | |
| size_t | get_size () const |
| Get current logical size in bytes. | |
| void | process_default () override |
| Run the buffer's default processor (if set and enabled) | |
| void | set_default_processor (std::shared_ptr< Buffers::BufferProcessor > processor) override |
| Set the buffer's default processor. | |
| std::shared_ptr< Buffers::BufferProcessor > | get_default_processor () const override |
| Get the currently attached default processor. | |
| std::shared_ptr< Buffers::BufferProcessingChain > | get_processing_chain () override |
| Access the buffer's processing chain. | |
| void | set_processing_chain (std::shared_ptr< Buffers::BufferProcessingChain > chain, bool force=false) override |
| Replace the buffer's processing chain. | |
| bool | has_data_for_cycle () const override |
| Checks if the buffer has data for the current processing cycle. | |
| bool | needs_removal () const override |
| Checks if the buffer should be removed from processing chains. | |
| void | mark_for_processing (bool has_data) override |
| Marks the buffer's data availability for the current processing cycle. | |
| void | mark_for_removal () override |
| Marks the buffer for removal from processing chains. | |
| void | enforce_default_processing (bool should_process) override |
| Controls whether the buffer should use default processing. | |
| bool | needs_default_processing () override |
| Checks if the buffer should undergo default processing. | |
| bool | try_acquire_processing () override |
| Try to acquire processing lock for this buffer. | |
| void | release_processing () override |
| Release previously acquired processing lock. | |
| bool | is_processing () const override |
| Query whether the buffer is currently being processed. | |
| vk::Buffer & | get_buffer () |
| Get VkBuffer handle (VK_NULL_HANDLE if not registered) | |
| vk::DeviceSize | get_size_bytes () const |
| vk::Format | get_format () const |
| Convert modality to a recommended VkFormat. | |
| bool | is_initialized () const |
| Check whether Vulkan handles are present (buffer registered) | |
| virtual void | setup_processors (ProcessingToken token) |
| Setup processors with a processing token. | |
| Kakshya::DataModality | get_modality () const |
| Get the buffer's semantic modality. | |
| const std::vector< Kakshya::DataDimension > & | get_dimensions () const |
| Get the inferred data dimensions for the buffer contents. | |
| void | set_modality (Kakshya::DataModality modality) |
| Update the semantic modality and re-infer dimensions. | |
| Usage | get_usage () const |
| Retrieve the declared usage intent. | |
| void | set_buffer (vk::Buffer buffer) |
| Set VkBuffer handle after backend allocation. | |
| void | set_memory (vk::DeviceMemory memory) |
| Set device memory handle after backend allocation. | |
| void | set_mapped_ptr (void *ptr) |
| Set mapped host pointer (for host-visible allocations) | |
| void | set_buffer_resources (const VKBufferResources &resources) |
| Set all buffer resources at once. | |
| const VKBufferResources & | get_buffer_resources () |
| Get all buffer resources at once. | |
| bool | is_host_visible () const |
| Whether this VKBuffer should be host-visible. | |
| vk::BufferUsageFlags | get_usage_flags () const |
| Get appropriate VkBufferUsageFlags for creation based on Usage. | |
| vk::MemoryPropertyFlags | get_memory_properties () const |
| Get appropriate VkMemoryPropertyFlags for allocation based on Usage. | |
| void * | get_mapped_ptr () const |
| Get mapped host pointer (nullptr if not host-visible or unmapped) | |
| void | mark_dirty_range (size_t offset, size_t size) |
| Get device memory handle. | |
| void | mark_invalid_range (size_t offset, size_t size) |
| Mark a range as invalid (needs download) | |
| std::vector< std::pair< size_t, size_t > > | get_and_clear_dirty_ranges () |
| Retrieve and clear all dirty ranges. | |
| std::vector< std::pair< size_t, size_t > > | get_and_clear_invalid_ranges () |
| Retrieve and clear all invalid ranges. | |
| void | set_pipeline_window (RenderPipelineID id, const std::shared_ptr< Core::Window > &window) |
| Associate this buffer with a window for rendering. | |
| std::shared_ptr< Core::Window > | get_pipeline_window (RenderPipelineID id) const |
| Get the window associated with this buffer. | |
| bool | has_render_pipeline () const |
| Check if this buffer has a rendering pipeline configured. | |
| std::unordered_map< RenderPipelineID, std::shared_ptr< Core::Window > > | get_render_pipelines () const |
| Get all render pipelines associated with this buffer. | |
| void | set_pipeline_command (RenderPipelineID pipeline_id, CommandBufferID cmd_id) |
| Store recorded command buffer for a pipeline. | |
| CommandBufferID | get_pipeline_command (RenderPipelineID pipeline_id) const |
| Get recorded command buffer for a pipeline. | |
| void | clear_pipeline_commands () |
| Clear all recorded commands (called after presentation) | |
| void | set_vertex_layout (const Kakshya::VertexLayout &layout) |
| Set vertex layout for this buffer. | |
| std::optional< Kakshya::VertexLayout > | get_vertex_layout () const |
| Get vertex layout if set. | |
| bool | has_vertex_layout () const |
| Check if this buffer has vertex layout configured. | |
| void | clear_vertex_layout () |
| Clear vertex layout. | |
| std::shared_ptr< Buffer > | clone_to (uint8_t dest_desc) override |
| Creates a clone of this buffer for a specific channel or usage enum. | |
| std::shared_ptr< VKBuffer > | clone_to (Usage usage) |
| Create a clone of this buffer with the same data and properties. | |
| void | force_internal_usage (bool internal) override |
| Set whether this buffer is for internal engine usage. | |
| bool | is_internal_only () const override |
| Check whether this buffer is for internal engine usage. | |
| Public Member Functions inherited from MayaFlux::Buffers::Buffer | |
| virtual | ~Buffer ()=default |
| Virtual destructor for proper resource management. | |
Private Member Functions | |
| std::shared_ptr< BufferProcessor > | create_default_processor () |
| Creates the default graphics batch processor. | |
| void | add_renderable_buffer (const RenderableBufferInfo &info) |
| Add a buffer to the renderable list. | |
Private Attributes | |
| std::vector< RenderableBufferInfo > | m_renderable_buffers |
| std::shared_ptr< BufferProcessor > | m_final_processor |
| Optional final processor (rarely used in graphics) | |
| std::vector< std::shared_ptr< VKBuffer > > | m_pending_removal |
| Buffers pending removal (cleaned up in next process cycle) | |
| bool | m_token_active {} |
| Flag indicating if this buffer is active for token processing. | |
Friends | |
| class | GraphicsBatchProcessor |
Additional Inherited Members | |
| Public Types inherited from MayaFlux::Buffers::VKBuffer | |
| enum class | Usage : uint8_t { STAGING , DEVICE , COMPUTE , VERTEX , INDEX , UNIFORM } |
| Protected Member Functions inherited from MayaFlux::Buffers::RootBuffer< VKBuffer > | |
| void | add_child_buffer_direct (std::shared_ptr< VKBuffer > buffer) |
| void | remove_child_buffer_direct (std::shared_ptr< VKBuffer > buffer) |
| void | process_pending_buffer_operations () |
| Process pending operations - call this at start of processing cycles. | |
| Protected Attributes inherited from MayaFlux::Buffers::RootBuffer< VKBuffer > | |
| std::vector< std::shared_ptr< VKBuffer > > | m_child_buffers |
| Vector of tributary buffers that contribute to this root buffer. | |
| uint32_t | m_processing_rate_hint |
| Processing rate hint for this buffer. | |
| bool | m_cross_modal_sharing |
| Whether this buffer allows cross-modal data sharing. | |
| TokenEnforcementStrategy | m_token_enforcement_strategy |
| Current token enforcement strategy for this root buffer. | |
| ProcessingToken | m_preferred_processing_token |
| Preferred processing token for this root buffer. | |
| std::atomic< uint32_t > | m_pending_count |
| struct MayaFlux::Buffers::RootBuffer::PendingBufferOp | m_pending_ops [MAX_PENDING] |
| Static Protected Attributes inherited from MayaFlux::Buffers::RootBuffer< VKBuffer > | |
| static constexpr size_t | MAX_PENDING |
Detailed Description
Root container for GPU buffer lifecycle management and batch processing.
RootGraphicsBuffer serves as the organizational hub for graphics buffers in a processing domain. Unlike RootAudioBuffer which accumulates and mixes sample data, RootGraphicsBuffer focuses on:
- Managing the lifecycle of VKBuffer instances (GPU resources)
- Coordinating batch processing across multiple GPU buffers
- Tracking active GPU resources for backend queries
- Providing cleanup mechanisms for marked buffers
Key Differences from RootAudioBuffer:
- No data accumulation or mixing (each buffer is independent)
- No "final output" concept (buffers are consumed by shaders/render passes)
- Focuses on resource management and batch coordination
- Processing means executing BufferProcessor chains (uploads, compute, etc.)
Token Compatibility:
- Primary Token: GRAPHICS_BACKEND (frame-rate, GPU, parallel)
- Compatible with GPU_PROCESS tokens for compute operations
- Not compatible with AUDIO_BACKEND tokens (different processing model)
Definition at line 36 of file RootGraphicsBuffer.hpp.
The documentation for this class was generated from the following files:
