MayaFlux::Nodes::GpuSync::TextureNode Class Reference

Base class for texture-generating nodes. More...

#include <TextureNode.hpp>

Inheritance diagram for MayaFlux::Nodes::GpuSync::TextureNode:

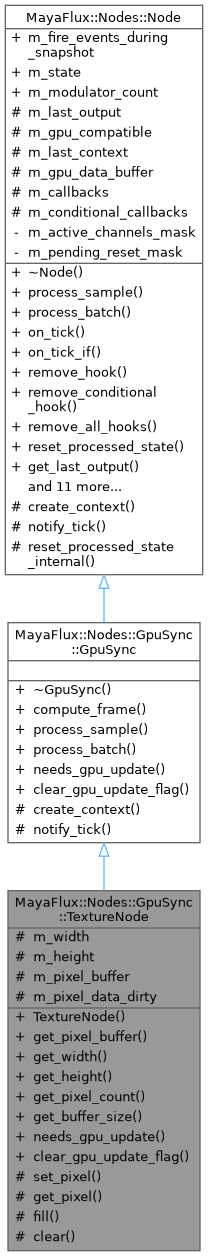

Collaboration diagram for MayaFlux::Nodes::GpuSync::TextureNode:

Public Member Functions
	TextureNode (uint32_t width, uint32_t height)
std::span< const float >	get_pixel_buffer () const
	Get pixel buffer.
uint32_t	get_width () const
uint32_t	get_height () const
size_t	get_pixel_count () const
	Get total number of pixels.
size_t	get_buffer_size () const
	Get buffer size in bytes.
bool	needs_gpu_update () const override
	Check if pixel data changed since last GPU sync.
void	clear_gpu_update_flag () override
	Clear the dirty flag after GPU upload completes.
Public Member Functions inherited from MayaFlux::Nodes::GpuSync::GpuSync
	~GpuSync () override=default
virtual void	compute_frame ()=0
	Compute GPU data for this frame.
double	process_sample (double) override
	Single sample processing hook.
std::vector< double >	process_batch (unsigned int num_samples) override
	Batch processing for GPU nodes.
Public Member Functions inherited from MayaFlux::Nodes::Node
virtual	~Node ()=default
	Virtual destructor for proper cleanup of derived classes.
virtual void	on_tick (const NodeHook &callback)
	Registers a callback to be called on each tick.
virtual void	on_tick_if (const NodeHook &callback, const NodeCondition &condition)
	Registers a conditional callback.
virtual bool	remove_hook (const NodeHook &callback)
	Removes a previously registered callback.
virtual bool	remove_conditional_hook (const NodeCondition &callback)
	Removes a previously registered conditional callback.
virtual void	remove_all_hooks ()
	Removes all registered callbacks.
virtual void	reset_processed_state ()
	Resets the processed state of the node and any attached input nodes.
virtual double	get_last_output ()
	Retrieves the most recent output value produced by the node.
void	register_channel_usage (uint32_t channel_id)
	Mark the specificed channel as a processor/user.
void	unregister_channel_usage (uint32_t channel_id)
	Removes the specified channel from the usage tracking.
bool	is_used_by_channel (uint32_t channel_id) const
	Checks if the node is currently used by a specific channel.
void	request_reset_from_channel (uint32_t channel_id)
	Requests a reset of the processed state from a specific channel.
const std::atomic< uint32_t > &	get_channel_mask () const
	Retrieves the current bitmask of active channels using this node.
NodeContext &	get_last_context ()
	Retrieves the last created context object.
void	set_gpu_compatible (bool compatible)
	Sets whether the node is compatible with GPU processing.
bool	is_gpu_compatible () const
	Checks if the node supports GPU processing.
std::span< const float >	get_gpu_data_buffer () const
	Provides access to the GPU data buffer.
virtual void	save_state ()=0
	Saves the node's current state for later restoration Recursively cascades through all connected modulator nodes Protected - only NodeSourceProcessor and NodeBuffer can call.
virtual void	restore_state ()=0
	Restores the node's state from the last save Recursively cascades through all connected modulator nodes Protected - only NodeSourceProcessor and NodeBuffer can call.

Protected Member Functions
void	set_pixel (uint32_t x, uint32_t y, float r, float g, float b, float a=1.0F)
	Set pixel color at (x, y)
std::array< float, 4 >	get_pixel (uint32_t x, uint32_t y) const
	Get pixel color at (x, y)
void	fill (float r, float g, float b, float a=1.0F)
	Fill entire texture with solid color.
void	clear ()
	Clear texture to black.
Protected Member Functions inherited from MayaFlux::Nodes::GpuSync::GpuSync
std::unique_ptr< NodeContext >	create_context (double) override
	GPU sync nodes don't produce scalar contexts.
void	notify_tick (double) override
	GPU sync nodes don't emit tick callbacks.
Protected Member Functions inherited from MayaFlux::Nodes::Node
virtual void	reset_processed_state_internal ()
	Resets the processed state of the node directly.

Protected Attributes
uint32_t	m_width
uint32_t	m_height
std::vector< float >	m_pixel_buffer
bool	m_pixel_data_dirty { true }
	Flag: pixel data changed since last GPU upload.
Protected Attributes inherited from MayaFlux::Nodes::Node
double	m_last_output { 0 }
	The most recent sample value generated by this oscillator.
bool	m_gpu_compatible {}
	Flag indicating if the node supports GPU processing This flag is set by derived classes to indicate whether the node can be processed on the GPU.
std::unique_ptr< NodeContext >	m_last_context
	The last context object created for callbacks.
std::vector< float >	m_gpu_data_buffer
	GPU data buffer for context objects.
std::vector< NodeHook >	m_callbacks
	Collection of standard callback functions.
std::vector< std::pair< NodeHook, NodeCondition > >	m_conditional_callbacks
	Collection of conditional callback functions with their predicates.

Additional Inherited Members
Public Attributes inherited from MayaFlux::Nodes::Node
bool	m_fire_events_during_snapshot = false
	Internal flag controlling whether notify_tick fires during state snapshots Default: false (events don't fire during isolated buffer processing) Can be exposed in future if needed via concrete implementation in parent.
std::atomic< Utils::NodeState >	m_state { Utils::NodeState::INACTIVE }
	Atomic state flag tracking the node's processing status.
std::atomic< uint32_t >	m_modulator_count { 0 }
	Counter tracking how many other nodes are using this node as a modulator.

Detailed Description

Base class for texture-generating nodes.

Provides common functionality for managing texture dimensions and pixel data in RGBA float format. Derived classes implement compute_frame() to define specific texture generation or processing algorithms.

Texture data is stored as a flat array in row-major order: [R0,G0,B0,A0, R1,G1,B1,A1, ..., Rn,Gn,Bn,An]

Definition at line 18 of file TextureNode.hpp.

---

The documentation for this class was generated from the following files:

• TextureNode.hpp
• TextureNode.cpp
