Buffer for aggregating multiple geometry nodes with independent topologies. More...

#include <CompositeGeometryBuffer.hpp>

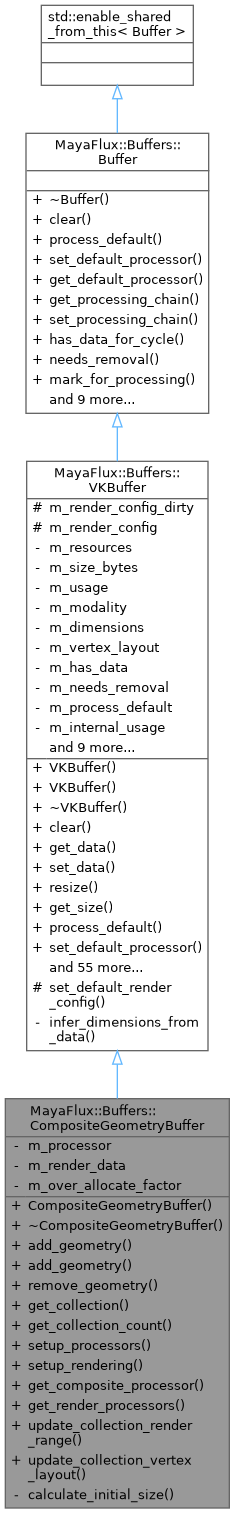

Inheritance diagram for MayaFlux::Buffers::CompositeGeometryBuffer:

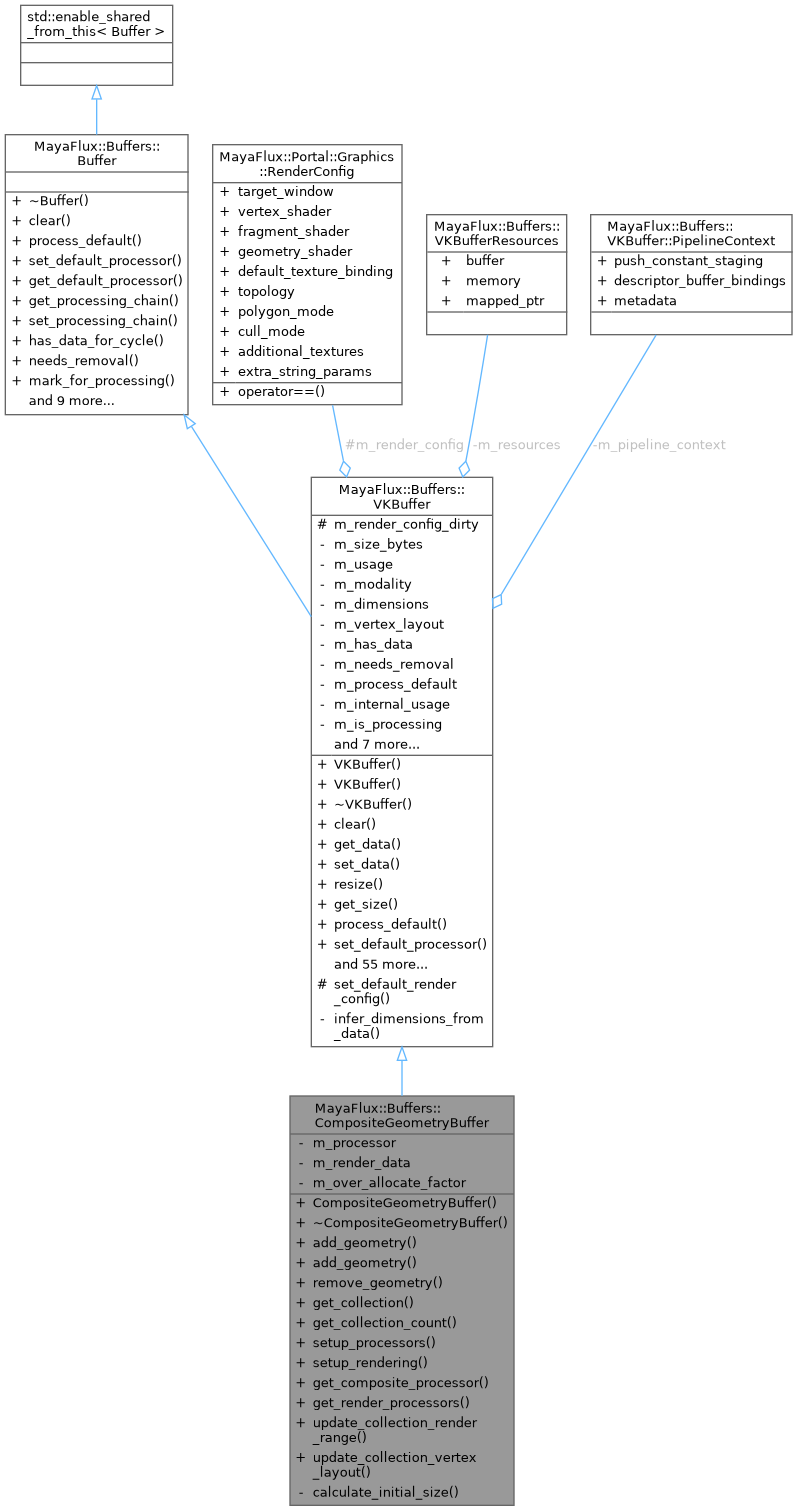

Collaboration diagram for MayaFlux::Buffers::CompositeGeometryBuffer:

Public Member Functions
	CompositeGeometryBuffer (size_t initial_capacity=1024 *1024, float over_allocate_factor=1.5F)
	Create empty composite buffer.

	~CompositeGeometryBuffer () override=default

void	add_geometry (const std::string &name, const std::shared_ptr< Nodes::GpuSync::GeometryWriterNode > &node, Portal::Graphics::PrimitiveTopology topology, const std::shared_ptr< Core::Window > &target_window)
	Add a geometry collection.

void	add_geometry (const std::string &name, const std::shared_ptr< Nodes::GpuSync::GeometryWriterNode > &node, Portal::Graphics::PrimitiveTopology topology, const RenderConfig &config)
	Add a geometry collection with explicit render config.

void	remove_geometry (const std::string &name)
	Remove a geometry collection.

std::optional< CompositeGeometryProcessor::GeometryCollection >	get_collection (const std::string &name) const
	Get geometry collection metadata.

size_t	get_collection_count () const
	Get number of geometry collections.

void	setup_processors (ProcessingToken token) override
	Initialize buffer processors.

void	setup_rendering (const RenderConfig &config)
	Setup rendering (DEPRECATED for CompositeGeometryBuffer)

std::shared_ptr< CompositeGeometryProcessor >	get_composite_processor () const
	Get the composite processor managing uploads.

std::vector< std::shared_ptr< RenderProcessor > >	get_render_processors () const
	Get all render processors (one per collection)

void	update_collection_render_range (const std::string &name, uint32_t vertex_offset, uint32_t vertex_count)
	Update the vertex range for a specific geometry collection's render processor.

void	update_collection_vertex_layout (const std::string &name, const Kakshya::VertexLayout &layout)
	Push a topology-specific vertex layout to the matching RenderProcessor.

Public Member Functions inherited from MayaFlux::Buffers::VKBuffer
	VKBuffer (size_t size_bytes, Usage usage, Kakshya::DataModality modality)
	Construct an unregistered VKBuffer.

	VKBuffer ()=default

	~VKBuffer () override
	Virtual destructor.

void	clear () override
	Clear buffer contents.

std::vector< Kakshya::DataVariant >	get_data ()
	Read buffer contents as Kakshya DataVariant.

void	set_data (const std::vector< Kakshya::DataVariant > &data)
	Write data into the buffer.

void	resize (size_t new_size, bool preserve_data=false)
	Resize buffer and recreate GPU resources if needed.

size_t	get_size () const
	Get current logical size in bytes.

void	process_default () override
	Run the buffer's default processor (if set and enabled)

void	set_default_processor (const std::shared_ptr< BufferProcessor > &processor) override
	Set the buffer's default processor.

std::shared_ptr< Buffers::BufferProcessor >	get_default_processor () const override
	Get the currently attached default processor.

std::shared_ptr< Buffers::BufferProcessingChain >	get_processing_chain () override
	Access the buffer's processing chain.

void	set_processing_chain (const std::shared_ptr< BufferProcessingChain > &chain, bool force=false) override
	Replace the buffer's processing chain.

bool	has_data_for_cycle () const override
	Checks if the buffer has data for the current processing cycle.

bool	needs_removal () const override
	Checks if the buffer should be removed from processing chains.

void	mark_for_processing (bool has_data) override
	Marks the buffer's data availability for the current processing cycle.

void	mark_for_removal () override
	Marks the buffer for removal from processing chains.

void	enforce_default_processing (bool should_process) override
	Controls whether the buffer should use default processing.

bool	needs_default_processing () override
	Checks if the buffer should undergo default processing.

bool	try_acquire_processing () override
	Try to acquire processing lock for this buffer.

void	release_processing () override
	Release previously acquired processing lock.

bool	is_processing () const override
	Query whether the buffer is currently being processed.

vk::Buffer &	get_buffer ()
	Get VkBuffer handle (VK_NULL_HANDLE if not registered)

vk::DeviceSize	get_size_bytes () const

vk::Format	get_format () const
	Convert modality to a recommended VkFormat.

bool	is_initialized () const
	Check whether Vulkan handles are present (buffer registered)

Kakshya::DataModality	get_modality () const
	Get the buffer's semantic modality.

const std::vector< Kakshya::DataDimension > &	get_dimensions () const
	Get the inferred data dimensions for the buffer contents.

void	set_modality (Kakshya::DataModality modality)
	Update the semantic modality and re-infer dimensions.

Usage	get_usage () const
	Retrieve the declared usage intent.

void	set_buffer (vk::Buffer buffer)
	Set VkBuffer handle after backend allocation.

void	set_memory (vk::DeviceMemory memory)
	Set device memory handle after backend allocation.

void	set_mapped_ptr (void *ptr)
	Set mapped host pointer (for host-visible allocations)

void	set_buffer_resources (const VKBufferResources &resources)
	Set all buffer resources at once.

const VKBufferResources &	get_buffer_resources ()
	Get all buffer resources at once.

bool	is_host_visible () const
	Whether this VKBuffer should be host-visible.

vk::BufferUsageFlags	get_usage_flags () const
	Get appropriate VkBufferUsageFlags for creation based on Usage.

vk::MemoryPropertyFlags	get_memory_properties () const
	Get appropriate VkMemoryPropertyFlags for allocation based on Usage.

void *	get_mapped_ptr () const
	Get mapped host pointer (nullptr if not host-visible or unmapped)

void	mark_dirty_range (size_t offset, size_t size)
	Get device memory handle.

void	mark_invalid_range (size_t offset, size_t size)
	Mark a range as invalid (needs download)

std::vector< std::pair< size_t, size_t > >	get_and_clear_dirty_ranges ()
	Retrieve and clear all dirty ranges.

std::vector< std::pair< size_t, size_t > >	get_and_clear_invalid_ranges ()
	Retrieve and clear all invalid ranges.

void	set_pipeline_window (RenderPipelineID id, const std::shared_ptr< Core::Window > &window)
	Associate this buffer with a window for rendering.

std::shared_ptr< Core::Window >	get_pipeline_window (RenderPipelineID id) const
	Get the window associated with this buffer.

bool	has_render_pipeline () const
	Check if this buffer has a rendering pipeline configured.

std::unordered_map< RenderPipelineID, std::shared_ptr< Core::Window > >	get_render_pipelines () const
	Get all render pipelines associated with this buffer.

void	set_pipeline_command (RenderPipelineID pipeline_id, CommandBufferID cmd_id)
	Store recorded command buffer for a pipeline.

CommandBufferID	get_pipeline_command (RenderPipelineID pipeline_id) const
	Get recorded command buffer for a pipeline.

void	clear_pipeline_commands ()
	Clear all recorded commands (called after presentation)

void	set_vertex_layout (const Kakshya::VertexLayout &layout)
	Set vertex layout for this buffer.

std::optional< Kakshya::VertexLayout >	get_vertex_layout () const
	Get vertex layout if set.

bool	has_vertex_layout () const
	Check if this buffer has vertex layout configured.

void	clear_vertex_layout ()
	Clear vertex layout.

std::shared_ptr< Buffer >	clone_to (uint8_t dest_desc) override
	Creates a clone of this buffer for a specific channel or usage enum.

std::shared_ptr< VKBuffer >	clone_to (Usage usage)
	Create a clone of this buffer with the same data and properties.

void	force_internal_usage (bool internal) override
	Set whether this buffer is for internal engine usage.

bool	is_internal_only () const override
	Check whether this buffer is for internal engine usage.

PipelineContext &	get_pipeline_context ()
	Access the pipeline context for custom metadata (non-const)

const PipelineContext &	get_pipeline_context () const
	Access the pipeline context for custom metadata (const)

virtual void	mark_render_config_dirty (bool is_dirty=true)
	Mark config as changed (processors will detect and react)

bool	is_render_config_dirty () const
	Check if config has changed since last frame.

RenderConfig	get_render_config () const
	Get the current render configuration.

virtual void	set_render_config (const RenderConfig &config)
	Update the render configuration and mark as dirty.

Public Member Functions inherited from MayaFlux::Buffers::Buffer
virtual	~Buffer ()=default
	Virtual destructor for proper resource management.

Static Private Member Functions
static size_t	calculate_initial_size (size_t requested_capacity)
	Calculate initial buffer size.

Private Attributes
std::shared_ptr< CompositeGeometryProcessor >	m_processor

std::unordered_map< std::string, RenderData >	m_render_data

float	m_over_allocate_factor

Additional Inherited Members
Public Types inherited from MayaFlux::Buffers::VKBuffer
enum class	Usage : uint8_t { STAGING , DEVICE , COMPUTE , VERTEX , INDEX , UNIFORM }

using	RenderConfig = Portal::Graphics::RenderConfig

Protected Member Functions inherited from MayaFlux::Buffers::VKBuffer
void	set_default_render_config (const RenderConfig &config)
	Called by derived classes to set their context-specific defaults.

Protected Attributes inherited from MayaFlux::Buffers::VKBuffer
bool	m_render_config_dirty {}

RenderConfig	m_render_config

Detailed Description

Buffer for aggregating multiple geometry nodes with independent topologies.

Allows manual composition of multiple GeometryWriterNodes, each rendered with its own primitive topology. All geometry is aggregated into a single GPU buffer for efficient upload, but rendered with separate draw calls per topology.

Philosophy:

Manual composition for full control
Each geometry can have different topology (LINE_STRIP, LINE_LIST, POINT_LIST, etc.)
Single buffer upload, multiple render passes
Efficient batching without topology constraints

Key Differences from GeometryBuffer:

Accepts multiple nodes (not single GeometryWriterNode)
Each node can have different topology
Automatically creates multiple RenderProcessors

Key Differences from NetworkGeometryBuffer:

Manual node registration (not NodeNetwork-driven)
Explicit topology specification per node
Not tied to network operators or topology inference

Usage:

auto path_node = vega.PathGeneratorNode(...);
auto normals_node = vega.PointCollectionNode();
// ... populate normals

auto composite = std::make_shared<CompositeGeometryBuffer>();
composite->add_geometry("path", path_node, PrimitiveTopology::LINE_STRIP);
composite->add_geometry("normals", normals_node, PrimitiveTopology::LINE_LIST);
composite->add_geometry("control_points", points_node, PrimitiveTopology::POINT_LIST);

composite->setup_processors(ProcessingToken::GRAPHICS_BACKEND);
composite->setup_rendering({.target_window = window});

Each frame:

CompositeGeometryProcessor aggregates all nodes → single GPU upload
Multiple RenderProcessors draw subsets with different topologies

Definition at line 60 of file CompositeGeometryBuffer.hpp.
