MayaFlux::Kakshya::DataDimension Struct Reference

Minimal dimension descriptor focusing on structure only. More...

#include <NDData.hpp>

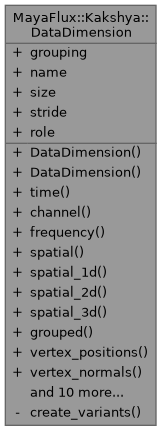

Collaboration diagram for MayaFlux::Kakshya::DataDimension:

Classes
struct	ComponentGroup
	Grouping information for sub-dimensions. More...

Public Types
enum class	Role : uint8_t {   TIME , CHANNEL , SPATIAL_X , SPATIAL_Y ,   SPATIAL_Z , FREQUENCY , POSITION , NORMAL ,   TANGENT , BITANGENT , UV , COLOR ,   INDEX , MIP_LEVEL , CUSTOM }
	Semantic role of the dimension. More...
using	DataModule = std::pair< std::vector< DataVariant >, std::vector< DataDimension > >
	Data container combining variants and dimensions.

Public Member Functions
	DataDimension ()=default
	DataDimension (std::string n, uint64_t s, uint64_t st=1, Role r=Role::CUSTOM)
	Construct a dimension descriptor.

Static Public Member Functions
static DataDimension	time (uint64_t samples, std::string name="time")
	Convenience constructor for a temporal (time) dimension.
static DataDimension	channel (uint64_t count, uint64_t stride=1)
	Convenience constructor for a channel dimension.
static DataDimension	frequency (uint64_t bins, std::string name="frequency")
	Convenience constructor for a frequency dimension.
static DataDimension	spatial (uint64_t size, char axis, uint64_t stride=1, std::string name="spatial")
	Convenience constructor for a spatial dimension.
static DataDimension	spatial_1d (uint64_t width)
	Convenience constructor for an array dimension.
static DataDimension	spatial_2d (uint64_t width, uint64_t height)
	Convenience constructor for a 2D spatial dimension.
static DataDimension	spatial_3d (uint64_t width, uint64_t height, uint64_t depth)
	Convenience constructor for a 3D spatial dimension.
static DataDimension	grouped (std::string name, uint64_t element_count, uint8_t components_per_element, Role role=Role::CUSTOM)
	Create dimension with component grouping.
static DataDimension	vertex_positions (uint64_t count)
	Create dimension for vertex positions (vec3)
static DataDimension	vertex_normals (uint64_t count)
	Create dimension for vertex normals (vec3)
static DataDimension	texture_coords (uint64_t count)
	Create dimension for texture coordinates (vec2)
static DataDimension	vertex_colors (uint64_t count, bool has_alpha=false)
	Create dimension for colors (vec3 or vec4)
static DataDimension	mipmap_levels (uint64_t levels)
	Create dimension for mipmap levels.
template<typename T >
static DataModule	create_for_modality (DataModality modality, const std::vector< uint64_t > &shape, T default_value=T {}, MemoryLayout layout=MemoryLayout::ROW_MAJOR, OrganizationStrategy strategy=OrganizationStrategy::PLANAR)
	Create data module for a specific modality.
static std::vector< DataDimension >	create_dimensions (DataModality modality, const std::vector< uint64_t > &shape, MemoryLayout layout=MemoryLayout::ROW_MAJOR)
	Create dimension descriptors for a data modality.
template<typename T >
static DataModule	create_audio_1d (uint64_t samples, T default_value=T {})
	Create 1D audio data module.
template<typename T >
static DataModule	create_audio_multichannel (uint64_t samples, uint64_t channels, T default_value=T {})
	Create multi-channel audio data module.
template<typename T >
static DataModule	create_image_2d (uint64_t height, uint64_t width, T default_value=T {})
	Create 2D image data module.
template<typename T >
static DataModule	create_spectral_2d (uint64_t time_windows, uint64_t frequency_bins, T default_value=T {})
	Create 2D spectral data module.
static std::vector< uint64_t >	calculate_strides (const std::vector< uint64_t > &shape, MemoryLayout layout)
	Calculate memory strides based on shape and layout.

Public Attributes
std::optional< ComponentGroup >	grouping
std::string	name
	Human-readable identifier for the dimension.
uint64_t	size {}
	Number of elements in this dimension.
uint64_t	stride {}
	Memory stride (elements between consecutive indices)
Role	role = Role::CUSTOM
	Semantic hint for common operations.

Static Private Member Functions
template<typename T >
static std::vector< DataVariant >	create_variants (DataModality modality, const std::vector< uint64_t > &shape, T default_value, OrganizationStrategy org=OrganizationStrategy::PLANAR)
	Create data variants for a specific modality.

Detailed Description

Minimal dimension descriptor focusing on structure only.

DataDimension describes a single axis of an N-dimensional dataset, providing semantic hints (such as TIME, CHANNEL, SPATIAL_X, etc.) and structural information (name, size, stride).

This abstraction enables containers to describe arbitrary data organizations, supporting digital-first, data-driven processing without imposing analog metaphors (e.g., "track", "tape", etc.).

Definition at line 138 of file NDData.hpp.

---

The documentation for this struct was generated from the following files:

• NDData.hpp
• NDData.cpp
