Digital waveguide synthesis via uni- and bidirectional delay-line architectures. More...

#include <WaveguideNetwork.hpp>

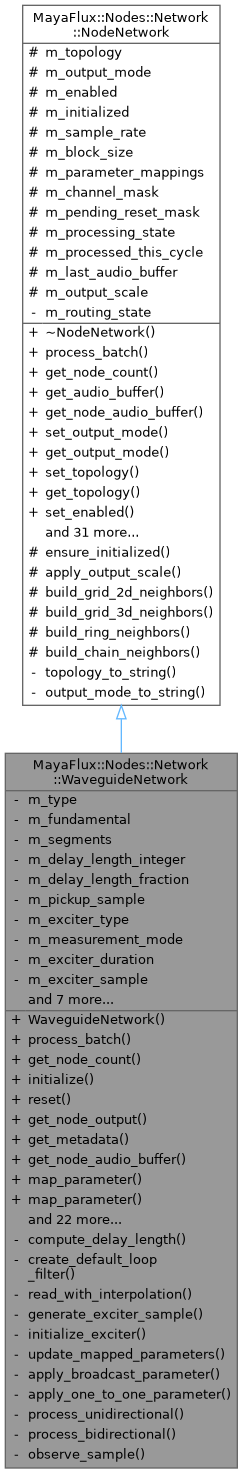

Inheritance diagram for MayaFlux::Nodes::Network::WaveguideNetwork:

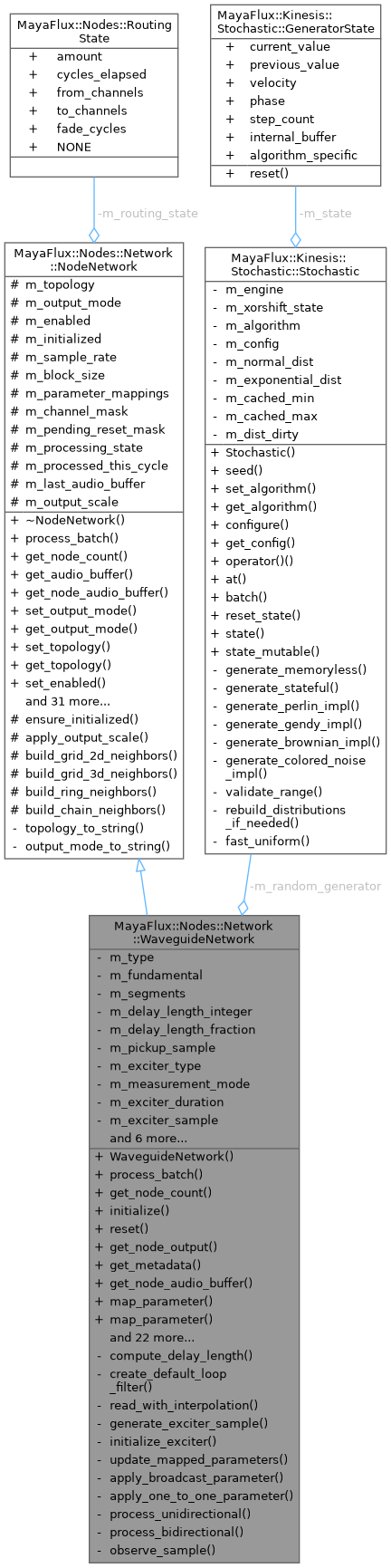

Collaboration diagram for MayaFlux::Nodes::Network::WaveguideNetwork:

Classes
struct	WaveguideSegment
	1D delay-line segment supporting both uni- and bidirectional propagation More...

Public Types
enum class	WaveguideType : uint8_t { STRING , TUBE }
	Physical structure being modeled. More...

enum class	ExciterType : uint8_t { IMPULSE , NOISE_BURST , FILTERED_NOISE , SAMPLE , CONTINUOUS }
	Excitation signal types for waveguide synthesis. More...

enum class	MeasurementMode : uint8_t { PRESSURE , VELOCITY }
	Whether node outputs represent pressure or velocity (for future use) Pressure: output is physical pressure at pickup (p_plus + p_minus) Velocity: output is particle velocity at pickup (p_plus - p_minus) More...

Public Member Functions
	WaveguideNetwork (WaveguideType type, double fundamental_freq, double sample_rate=48000.0)
	Create waveguide network with specified type and frequency.

void	process_batch (unsigned int num_samples) override
	Process the network for the given number of samples.

size_t	get_node_count () const override
	Get the number of nodes in the network.

void	initialize () override
	Called once before first process_batch()

void	reset () override
	Reset network to initial state.

std::optional< double >	get_node_output (size_t index) const override
	Get output of specific internal node (for ONE_TO_ONE mapping)

std::unordered_map< std::string, std::string >	get_metadata () const override
	Get network metadata for debugging/visualization.

std::optional< std::span< const double > >	get_node_audio_buffer (size_t index) const override
	Get output of specific internal node as audio buffer (for ONE_TO_ONE mapping)

void	map_parameter (const std::string &param_name, const std::shared_ptr< Node > &source, MappingMode mode=MappingMode::BROADCAST) override
	Map external node output to network parameter.

void	map_parameter (const std::string &param_name, const std::shared_ptr< NodeNetwork > &source) override
	Map external node network to network parameters (ONE_TO_ONE)

void	unmap_parameter (const std::string &param_name) override
	Remove parameter mapping.

void	pluck (double position=0.5, double strength=1.0)
	Pluck the string at a normalized position.

void	strike (double position=0.5, double strength=1.0)
	Strike the string/tube with an impulse.

void	set_exciter_type (ExciterType type)
	Set exciter type.

ExciterType	get_exciter_type () const
	Get current exciter type.

void	set_exciter_duration (double seconds)
	Set noise burst duration for exciter.

void	set_exciter_filter (const std::shared_ptr< Filters::Filter > &filter)
	Set filter for shaped noise excitation.

void	set_exciter_sample (const std::vector< double > &sample)
	Set custom excitation waveform.

void	set_exciter_node (const std::shared_ptr< Node > &node)
	Set continuous exciter node (for bowing/blowing)

void	set_fundamental (double freq)
	Set fundamental frequency.

double	get_fundamental () const
	Get current fundamental frequency.

void	set_loss_factor (double loss)
	Set per-sample energy loss factor.

double	get_loss_factor () const
	Get current loss factor.

void	set_loop_filter (const std::shared_ptr< Filters::Filter > &filter)
	Replace the loop filter.

void	set_pickup_position (double position)
	Set pickup position along the string.

double	get_pickup_position () const
	Get current pickup position.

WaveguideType	get_type () const
	Get waveguide type.

const std::vector< WaveguideSegment > &	get_segments () const
	Get read-only access to segments.

void	set_loop_filter_closed (const std::shared_ptr< Filters::Filter > &filter)
	Set filter for the closed-end termination (mouthpiece/nut)

void	set_loop_filter_open (const std::shared_ptr< Filters::Filter > &filter)
	Set filter for the open-end termination (bell/bridge)

void	set_measurement_mode (MeasurementMode mode)
	Set measurement mode for output.

MeasurementMode	get_measurement_mode () const
	Get current measurement mode.

Public Member Functions inherited from MayaFlux::Nodes::Network::NodeNetwork
virtual	~NodeNetwork ()=default

virtual std::optional< std::vector< double > >	get_audio_buffer () const
	Get cached audio buffer from last process_batch()

void	set_output_mode (OutputMode mode)
	Set the network's output routing mode.

OutputMode	get_output_mode () const
	Get the current output routing mode.

virtual void	set_topology (Topology topology)
	Set the network's topology.

Topology	get_topology () const
	Get the current topology.

void	set_enabled (bool enabled)
	Enable/disable the network.

bool	is_enabled () const
	Check if network is enabled.

void	set_output_scale (double scale)
	Set the scalar multiplier applied to the network's output buffer after processing.

double	get_output_scale () const
	Get the current output scale factor.

void	add_channel_usage (uint32_t channel_id)
	Register network usage on a specific channel.

void	remove_channel_usage (uint32_t channel_id)
	Unregister network from a specific channel.

bool	is_registered_on_channel (uint32_t channel_id) const
	Check if network is registered on a channel.

std::vector< uint32_t >	get_registered_channels () const
	Get all channels this network is registered on.

uint32_t	get_channel_mask () const
	Get channel mask (bitfield of registered channels)

void	set_channel_mask (uint32_t mask)
	Set channel mask directly.

bool	is_processed_this_cycle () const
	Check if network has been processed this cycle (lock-free)

void	mark_processing (bool processing)
	Mark network as processing or not (lock-free)

void	mark_processed (bool processed)
	Mark network as processed this cycle (lock-free)

bool	is_processing () const
	Check if network is currently processing (lock-free)

void	request_reset_from_channel (uint32_t channel_id)
	Request a reset from a specific channel.

virtual NetworkOperator *	get_operator ()

virtual const NetworkOperator *	get_operator () const

virtual bool	has_operator () const

const RoutingState &	get_routing_state () const
	Retrieves the current routing state of the network.

RoutingState &	get_routing_state ()
	Retrieves the current routing state of the network (non-const)

bool	needs_channel_routing () const
	Checks if the network is currently in a routing transition phase.

void	set_sample_rate (uint32_t sample_rate)

uint32_t	get_sample_rate () const

void	set_block_size (uint32_t block_size)

uint32_t	get_block_size () const

Private Member Functions
void	compute_delay_length ()

void	create_default_loop_filter ()

double	read_with_interpolation (const Memory::HistoryBuffer< double > &delay, size_t integer_part, double fraction) const
	Read from delay line with linear fractional interpolation.

double	generate_exciter_sample ()

void	initialize_exciter ()

void	update_mapped_parameters ()

void	apply_broadcast_parameter (const std::string &param, double value)

void	apply_one_to_one_parameter (const std::string &param, const std::shared_ptr< NodeNetwork > &source)

void	process_unidirectional (WaveguideSegment &seg, unsigned int num_samples)

void	process_bidirectional (WaveguideSegment &seg, unsigned int num_samples)

double	observe_sample (const WaveguideSegment &seg) const

Private Attributes
WaveguideType	m_type

double	m_fundamental

std::vector< WaveguideSegment >	m_segments

size_t	m_delay_length_integer { 0 }

double	m_delay_length_fraction { 0.0 }

size_t	m_pickup_sample { 0 }

ExciterType	m_exciter_type { ExciterType::NOISE_BURST }

MeasurementMode	m_measurement_mode { MeasurementMode::PRESSURE }

double	m_exciter_duration { 0.005 }

std::vector< double >	m_exciter_sample

std::shared_ptr< Filters::Filter >	m_exciter_filter

std::shared_ptr< Node >	m_exciter_node

size_t	m_exciter_sample_position {}

bool	m_exciter_active {}

size_t	m_exciter_samples_remaining {}

double	m_last_output {}

Kinesis::Stochastic::Stochastic	m_random_generator

Additional Inherited Members
Protected Member Functions inherited from MayaFlux::Nodes::Network::NodeNetwork
void	ensure_initialized ()
	Ensure initialize() is called exactly once.

void	apply_output_scale ()
	Apply m_output_scale to m_last_audio_buffer.

Static Protected Member Functions inherited from MayaFlux::Nodes::Network::NodeNetwork
static std::unordered_map< size_t, std::vector< size_t > >	build_grid_2d_neighbors (size_t width, size_t height)
	Build neighbor map for GRID_2D topology.

static std::unordered_map< size_t, std::vector< size_t > >	build_grid_3d_neighbors (size_t width, size_t height, size_t depth)
	Build neighbor map for GRID_3D topology.

static std::unordered_map< size_t, std::vector< size_t > >	build_ring_neighbors (size_t count)
	Build neighbor map for RING topology.

static std::unordered_map< size_t, std::vector< size_t > >	build_chain_neighbors (size_t count)
	Build neighbor map for CHAIN topology.

Protected Attributes inherited from MayaFlux::Nodes::Network::NodeNetwork
Topology	m_topology = Topology::INDEPENDENT

OutputMode	m_output_mode = OutputMode::NONE

bool	m_enabled = true

bool	m_initialized = false

uint32_t	m_sample_rate { 48000 }

uint32_t	m_block_size { 512 }

std::vector< ParameterMapping >	m_parameter_mappings

std::atomic< uint32_t >	m_channel_mask { 0 }
	Bitfield of channels this network is registered on.

std::atomic< uint32_t >	m_pending_reset_mask { 0 }

std::atomic< bool >	m_processing_state { false }
	Per-channel processing state (lock-free atomic flags)

std::atomic< bool >	m_processed_this_cycle { false }

std::vector< double >	m_last_audio_buffer

double	m_output_scale { 1.0 }
	Post-processing scalar applied to m_last_audio_buffer each batch.

Detailed Description

Digital waveguide synthesis via uni- and bidirectional delay-line architectures.

CONCEPT:

Digital waveguide synthesis models vibrating structures as traveling waves propagating through delay lines. A loop filter at each termination simulates frequency-dependent energy loss. This complements ModalNetwork (frequency-domain) with time-domain physical modeling: where ModalNetwork decomposes resonance into independent modes, WaveguideNetwork simulates wave propagation directly.

PROPAGATION MODES:

WaveguideSegment is direction-agnostic and supports both modes via PropagationMode:

UNIDIRECTIONAL (STRING): Single loop. Wave circulates on p_plus only. Karplus-Strong extended model. Loop filter at the single termination controls frequency-dependent damping.

exciter ──► p_plus ──► [delay N] ──► loop_filter ──► loss ──┐ output ◄── tap(pickup_sample) │ └─────────────────────────────────────────────────┘

BIDIRECTIONAL (TUBE): Two rails. p_plus travels toward the open end, p_minus returns toward the closed end. Reflection sign at each termination determines harmonic series:

Closed end (mouthpiece): pressure node, sign preserved → odd harmonics
Open end (bell): pressure antinode, sign inverted → adds even harmonics Output is the physical pressure sum p_plus[pickup] + p_minus[pickup].

exciter ──► p_plus ──► [delay N] ──► loop_filter ──► loss ──► open-end (−) output ◄── tap │ p_minus ◄── [delay N] ◄── loop_filter ◄── loss ◄── closed-end (+)

EXCITATION:

pluck() seeds p_plus with a triangle waveform (shaped initial displacement). strike() seeds p_plus with a Gaussian-windowed noise burst at the strike point. Both clear p_minus, ensuring a clean bidirectional state on re-excitation. Continuous and sample-based exciters inject per-sample into p_plus at the closed end on every call to process_batch().

USAGE:

// Plucked string
auto string = std::make_shared<WaveguideNetwork>(
    WaveguideNetwork::WaveguideType::STRING, 220.0);
string->pluck(0.3, 0.8);

// Cylindrical bore (clarinet-like, odd harmonics)
auto tube = std::make_shared<WaveguideNetwork>(
    WaveguideNetwork::WaveguideType::TUBE, 220.0);
tube->strike(0.1, 0.9);

// Via vega API:
auto string = vega.WaveguideNetwork(WaveguideType::STRING, 220.0)[0] | Audio;
string->pluck(0.3, 0.8);

PARAMETER MAPPING:

"frequency": Fundamental frequency in Hz (BROADCAST)
"damping" / "loss": Loop filter cutoff / loss factor (BROADCAST)
"position": Pickup position along the delay line (BROADCAST)

Definition at line 85 of file WaveguideNetwork.hpp.
