compute_delay_length()

void MayaFlux::Nodes::Network::WaveguideNetwork::compute_delay_length ( )

private

Definition at line 128 of file WaveguideNetwork.cpp.

{
    const double passes = (m_type == WaveguideType::TUBE) ? 4.0 : 1.0;
    double total_delay = static_cast<double>(m_sample_rate) / (passes * m_fundamental);

    total_delay -= 0.5;

    m_delay_length_integer = static_cast<size_t>(total_delay);
    m_delay_length_fraction = total_delay - static_cast<double>(m_delay_length_integer);

    m_pickup_sample = static_cast<size_t>(m_pickup_position * static_cast<double>(m_delay_length_integer));
}

References m_delay_length_fraction, m_delay_length_integer, m_fundamental, m_pickup_position, m_pickup_sample, MayaFlux::Nodes::Network::NodeNetwork::m_sample_rate, m_type, and TUBE.

Referenced by initialize(), set_fundamental(), and WaveguideNetwork().

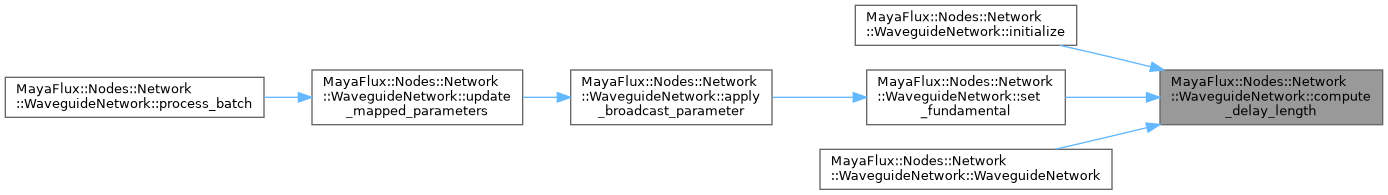

Here is the caller graph for this function:
