1D delay-line segment supporting both uni- and bidirectional propagation More...
#include <WaveguideNetwork.hpp>

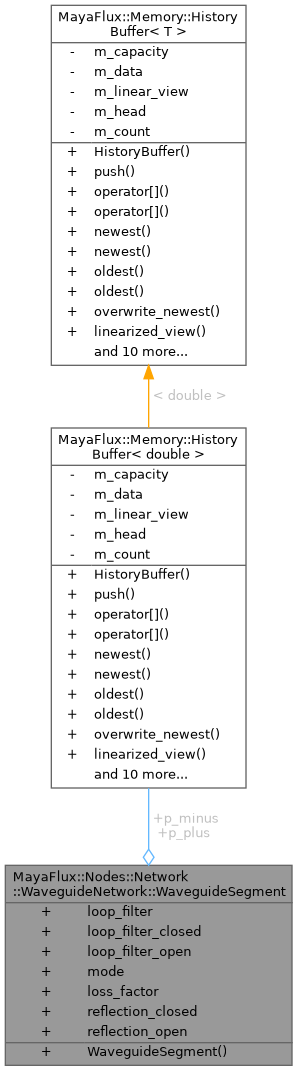

Collaboration diagram for MayaFlux::Nodes::Network::WaveguideNetwork::WaveguideSegment:
Public Types | |
| enum class | PropagationMode : uint8_t { UNIDIRECTIONAL , BIDIRECTIONAL } |
| Whether this segment uses one or two traveling-wave rails. More... | |
Public Member Functions | |
| WaveguideSegment (size_t length, PropagationMode prop_mode=PropagationMode::UNIDIRECTIONAL) | |
| Construct segment with both rails at the specified length. | |
Public Attributes | |
| Memory::HistoryBuffer< double > | p_plus |
| Forward-traveling wave rail. | |
| Memory::HistoryBuffer< double > | p_minus |
| Backward-traveling wave rail (BIDIRECTIONAL only) | |
| std::shared_ptr< Filters::Filter > | loop_filter |
| UNIDIRECTIONAL: single termination filter. | |
| std::shared_ptr< Filters::Filter > | loop_filter_closed |
| BIDIRECTIONAL: closed-end filter (mouthpiece/nut) | |
| std::shared_ptr< Filters::Filter > | loop_filter_open |
| BIDIRECTIONAL: open-end filter (bell/bridge) | |
| PropagationMode | mode { PropagationMode::UNIDIRECTIONAL } |
| double | loss_factor { 0.996 } |
| double | reflection_closed { -1.0 } |
| Reflection coefficient at closed end (pressure node) | |
| double | reflection_open { 1.0 } |
| Reflection coefficient at open end (pressure antinode) | |
Detailed Description
1D delay-line segment supporting both uni- and bidirectional propagation
UNIDIRECTIONAL (STRING): Only p_plus is active. Wave circulates in a single loop. p_minus is allocated but never written or read. Output tapped at pickup_sample along p_plus.
BIDIRECTIONAL (TUBE): Both rails active. p_plus travels toward the open end (bell), p_minus travels back toward the mouthpiece. At the closed end: p_minus[0] = -p_plus[end] (pressure inversion) At the open end: p_plus[0] = -p_minus[end] (approximate open reflection) Output is p_plus[pickup] + p_minus[pickup] (physical pressure sum).
Both rails share the same integer/fractional delay length and loop filter. The propagation mode is set once at construction and never changes.
Definition at line 138 of file WaveguideNetwork.hpp.
