get_metadata()

std::unordered_map< std::string, std::string > MayaFlux::Nodes::Network::WaveguideNetwork::get_metadata ( ) const

overridevirtual

Get network metadata for debugging/visualization.

Returns

Map of property names to string representations

Subclasses can override to expose internal state:

• Particle count, average velocity
• Modal frequencies, decay times
• Waveguide delay lengths etc.

Reimplemented from MayaFlux::Nodes::Network::NodeNetwork.

Definition at line 486 of file WaveguideNetwork.cpp.

{
    auto metadata = NodeNetwork::get_metadata();

    metadata["type"] = std::string(Reflect::enum_to_string(m_type));
    metadata["fundamental"] = std::to_string(m_fundamental) + " Hz";
    metadata["delay_length"] = std::to_string(m_delay_length_integer)
        + " + " + std::to_string(m_delay_length_fraction) + " samples";
    metadata["loss_factor"] = std::to_string(get_loss_factor());
    metadata["pickup_position"] = std::to_string(get_pickup_position());

    metadata["exciter_type"] = std::string(Reflect::enum_to_string(m_exciter_type));

    return metadata;
}

References MayaFlux::Reflect::enum_to_string(), get_loss_factor(), MayaFlux::Nodes::Network::NodeNetwork::get_metadata(), get_pickup_position(), m_delay_length_fraction, m_delay_length_integer, m_exciter_type, m_fundamental, and m_type.

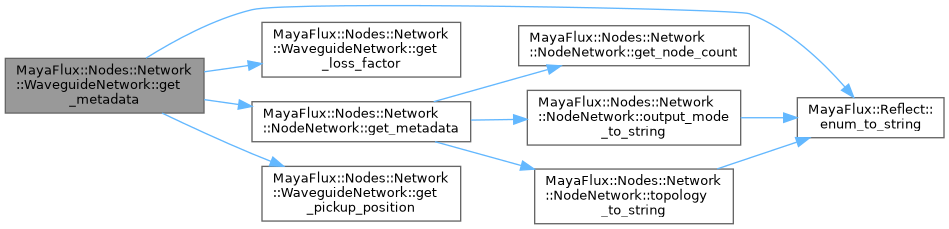

Here is the call graph for this function:
