WaveguideNetwork()

MayaFlux::Nodes::Network::WaveguideNetwork::WaveguideNetwork	(	WaveguideType	type,
		double	fundamental_freq,
		double	sample_rate = 48000.0
	)

Create waveguide network with specified type and frequency.

Parameters

type	Physical structure to model
fundamental_freq	Sounding fundamental in Hz. A TUBE is a closed-open bore, so each rail is a quarter of the period long
sample_rate	Sample rate in Hz

Definition at line 66 of file WaveguideNetwork.cpp.

    : m_type(type)
    , m_fundamental(fundamental_freq)
{
    m_sample_rate = static_cast<uint32_t>(sample_rate);
    set_output_mode(OutputMode::AUDIO_SINK);
    set_topology(Topology::RING);

    compute_delay_length();

    const auto prop_mode = (m_type == WaveguideType::TUBE)
        ? WaveguideSegment::PropagationMode::BIDIRECTIONAL
        : WaveguideSegment::PropagationMode::UNIDIRECTIONAL;

    m_segments.emplace_back(m_delay_length_integer + 2, prop_mode);
    if (m_type == WaveguideType::TUBE) {
        m_segments[0].reflection_open = -1.0;
    }

    create_default_loop_filter();
}

References MayaFlux::Nodes::Network::AUDIO_SINK, MayaFlux::Nodes::Network::WaveguideNetwork::WaveguideSegment::BIDIRECTIONAL, compute_delay_length(), create_default_loop_filter(), m_delay_length_integer, MayaFlux::Nodes::Network::NodeNetwork::m_sample_rate, m_segments, m_type, MayaFlux::Nodes::Network::RING, MayaFlux::Nodes::Network::NodeNetwork::set_output_mode(), MayaFlux::Nodes::Network::NodeNetwork::set_topology(), TUBE, and MayaFlux::Nodes::Network::WaveguideNetwork::WaveguideSegment::UNIDIRECTIONAL.

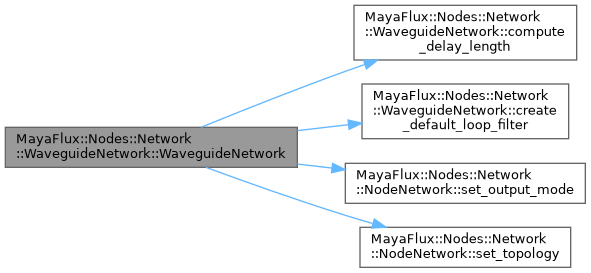

Here is the call graph for this function:
