#include <TopologyOperator.hpp>

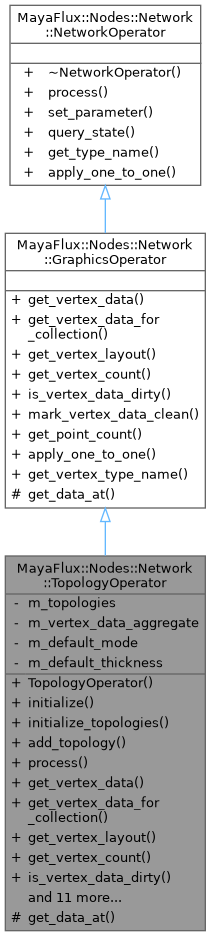

Inheritance diagram for MayaFlux::Nodes::Network::TopologyOperator:

Collaboration diagram for MayaFlux::Nodes::Network::TopologyOperator:

Public Member Functions
void	add_topology (const std::vector< LineVertex > &vertices, Kinesis::ProximityMode mode)
	Add a single topology with full per-vertex control.

std::vector< uint32_t >	build_cluster_ids () const override
	Overrides GraphicsOperator::build_cluster_ids() for real multi-topology scenes.

std::optional< Portal::Graphics::PrimitiveTopology >	declared_topology () const override
	Forwards to the first topology's own get_primitive_topology().

std::vector< DirtyVertexRange >	dirty_vertex_ranges () const override
	One DirtyVertexRange per topology whose TopologyGeneratorNode needs a GPU update, so add_topology() or a point edit on one graph re-uploads only that graph's expanded line vertices.

std::vector< LineVertex >	extract_vertices () const
	Extract current vertex data as LineVertex array.

size_t	get_point_count () const override
	Get source point count (before topology expansion)

std::shared_ptr< GpuSync::TopologyGeneratorNode >	get_topology (size_t i) const
	Access a specific topology node directly.

size_t	get_topology_count () const
	Get number of topologies currently stored.

std::string_view	get_type_name () const override
	Type name for introspection.

size_t	get_vertex_count () const override
	Get number of vertices (may differ from point count for topology/path)

std::span< const uint8_t >	get_vertex_data () const override
	Get vertex data for GPU upload.

std::span< const uint8_t >	get_vertex_data_for_collection (uint32_t idx) const override
	Get vertex data for specific collection (if multiple)

Kakshya::VertexLayout	get_vertex_layout () const override
	Get vertex layout describing vertex structure.

const char *	get_vertex_type_name () const override
	Get human-readable vertex type name (for validation/debugging)

void	initialize (const std::vector< LineVertex > &vertices)
	Initialize a single topology with single set of vertices.

void	initialize_topologies (const std::vector< std::vector< LineVertex > > &topologies, Kinesis::ProximityMode mode)
	Initialize multiple topologies with given positions and properties.

bool	is_vertex_data_dirty () const override
	Check if geometry changed this frame.

void	mark_vertex_data_clean () override
	Clear dirty flag after GPU upload.

void	process (float dt) override
	Process for one batch cycle.

std::optional< double >	query_state (std::string_view query) const override
	Query operator internal state.

void	set_connection_radius (float radius)
	Set the connection radius for topology generation.

void	set_global_line_color (const glm::vec3 &color)
	Set the line color for all topologies.

void	set_global_line_thickness (float thickness)
	Set the number of neighbors (k) for K-Nearest topology mode.

void	set_parameter (std::string_view param, double value) override
	Set operator parameter.

void	set_samples_per_segment (size_t samples)
	Set number of samples per segment for interpolation for all topologies.

void	set_vertices (const std::vector< LineVertex > &vertices)
	Replace every point, in extract_vertices() order, keeping the topologies.

bool	supports_incremental_upload () const override
	True: point edits, add_topology() and every proximity-parameter change route through a TopologyGeneratorNode dirty flag, so per-graph ranges are complete.

std::vector< DrawRun >	topology_runs () const override
	Coalesces adjacent topology graphs sharing a concatenable topology into one run.

	TopologyOperator (Kinesis::ProximityMode mode=Kinesis::ProximityMode::K_NEAREST)

	~TopologyOperator () override

Public Member Functions inherited from MayaFlux::Nodes::Network::GraphicsOperator
void	apply_one_to_one (std::string_view param, const std::shared_ptr< NodeNetwork > &source) override
	Apply ONE_TO_ONE parameter mapping.

bool	consumes_upstream () const
	Whether this operator requests upstream vertex state before process().

virtual std::vector< std::pair< std::string, Kakshya::DataVariant > >	extract_vertex_attributes () const
	Extra named, per-vertex attributes beyond position/color/size, for an external cache/export consumer.

virtual std::vector< glm::vec3 >	extract_vertex_velocities () const
	Per-vertex velocity, for a consumer that wants to write it as a native channel (e.g.

bool	participates_in_rendering () const
	Whether this operator contributes a vertex slice to rendering.

virtual void	seed_from_upstream (const GraphicsOperator *upstream)
	Receive upstream vertex state before process() is called.

void	set_consumes_upstream (bool value)

void	set_force_internal_dt (bool value)
	Override the dt passed by the caller with a fixed internal value.

void	set_participates_in_rendering (bool value)

bool	uses_force_internal_dt () const

Public Member Functions inherited from MayaFlux::Nodes::Network::NetworkOperator
virtual bool	demands_full_vertex_restore () const
	Whether a downstream compute pass writes the network's vertex buffer in place each cycle, so the geometry producer must keep restoring the CPU-authoritative vertex data every frame.

virtual	~NetworkOperator ()=default

Protected Member Functions
void *	get_data_at (size_t global_index) override
	Get mutable access to point at global index.

Private Attributes
std::atomic< uint32_t >	m_access_token { 0 }

Kinesis::ProximityMode	m_default_mode

std::atomic< bool >	m_shutdown { false }

std::vector< std::shared_ptr< GpuSync::TopologyGeneratorNode > >	m_topologies

std::vector< uint8_t >	m_vertex_data_aggregate

Additional Inherited Members
Protected Attributes inherited from MayaFlux::Nodes::Network::GraphicsOperator
bool	m_consumes_upstream {}

bool	m_force_internal_dt {}

bool	m_participates_in_rendering { true }

Detailed Description

Definition at line 7 of file TopologyOperator.hpp.
