Operator that produces GPU-renderable geometry. More...

#include <GraphicsOperator.hpp>

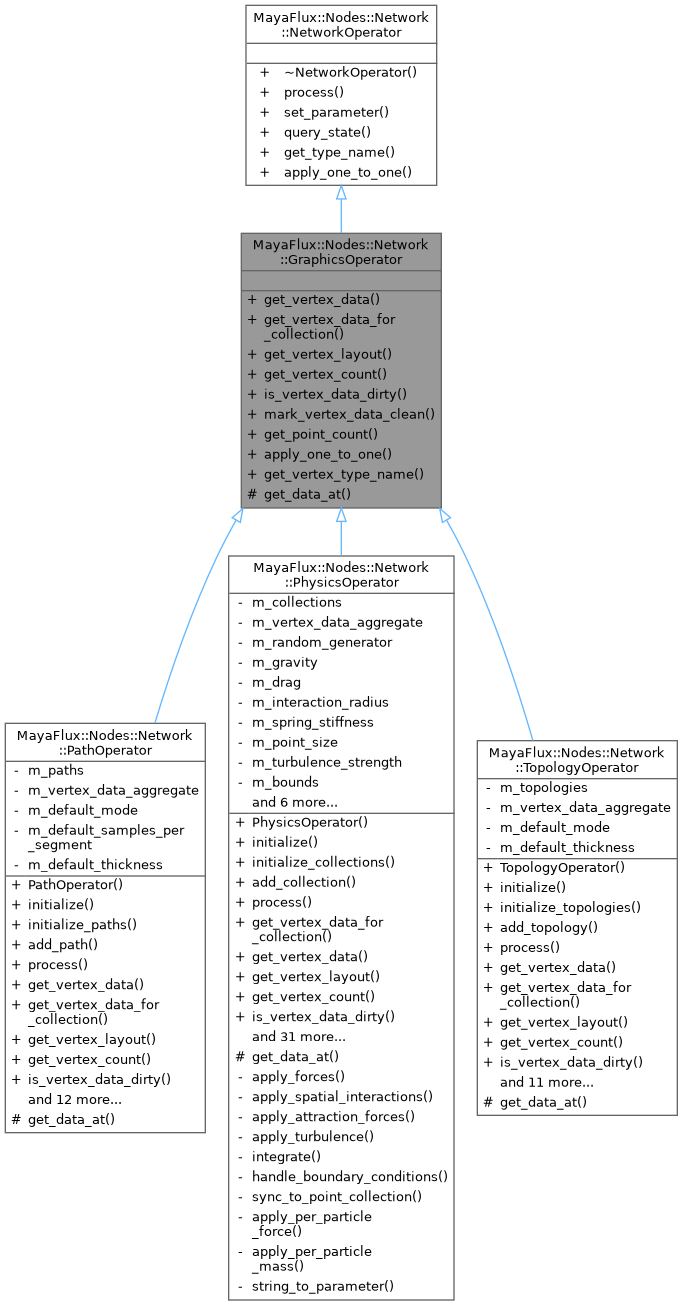

Inheritance diagram for MayaFlux::Nodes::Network::GraphicsOperator:

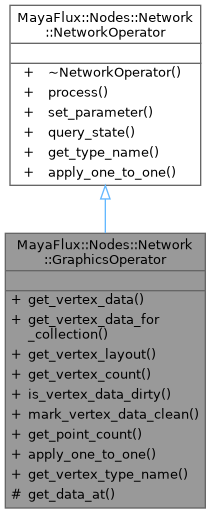

Collaboration diagram for MayaFlux::Nodes::Network::GraphicsOperator:

Public Member Functions
virtual std::span< const uint8_t >	get_vertex_data () const =0
	Get vertex data for GPU upload.

virtual std::span< const uint8_t >	get_vertex_data_for_collection (uint32_t idx=0) const =0
	Get vertex data for specific collection (if multiple)

virtual Kakshya::VertexLayout	get_vertex_layout () const =0
	Get vertex layout describing vertex structure.

virtual size_t	get_vertex_count () const =0
	Get number of vertices (may differ from point count for topology/path)

virtual bool	is_vertex_data_dirty () const =0
	Check if geometry changed this frame.

virtual void	mark_vertex_data_clean ()=0
	Clear dirty flag after GPU upload.

virtual size_t	get_point_count () const =0
	Get source point count (before topology expansion)

void	apply_one_to_one (std::string_view param, const std::shared_ptr< NodeNetwork > &source) override
	Apply ONE_TO_ONE parameter mapping.

virtual const char *	get_vertex_type_name () const =0
	Get human-readable vertex type name (for validation/debugging)

Public Member Functions inherited from MayaFlux::Nodes::Network::NetworkOperator
virtual	~NetworkOperator ()=default

virtual void	process (float dt)=0
	Process for one batch cycle.

virtual void	set_parameter (std::string_view param, double value)=0
	Set operator parameter.

virtual std::optional< double >	query_state (std::string_view query) const =0
	Query operator internal state.

virtual std::string_view	get_type_name () const =0
	Type name for introspection.

Protected Member Functions
virtual void *	get_data_at (size_t global_index)=0
	Get mutable access to point at global index.

Detailed Description

Operator that produces GPU-renderable geometry.

Adds graphics-specific interface (vertex data, position extraction) on top of base NetworkOperator. Uses glm::vec3 for positions since that's the graphics domain standard.

Definition at line 16 of file GraphicsOperator.hpp.

The documentation for this class was generated from the following files:
