apply_one_to_one()

void MayaFlux::Nodes::Network::GraphicsOperator::apply_one_to_one ( std::string_view  param, const std::shared_ptr< NodeNetwork > &  source  )

overridevirtual

Apply ONE_TO_ONE parameter mapping.

Default implementation handles common graphics properties:

• "color": Per-point color
• "size": Per-point size (for point rendering)

Reimplemented from MayaFlux::Nodes::Network::NetworkOperator.

Reimplemented in MayaFlux::Nodes::Network::PhysicsOperator.

Definition at line 8 of file GraphicsOperator.cpp.

{
    size_t point_count = get_point_count();

    if (source->get_node_count() != point_count) {
        return;
    }

    if (param == "color") {
        for (size_t i = 0; i < point_count; ++i) {
            auto val = source->get_node_output(i);
            if (!val)
                continue;

            auto* point = static_cast<PointVertex*>(get_data_at(i));
            if (point) {
                float normalized = glm::clamp(static_cast<float>(*val), 0.0F, 1.0F);
                point->color = glm::vec3(normalized, 0.5F, 1.0F - normalized);
            }
        }
    } else if (param == "size") {
        for (size_t i = 0; i < point_count; ++i) {
            auto val = source->get_node_output(i);
            if (!val)
                continue;

            auto* point = static_cast<PointVertex*>(get_data_at(i));
            if (point) {
                point->size = glm::clamp(static_cast<float>(*val) * 10.0F, 1.0F, 50.0F);
            }
        }
    }
}

References get_data_at(), get_point_count(), MayaFlux::normalized(), and MayaFlux::Nodes::PointVertex::size.

Referenced by MayaFlux::Nodes::Network::PhysicsOperator::apply_one_to_one().

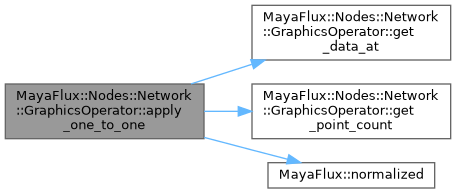

Here is the call graph for this function:

Here is the caller graph for this function:
