MayaFlux::Nodes::Generator::Stochastics::Random Class Reference

Computational stochastic signal generator with multiple probability distributions. More...

#include <Stochastic.hpp>

Inheritance diagram for MayaFlux::Nodes::Generator::Stochastics::Random:

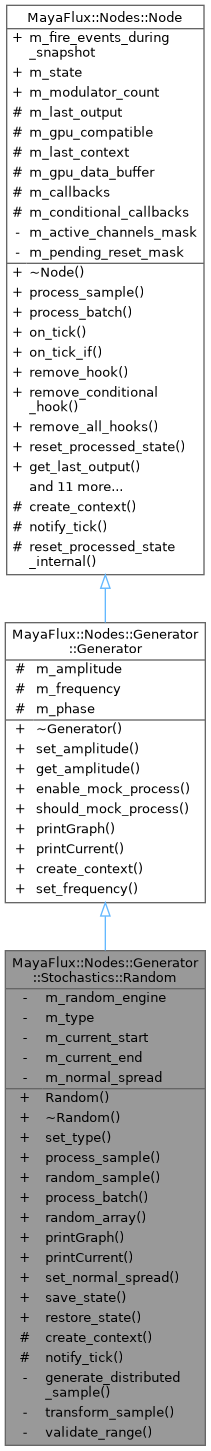

Collaboration diagram for MayaFlux::Nodes::Generator::Stochastics::Random:

Public Member Functions
	Random (Utils::distribution type=Utils::distribution::UNIFORM)
	Constructor for the stochastic generator.
	~Random () override=default
	Virtual destructor.
void	set_type (Utils::distribution type)
	Changes the probability distribution type.
double	process_sample (double input=0.) override
	Generates a single stochastic value.
double	random_sample (double start, double end)
	Generates a stochastic value within a specified range.
std::vector< double >	process_batch (unsigned int num_samples) override
	Generates multiple stochastic values at once.
std::vector< double >	random_array (double start, double end, unsigned int num_samples)
	Generates an array of stochastic values within a specified range.
void	printGraph () override
	Visualizes the distribution characteristics.
void	printCurrent () override
	Outputs the current configuration parameters.
void	set_normal_spread (double spread)
	Sets the variance parameter for normal distribution.
void	save_state () override
	Saves the node's current state for later restoration Recursively cascades through all connected modulator nodes Protected - only NodeSourceProcessor and NodeBuffer can call.
void	restore_state () override
	Restores the node's state from the last save Recursively cascades through all connected modulator nodes Protected - only NodeSourceProcessor and NodeBuffer can call.
Public Member Functions inherited from MayaFlux::Nodes::Generator::Generator
virtual	~Generator ()=default
	Virtual destructor for proper cleanup.
virtual void	set_amplitude (double amplitude)
	Sets the generator's amplitude.
virtual double	get_amplitude () const
	Gets the current base amplitude.
virtual void	enable_mock_process (bool mock_process)
	Allows RootNode to process the Generator without using the processed sample.
virtual bool	should_mock_process () const
	Checks if the generator should mock process.
virtual void	set_frequency (float frequency)
	Sets the generator's frequency.
Public Member Functions inherited from MayaFlux::Nodes::Node
virtual	~Node ()=default
	Virtual destructor for proper cleanup of derived classes.
virtual void	on_tick (const NodeHook &callback)
	Registers a callback to be called on each tick.
virtual void	on_tick_if (const NodeCondition &condition, const NodeHook &callback)
	Registers a conditional callback.
virtual bool	remove_hook (const NodeHook &callback)
	Removes a previously registered callback.
virtual bool	remove_conditional_hook (const NodeCondition &callback)
	Removes a previously registered conditional callback.
virtual void	remove_all_hooks ()
	Removes all registered callbacks.
virtual void	reset_processed_state ()
	Resets the processed state of the node and any attached input nodes.
virtual double	get_last_output ()
	Retrieves the most recent output value produced by the node.
void	register_channel_usage (uint32_t channel_id)
	Mark the specificed channel as a processor/user.
void	unregister_channel_usage (uint32_t channel_id)
	Removes the specified channel from the usage tracking.
bool	is_used_by_channel (uint32_t channel_id) const
	Checks if the node is currently used by a specific channel.
void	request_reset_from_channel (uint32_t channel_id)
	Requests a reset of the processed state from a specific channel.
const std::atomic< uint32_t > &	get_channel_mask () const
	Retrieves the current bitmask of active channels using this node.
void	set_gpu_compatible (bool compatible)
	Sets whether the node is compatible with GPU processing.
bool	is_gpu_compatible () const
	Checks if the node supports GPU processing.
std::span< const float >	get_gpu_data_buffer () const
	Provides access to the GPU data buffer.
bool	try_claim_snapshot_context (uint64_t context_id)
	Attempt to claim snapshot context for this processing cycle.
bool	is_in_snapshot_context (uint64_t context_id) const
	Check if currently in a snapshot context.
void	release_snapshot_context (uint64_t context_id)
	Release snapshot context.
bool	has_active_snapshot () const
	Check if node is currently being snapshotted by any context.
uint64_t	get_active_snapshot_context () const
	Get the active snapshot context ID.
void	add_buffer_reference ()
	Increments the buffer reference count This method is called when a new buffer starts using this node to ensure proper lifecycle management.
void	remove_buffer_reference ()
	Decrements the buffer reference count This method is called when a buffer stops using this node to ensure proper lifecycle management.
bool	mark_buffer_processed ()
	Marks the node as having been processed by a buffer.
void	request_buffer_reset ()
	Requests a reset of the buffer state.
bool	is_buffer_processed () const
	Checks if the buffer has been processed.
bool	is_in_network () const
	Sets whether the node is part of a NodeNetwork.
void	set_in_network (bool networked)
	Marks the node as being part of a NodeNetwork.

Protected Member Functions
void	update_context (double value) override
	Updates the context object with the current node state.
void	notify_tick (double value) override
	Notifies all registered callbacks about a new value.
NodeContext &	get_last_context () override
	Gets the last created context object.
Protected Member Functions inherited from MayaFlux::Nodes::Node
virtual void	reset_processed_state_internal ()
	Resets the processed state of the node directly.

Private Member Functions
double	generate_distributed_sample ()
	Generates a raw value according to the current distribution.
double	transform_sample (double sample, double start, double end) const
	Transforms a raw value to fit within the specified range.
void	validate_range (double start, double end) const
	Validates that the specified range is mathematically valid.
double	fast_uniform () noexcept
	Fast uniform random number generator using xorshift algorithm.
void	rebuild_distributions_if_needed () noexcept
	Rebuilds distribution objects if parameters have changed.

Private Attributes
std::mt19937	m_random_engine
	Mersenne Twister entropy generator.
Utils::distribution	m_type
	Current probability distribution algorithm.
double	m_current_start
	Lower bound of the current output range.
double	m_current_end
	Upper bound of the current output range.
double	m_normal_spread
	Variance parameter for normal distribution.
std::normal_distribution< double >	m_normal_dist { 0.0, 1.0 }
	Normal distribution with mean 0 and standard deviation 1.
std::exponential_distribution< double >	m_exponential_dist { 1.0 }
	Exponential distribution with lambda = 1.
uint64_t	m_xorshift_state
	Internal state for xorshift random number generation.
StochasticContext	m_context
StochasticContextGpu	m_context_gpu
double	m_cached_start = -1.0
double	m_cached_end = 1.0
double	m_cached_spread = 4.0
bool	m_dist_dirty = true

Additional Inherited Members
Public Attributes inherited from MayaFlux::Nodes::Node
bool	m_fire_events_during_snapshot = false
	Internal flag controlling whether notify_tick fires during state snapshots Default: false (events don't fire during isolated buffer processing) Can be exposed in future if needed via concrete implementation in parent.
std::atomic< Utils::NodeState >	m_state { Utils::NodeState::INACTIVE }
	Atomic state flag tracking the node's processing status.
std::atomic< uint32_t >	m_modulator_count { 0 }
	Counter tracking how many other nodes are using this node as a modulator.
Protected Attributes inherited from MayaFlux::Nodes::Generator::Generator
double	m_amplitude { 1.0 }
	Base amplitude of the generator.
float	m_frequency { 440.0F }
	Base frequency of the generator.
double	m_phase {}
	Current phase of the generator.
GeneratorContext	m_context { 0., m_frequency, m_amplitude, m_phase }
GeneratorContextGpu	m_context_gpu { 0., m_frequency, m_amplitude, m_phase, get_gpu_data_buffer() }
Protected Attributes inherited from MayaFlux::Nodes::Node
double	m_last_output { 0 }
	The most recent sample value generated by this oscillator.
bool	m_gpu_compatible {}
	Flag indicating if the node supports GPU processing This flag is set by derived classes to indicate whether the node can be processed on the GPU.
std::vector< float >	m_gpu_data_buffer
	GPU data buffer for context objects.
std::vector< NodeHook >	m_callbacks
	Collection of standard callback functions.
std::vector< std::pair< NodeHook, NodeCondition > >	m_conditional_callbacks
	Collection of conditional callback functions with their predicates.
bool	m_networked_node {}
	Flag indicating if the node is part of a NodeNetwork This flag is used to disable event firing when the node is managed within a NodeNetwork, preventing redundant or conflicting event notifications.
bool	m_state_saved {}
	tracks if the node's state has been saved by a snapshot operation

Detailed Description

Computational stochastic signal generator with multiple probability distributions.

The Random generates algorithmic signals based on mathematical probability distributions, serving as a foundational component for generative composition, procedural sound design, and data-driven audio transformation. Unlike deterministic processes, stochastic generators introduce controlled mathematical randomness into computational signal paths.

Stochastic processes are fundamental in computational audio for:

• Procedural generation of complex timbral structures
• Algorithmic composition and generative music systems
• Data-driven environmental simulations
• Creating emergent sonic behaviors through probability fields
• Cross-domain control signal generation (audio influencing visual, haptic, etc.)

This implementation supports multiple probability distributions:

• Uniform: Equal probability across the entire range
• Normal (Gaussian): Bell-shaped distribution centered around the midpoint
• Exponential: Higher probability near the start, decreasing exponentially

The Random can function at any rate - from audio-rate signal generation to control-rate parameter modulation, to event-level algorithmic decision making. It can be integrated with other computational domains (graphics, physics, data) to create cross-domain generative systems.

Definition at line 128 of file Stochastic.hpp.

---

The documentation for this class was generated from the following files:

• Stochastic.hpp
• Stochastic.cpp
