MayaFlux::Nodes::Generator::GeneratorContext Class Reference

Specialized context for generator node callbacks. More...

#include <Generator.hpp>

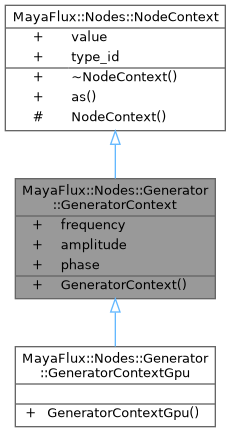

Inheritance diagram for MayaFlux::Nodes::Generator::GeneratorContext:

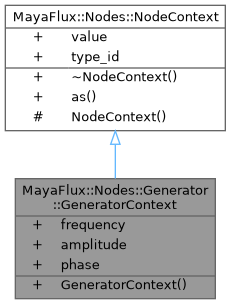

Collaboration diagram for MayaFlux::Nodes::Generator::GeneratorContext:

Public Member Functions
	GeneratorContext (double value, double frequency, float amplitude, double phase)
	Constructs a GeneratorContext with the current generator state.
Public Member Functions inherited from MayaFlux::Nodes::NodeContext
virtual	~NodeContext ()=default
template<typename T >
T *	as ()
	Safely cast to a derived context type.

Public Attributes
double	frequency
	Current frequency of the generator.
float	amplitude
	Current amplitude of the generator.
double	phase
	Current phase of the generator.
Public Attributes inherited from MayaFlux::Nodes::NodeContext
double	value
	Current sample value.
std::string	type_id
	Type identifier for runtime type checking.

Additional Inherited Members
Protected Member Functions inherited from MayaFlux::Nodes::NodeContext
	NodeContext (double value, const std::string &type)
	Protected constructor for NodeContext.

Detailed Description

Specialized context for generator node callbacks.

GeneratorContext extends the base NodeContext to provide detailed information about a generator's current state to callbacks. It includes fundamental oscillator parameters such as frequency, amplitude, and phase that define the generator's behavior at the moment a sample is produced.

This rich context enables callbacks to perform sophisticated analysis and monitoring of generator behavior, such as:

• Tracking parameter changes over time
• Implementing frequency-dependent processing
• Creating visualizations of generator state
• Synchronizing multiple generators based on phase relationships
• Implementing adaptive processing based on generator characteristics

Definition at line 24 of file Generator.hpp.

---

The documentation for this class was generated from the following file:

• Generator.hpp
