MayaFlux::Nodes::Generator::Generator Class Reference

Base class for all signal and pattern generators in Maya Flux. More...

#include <Generator.hpp>

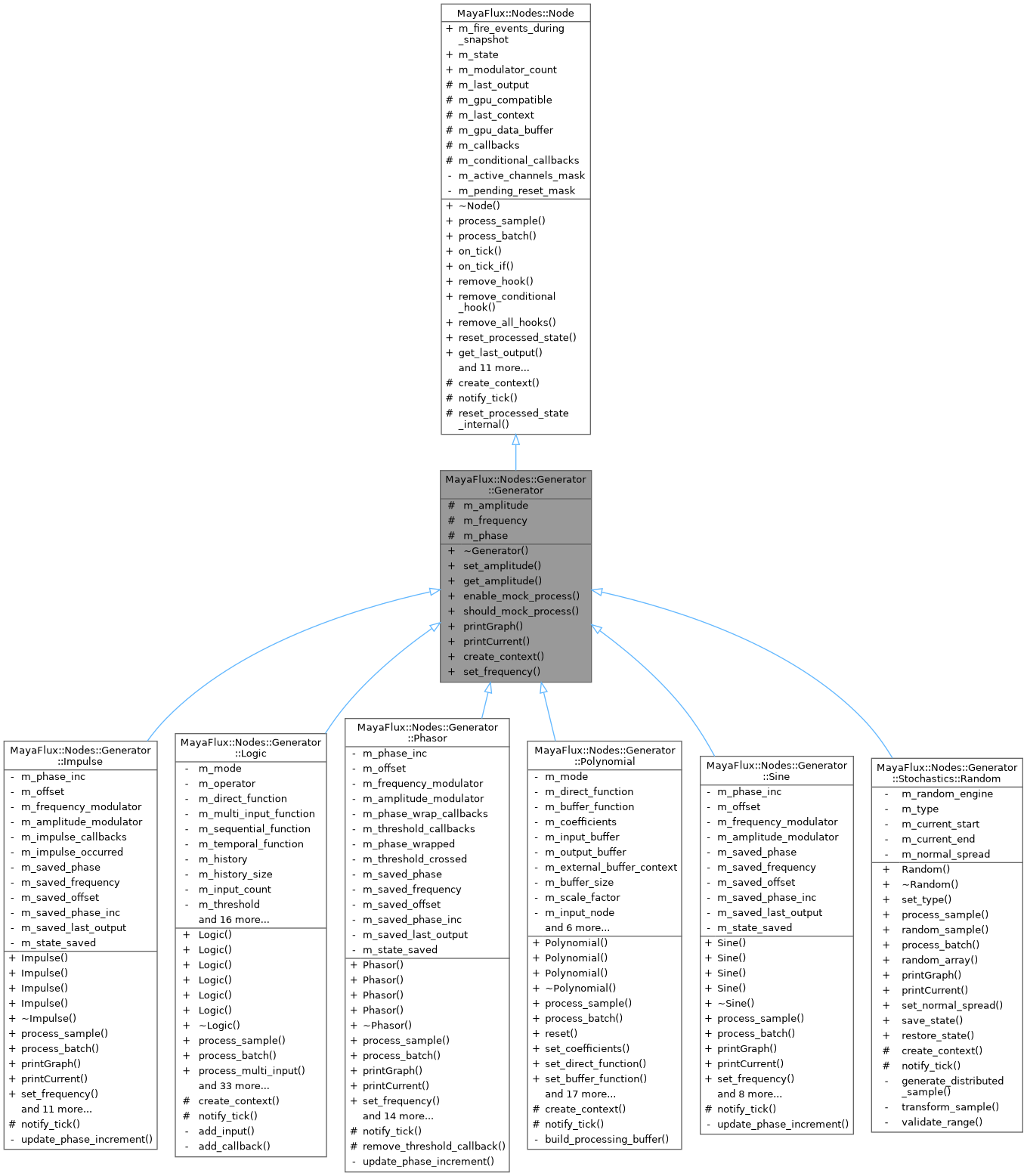

Inheritance diagram for MayaFlux::Nodes::Generator::Generator:

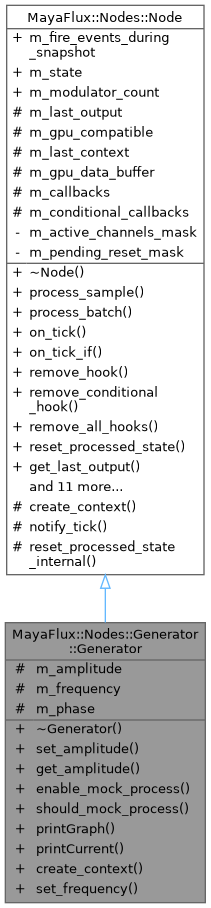

Collaboration diagram for MayaFlux::Nodes::Generator::Generator:

Public Member Functions
virtual void	enable_mock_process (bool mock_process)
	Allows RootNode to process the Generator without using the processed sample.
virtual double	get_amplitude () const
	Gets the current base amplitude.
NodeContext &	get_last_context () override
	Gets the last created context object.
virtual void	printCurrent ()=0
	Prints the current state and parameters of the generator.
virtual void	printGraph ()=0
	Prints a visual representation of the generated pattern.
virtual void	set_amplitude (double amplitude)
	Sets the generator's amplitude.
virtual void	set_frequency (float frequency)
	Sets the generator's frequency.
virtual bool	should_mock_process () const
	Checks if the generator should mock process.
virtual void	update_context (double value) override
	Updates the context object for callbacks.
virtual	~Generator ()=default
	Virtual destructor for proper cleanup.
Public Member Functions inherited from MayaFlux::Nodes::Node
void	add_buffer_reference ()
	Increments the buffer reference count This method is called when a new buffer starts using this node to ensure proper lifecycle management.
uint64_t	get_active_snapshot_context () const
	Get the active snapshot context ID.
const std::atomic< uint32_t > &	get_channel_mask () const
	Retrieves the current bitmask of active channels using this node.
uint32_t	get_frame_rate () const
std::span< const float >	get_gpu_data_buffer () const
	Provides access to the GPU data buffer.
virtual double	get_last_output ()
	Retrieves the most recent output value produced by the node.
RoutingState &	get_routing_state ()
	Retrieves the current routing state of the network (non-const)
const RoutingState &	get_routing_state () const
	Retrieves the current routing state of the network.
uint32_t	get_sample_rate () const
bool	has_active_snapshot () const
	Check if node is currently being snapshotted by any context.
bool	has_capability (NodeCapability cap) const
	Query a single capability.
bool	is_buffer_processed () const
	Checks if the buffer has been processed.
bool	is_gpu_compatible () const
	Checks if the node supports GPU processing.
bool	is_in_network () const
	Sets whether the node is part of a NodeNetwork.
bool	is_in_snapshot_context (uint64_t context_id) const
	Check if currently in a snapshot context.
bool	is_used_by_channel (uint32_t channel_id) const
	Checks if the node is currently used by a specific channel.
bool	mark_buffer_processed ()
	Marks the node as having been processed by a buffer.
bool	needs_channel_routing () const
	Checks if the network is currently in a routing transition phase.
virtual uint8_t	node_capabilities () const
	Declare which data shapes this node's context can produce.
virtual void	on_tick (const NodeHook &callback)
	Registers a callback to be called on each tick.
virtual void	on_tick_if (const NodeCondition &condition, const NodeHook &callback)
	Registers a conditional callback.
virtual std::vector< double >	process_batch (unsigned int num_samples)=0
	Processes multiple samples at once.
virtual double	process_sample (double input=0.)=0
	Processes a single data sample.
void	register_channel_usage (uint32_t channel_id)
	Mark the specificed channel as a processor/user.
void	release_snapshot_context (uint64_t context_id)
	Release snapshot context.
virtual void	remove_all_hooks ()
	Removes all registered callbacks.
void	remove_buffer_reference ()
	Decrements the buffer reference count This method is called when a buffer stops using this node to ensure proper lifecycle management.
virtual bool	remove_conditional_hook (const NodeCondition &callback)
	Removes a previously registered conditional callback.
virtual bool	remove_hook (const NodeHook &callback)
	Removes a previously registered callback.
void	request_buffer_reset ()
	Requests a reset of the buffer state.
void	request_reset_from_channel (uint32_t channel_id)
	Requests a reset of the processed state from a specific channel.
virtual void	reset_processed_state ()
	Resets the processed state of the node and any attached input nodes.
virtual void	restore_state ()=0
	Restores the node's state from the last save Recursively cascades through all connected modulator nodes Protected - only NodeSourceProcessor and NodeBuffer can call.
virtual void	save_state ()=0
	Saves the node's current state for later restoration Recursively cascades through all connected modulator nodes Protected - only NodeSourceProcessor and NodeBuffer can call.
void	set_frame_rate (uint32_t frame_rate)
virtual void	set_gpu_compatible (bool compatible)
	Sets whether the node is compatible with GPU processing.
void	set_in_network (bool networked)
	Marks the node as being part of a NodeNetwork.
void	set_sample_rate (uint32_t sample_rate)
bool	try_claim_snapshot_context (uint64_t context_id)
	Attempt to claim snapshot context for this processing cycle.
void	unregister_channel_usage (uint32_t channel_id)
	Removes the specified channel from the usage tracking.
virtual	~Node ()=default
	Virtual destructor for proper cleanup of derived classes.

Protected Attributes
double	m_amplitude { 1.0 }
	Base amplitude of the generator.
GeneratorContext	m_context { 0., m_frequency, m_amplitude, m_phase }
GeneratorContextGpu	m_context_gpu { 0., m_frequency, m_amplitude, m_phase, get_gpu_data_buffer() }
float	m_frequency { 440.0F }
	Base frequency of the generator.
double	m_phase {}
	Current phase of the generator.
Protected Attributes inherited from MayaFlux::Nodes::Node
std::vector< NodeHook >	m_callbacks
	Collection of standard callback functions.
std::vector< std::pair< NodeHook, NodeCondition > >	m_conditional_callbacks
	Collection of conditional callback functions with their predicates.
uint32_t	m_frame_rate { 60 }
	Frame rate for time-based processing, used for normalization.
bool	m_gpu_compatible {}
	Flag indicating if the node supports GPU processing This flag is set by derived classes to indicate whether the node can be processed on the GPU.
std::vector< float >	m_gpu_data_buffer
	GPU data buffer for context objects.
double	m_last_output { 0 }
	The most recent sample value generated by this oscillator.
bool	m_networked_node {}
	Flag indicating if the node is part of a NodeNetwork This flag is used to disable event firing when the node is managed within a NodeNetwork, preventing redundant or conflicting event notifications.
uint8_t	m_node_capability { NodeCapability::SCALAR }
	Bitmask of capabilities declared by this node.
uint32_t	m_sample_rate { 48000 }
	Sample rate for audio processing, used for normalization.
bool	m_state_saved {}
	tracks if the node's state has been saved by a snapshot operation
uint32_t	m_timing_rate { m_sample_rate }
	Current timing rate for the node, used for timing calculations (can be sample rate or frame rate)

Additional Inherited Members
Public Attributes inherited from MayaFlux::Nodes::Node
bool	m_fire_events_during_snapshot = false
	Internal flag controlling whether notify_tick fires during state snapshots Default: false (events don't fire during isolated buffer processing) Can be exposed in future if needed via concrete implementation in parent.
std::atomic< uint32_t >	m_modulator_count { 0 }
	Counter tracking how many other nodes are using this node as a modulator.
std::atomic< NodeState >	m_state { NodeState::INACTIVE }
	Atomic state flag tracking the node's processing status.
Protected Member Functions inherited from MayaFlux::Nodes::Node
virtual void	notify_tick (double value)=0
	Notifies all registered callbacks with the current context.
virtual void	reset_processed_state_internal ()
	Resets the processed state of the node directly.

Detailed Description

Base class for all signal and pattern generators in Maya Flux.

Generators are specialized nodes that create numerical sequences from mathematical principles, rather than processing existing signals. They form the foundation of the computational graph by providing the initial patterns that other nodes can then transform, filter, or combine.

Unlike transformation nodes that modify input signals, generators typically:

• Create sequences based on mathematical formulas or algorithms
• Maintain internal state to track progression, phase, or other parameters
• Can operate autonomously without any input (though they may accept modulation inputs)
• Serve as the origin points in computational processing networks

Common types of generators include:

• Oscillators (sine, square, sawtooth, triangle waves)
• Stochastic generators (various probability distributions)
• Sample-based generators (playing back recorded sequences)
• Envelope generators (creating amplitude contours)

Generators integrate with the node graph system, allowing them to be:

• Connected to other nodes using operators like '>>' (chain)
• Combined with other nodes using operators like '+' (mix)
• Registered with a RootNode for processing
• Used as modulation sources for other generators or transformations

The Generator class extends the base Node interface with additional methods for visualization and analysis of the generated patterns.

Definition at line 110 of file Generator.hpp.

---

The documentation for this class was generated from the following files:

• Generator.hpp
• Generator.cpp
