MayaFlux::Nodes::Generator::Sine Class Reference
Sinusoidal oscillator generator node. More...
#include <Sine.hpp>
Inheritance diagram for MayaFlux::Nodes::Generator::Sine:

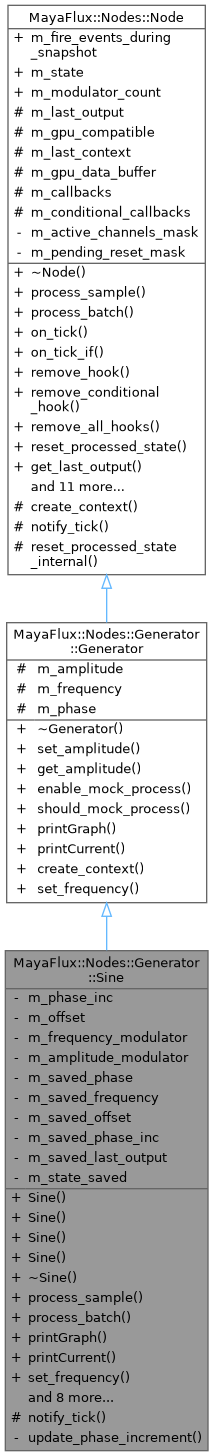

Collaboration diagram for MayaFlux::Nodes::Generator::Sine:
Public Member Functions | |
| Sine (float frequency=440, double amplitude=1, float offset=0) | |
| Basic constructor with fixed parameters. | |
| Sine (const std::shared_ptr< Node > &frequency_modulator, float frequency=440, double amplitude=1, float offset=0) | |
| Constructor with frequency modulation. | |
| Sine (float frequency, const std::shared_ptr< Node > &litude_modulator, double amplitude=1, float offset=0) | |
| Constructor with amplitude modulation. | |
| Sine (const std::shared_ptr< Node > &frequency_modulator, const std::shared_ptr< Node > &litude_modulator, float frequency=440, double amplitude=1, float offset=0) | |
| Constructor with both frequency and amplitude modulation. | |
| ~Sine () override=default | |
| Virtual destructor. | |
| double | process_sample (double input=0.) override |
| Processes a single input sample and generates a sine wave sample. | |
| std::vector< double > | process_batch (unsigned int num_samples) override |
| Processes multiple samples at once. | |
| void | printGraph () override |
| Prints a visual representation of the sine wave. | |
| void | printCurrent () override |
| Prints the current parameters of the sine oscillator. | |
| void | set_frequency (float frequency) override |
| Sets the oscillator's frequency. | |
| float | get_frequency () const |
| Gets the current base frequency. | |
| void | set_params (float frequency, double amplitude, float offset) |
| Sets all basic parameters at once. | |
| void | set_frequency_modulator (const std::shared_ptr< Node > &modulator) |
| Sets a node to modulate the oscillator's frequency. | |
| void | set_amplitude_modulator (const std::shared_ptr< Node > &modulator) |
| Sets a node to modulate the oscillator's amplitude. | |
| void | clear_modulators () |
| Removes all modulation connections. | |
| void | reset (float frequency=440, double amplitude=0.5, float offset=0) |
| Resets the oscillator's phase and parameters. | |
| void | save_state () override |
| Saves the node's current state for later restoration Recursively cascades through all connected modulator nodes Protected - only NodeSourceProcessor and NodeBuffer can call. | |
| void | restore_state () override |
| Restores the node's state from the last save Recursively cascades through all connected modulator nodes Protected - only NodeSourceProcessor and NodeBuffer can call. | |
| Public Member Functions inherited from MayaFlux::Nodes::Generator::Generator | |
| virtual | ~Generator ()=default |
| Virtual destructor for proper cleanup. | |
| virtual void | set_amplitude (double amplitude) |
| Sets the generator's amplitude. | |
| virtual double | get_amplitude () const |
| Gets the current base amplitude. | |
| virtual void | enable_mock_process (bool mock_process) |
| Allows RootNode to process the Generator without using the processed sample. | |
| virtual bool | should_mock_process () const |
| Checks if the generator should mock process. | |
| virtual std::unique_ptr< NodeContext > | create_context (double value) override |
| Creates a context object for callbacks. | |
| Public Member Functions inherited from MayaFlux::Nodes::Node | |
| virtual | ~Node ()=default |
| Virtual destructor for proper cleanup of derived classes. | |
| virtual void | on_tick (const NodeHook &callback) |
| Registers a callback to be called on each tick. | |
| virtual void | on_tick_if (const NodeHook &callback, const NodeCondition &condition) |
| Registers a conditional callback. | |
| virtual bool | remove_hook (const NodeHook &callback) |
| Removes a previously registered callback. | |
| virtual bool | remove_conditional_hook (const NodeCondition &callback) |
| Removes a previously registered conditional callback. | |
| virtual void | remove_all_hooks () |
| Removes all registered callbacks. | |
| virtual void | reset_processed_state () |
| Resets the processed state of the node and any attached input nodes. | |
| virtual double | get_last_output () |
| Retrieves the most recent output value produced by the node. | |
| void | register_channel_usage (uint32_t channel_id) |
| Mark the specificed channel as a processor/user. | |
| void | unregister_channel_usage (uint32_t channel_id) |
| Removes the specified channel from the usage tracking. | |
| bool | is_used_by_channel (uint32_t channel_id) const |
| Checks if the node is currently used by a specific channel. | |
| void | request_reset_from_channel (uint32_t channel_id) |
| Requests a reset of the processed state from a specific channel. | |
| const std::atomic< uint32_t > & | get_channel_mask () const |
| Retrieves the current bitmask of active channels using this node. | |
| NodeContext & | get_last_context () |
| Retrieves the last created context object. | |
| void | set_gpu_compatible (bool compatible) |
| Sets whether the node is compatible with GPU processing. | |
| bool | is_gpu_compatible () const |
| Checks if the node supports GPU processing. | |
| std::span< const float > | get_gpu_data_buffer () const |
| Provides access to the GPU data buffer. | |
Protected Member Functions | |
| void | notify_tick (double value) override |
| Notifies all registered callbacks about a new sample. | |
| Protected Member Functions inherited from MayaFlux::Nodes::Node | |
| virtual void | reset_processed_state_internal () |
| Resets the processed state of the node directly. | |
Private Member Functions | |
| void | update_phase_increment (double frequency) |
| Updates the phase increment based on a new frequency. | |
Private Attributes | |
| double | m_phase_inc {} |
| Phase increment per sample. | |
| float | m_offset {} |
| DC offset added to the output. | |
| std::shared_ptr< Node > | m_frequency_modulator |
| Node that modulates the frequency. | |
| std::shared_ptr< Node > | m_amplitude_modulator |
| Node that modulates the amplitude. | |
| double | m_saved_phase {} |
| float | m_saved_frequency {} |
| float | m_saved_offset {} |
| double | m_saved_phase_inc {} |
| double | m_saved_last_output {} |
| bool | m_state_saved {} |
Additional Inherited Members | |
| Public Attributes inherited from MayaFlux::Nodes::Node | |
| bool | m_fire_events_during_snapshot = false |
| Internal flag controlling whether notify_tick fires during state snapshots Default: false (events don't fire during isolated buffer processing) Can be exposed in future if needed via concrete implementation in parent. | |
| std::atomic< Utils::NodeState > | m_state { Utils::NodeState::INACTIVE } |
| Atomic state flag tracking the node's processing status. | |
| std::atomic< uint32_t > | m_modulator_count { 0 } |
| Counter tracking how many other nodes are using this node as a modulator. | |
| Protected Attributes inherited from MayaFlux::Nodes::Generator::Generator | |
| double | m_amplitude { 1.0 } |
| Base amplitude of the generator. | |
| float | m_frequency { 440.0F } |
| Base frequency of the generator. | |
| double | m_phase {} |
| Current phase of the generator. | |
| Protected Attributes inherited from MayaFlux::Nodes::Node | |
| double | m_last_output { 0 } |
| The most recent sample value generated by this oscillator. | |
| bool | m_gpu_compatible {} |
| Flag indicating if the node supports GPU processing This flag is set by derived classes to indicate whether the node can be processed on the GPU. | |
| std::unique_ptr< NodeContext > | m_last_context |
| The last context object created for callbacks. | |
| std::vector< float > | m_gpu_data_buffer |
| GPU data buffer for context objects. | |
| std::vector< NodeHook > | m_callbacks |
| Collection of standard callback functions. | |
| std::vector< std::pair< NodeHook, NodeCondition > > | m_conditional_callbacks |
| Collection of conditional callback functions with their predicates. | |
Detailed Description
Sinusoidal oscillator generator node.
The Sine class generates a sinusoidal waveform, which is the fundamental building block of audio synthesis. Despite its name, this class implements a general sinusoidal oscillator that can be extended to produce various waveforms beyond just the mathematical sine function.
Key features:
- Configurable frequency, amplitude, and DC offset
- Support for frequency modulation (FM synthesis)
- Support for amplitude modulation (AM synthesis)
- Phase continuity to prevent clicks when changing parameters
Sinusoidal oscillators are used extensively in audio synthesis for:
- Creating pure tones
- Serving as carriers or modulators in FM/AM synthesis
- Building more complex waveforms through additive synthesis
- LFOs (Low Frequency Oscillators) for parameter modulation
The implementation uses a phase accumulation approach for sample-accurate frequency control and efficient computation, avoiding repeated calls to the computationally expensive sin() function.
