Sine() [4/4]

MayaFlux::Nodes::Generator::Sine::Sine	(	const std::shared_ptr< Node > &	frequency_modulator,
		const std::shared_ptr< Node > &	amplitude_modulator,
		float	frequency = 440,
		double	amplitude = 1,
		float	offset = 0
	)

Constructor with both frequency and amplitude modulation.

Parameters

frequency_modulator	Node that modulates the frequency
amplitude_modulator	Node that modulates the amplitude
frequency	Base frequency in Hz (default: 440Hz)
amplitude	Base amplitude (default: 1.0)
offset	DC offset added to the output (default: 0.0)

Creates a sine oscillator with both frequency and amplitude modulation, enabling complex synthesis techniques like FM and AM simultaneously.

Definition at line 38 of file Sine.cpp.

    : m_offset(offset)
    , m_frequency_modulator(frequency_modulator)
    , m_amplitude_modulator(amplitude_modulator)
{
    m_amplitude = amplitude;
    m_frequency = frequency;
    update_phase_increment(frequency);
}

References MayaFlux::Nodes::Generator::Generator::m_amplitude, MayaFlux::Nodes::Generator::Generator::m_frequency, and update_phase_increment().

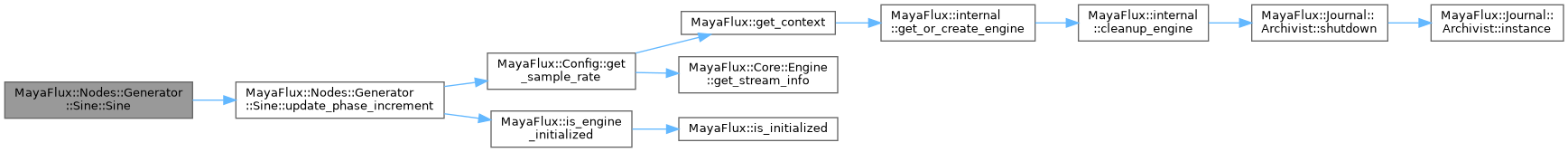

Here is the call graph for this function:
