Sine() [3/4]

MayaFlux::Nodes::Generator::Sine::Sine	(	float	frequency,
		const std::shared_ptr< Node > &	amplitude_modulator,
		double	amplitude = 1,
		float	offset = 0
	)

Constructor with amplitude modulation.

Parameters

frequency	Oscillation frequency in Hz
amplitude_modulator	Node that modulates the amplitude
amplitude	Base amplitude (default: 1.0)
offset	DC offset added to the output (default: 0.0)

Creates a sine oscillator with amplitude modulation, where the actual amplitude is the base amplitude multiplied by the output of the modulator node.

Definition at line 25 of file Sine.cpp.

    : m_offset(offset)
    , m_frequency_modulator(nullptr)
    , m_amplitude_modulator(amplitude_modulator)
{
    m_amplitude = amplitude;
    m_frequency = frequency;
    update_phase_increment(frequency);
}

References frequency, MayaFlux::Nodes::Generator::Generator::m_amplitude, MayaFlux::Nodes::Generator::Generator::m_frequency, and update_phase_increment().

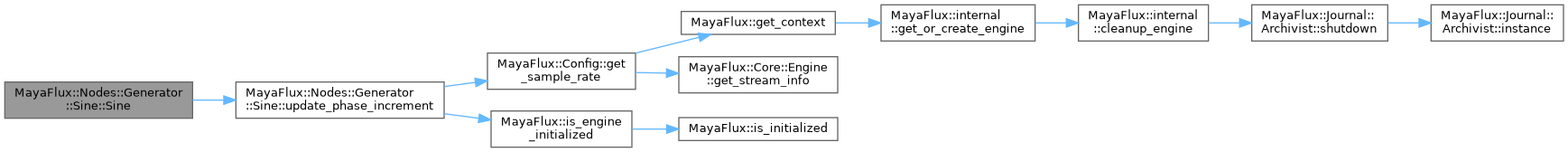

Here is the call graph for this function:
