Manages Vulkan pipelines (compute, graphics) and related resources. More...

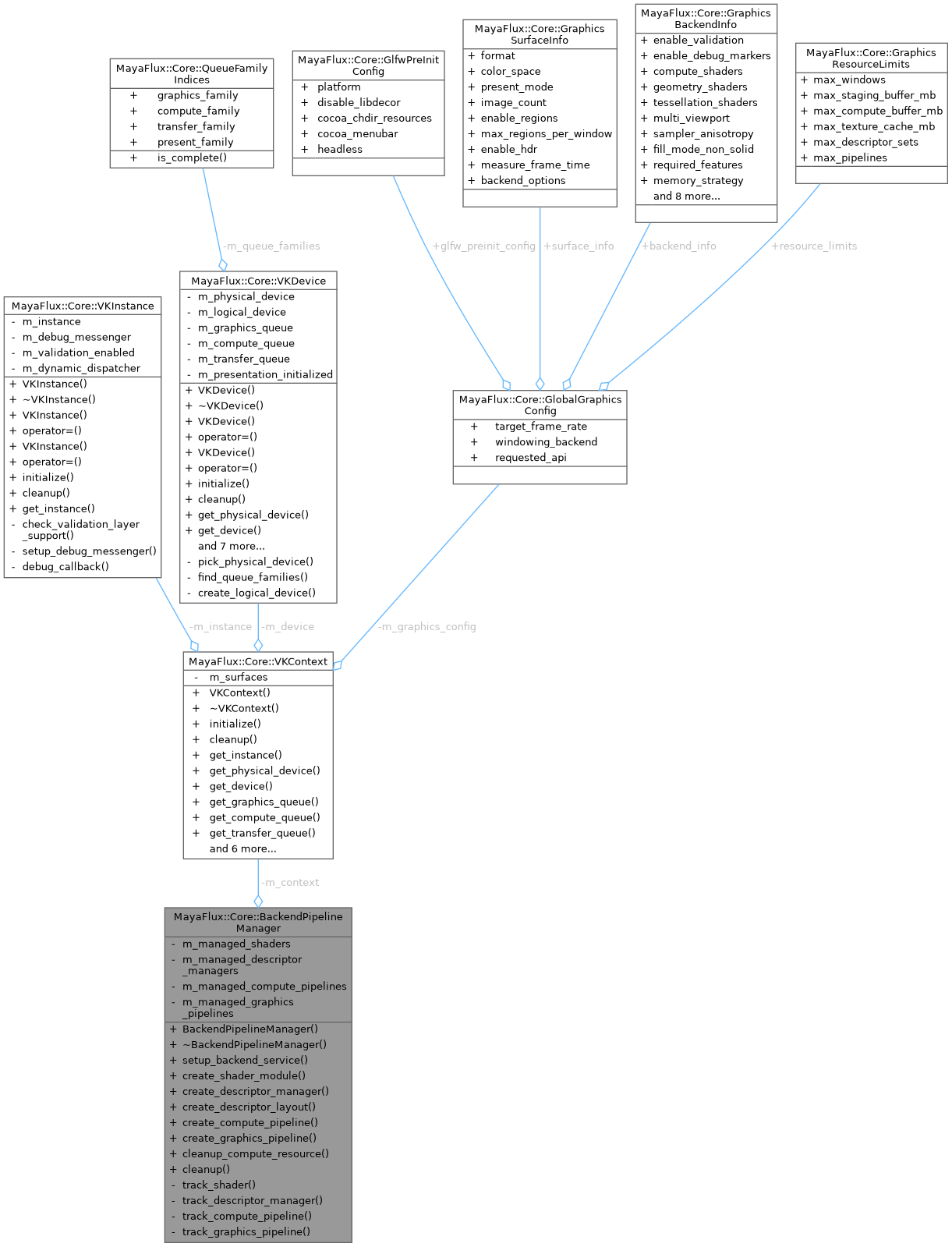

Collaboration diagram for MayaFlux::Core::BackendPipelineManager:

Public Member Functions
	BackendPipelineManager (VKContext &context)

	~BackendPipelineManager ()=default

void	setup_backend_service (const std::shared_ptr< Registry::Service::ComputeService > &compute_service)

std::shared_ptr< VKShaderModule >	create_shader_module (const std::string &spirv_path, uint32_t stage)
	Create a shader module from SPIR-V binary.

std::shared_ptr< VKDescriptorManager >	create_descriptor_manager (uint32_t pool_size)
	Create a descriptor manager for managing descriptor sets.

vk::DescriptorSetLayout	create_descriptor_layout (const std::shared_ptr< VKDescriptorManager > &manager, const std::vector< std::pair< uint32_t, uint32_t > > &bindings)
	Create a descriptor set layout.

std::shared_ptr< VKComputePipeline >	create_compute_pipeline (const std::shared_ptr< VKShaderModule > &shader, const std::vector< vk::DescriptorSetLayout > &layouts, uint32_t push_constant_size)
	Create a compute pipeline.

std::shared_ptr< VKGraphicsPipeline >	create_graphics_pipeline (const GraphicsPipelineConfig &config)
	Create graphics pipeline.

void	cleanup_compute_resource (void *resource)
	Cleanup a compute resource allocated by the backend.

void	cleanup ()

Private Member Functions
void	track_shader (const std::shared_ptr< VKShaderModule > &shader)

void	track_descriptor_manager (const std::shared_ptr< VKDescriptorManager > &manager)

void	track_compute_pipeline (const std::shared_ptr< VKComputePipeline > &pipeline)

void	track_graphics_pipeline (const std::shared_ptr< VKGraphicsPipeline > &pipeline)

Private Attributes
VKContext &	m_context

std::vector< std::shared_ptr< VKShaderModule > >	m_managed_shaders

std::vector< std::shared_ptr< VKDescriptorManager > >	m_managed_descriptor_managers

std::vector< std::shared_ptr< VKComputePipeline > >	m_managed_compute_pipelines

std::vector< std::shared_ptr< VKGraphicsPipeline > >	m_managed_graphics_pipelines

Detailed Description

Manages Vulkan pipelines (compute, graphics) and related resources.

Definition at line 23 of file BackendPipelineManager.hpp.

The documentation for this class was generated from the following files:
