MayaFlux::Core::VKGraphicsPipeline Class Reference

Vulkan graphics pipeline wrapper. More...

#include <VKGraphicsPipeline.hpp>

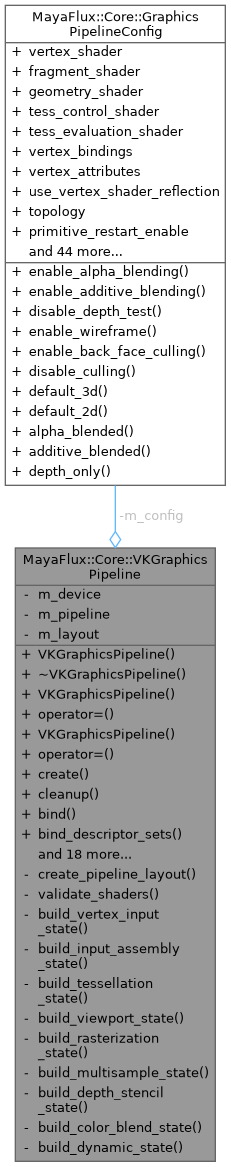

Collaboration diagram for MayaFlux::Core::VKGraphicsPipeline:

Public Member Functions
	VKGraphicsPipeline ()=default
	~VKGraphicsPipeline ()
	VKGraphicsPipeline (const VKGraphicsPipeline &)=delete
VKGraphicsPipeline &	operator= (const VKGraphicsPipeline &)=delete
	VKGraphicsPipeline (VKGraphicsPipeline &&) noexcept
VKGraphicsPipeline &	operator= (VKGraphicsPipeline &&) noexcept
bool	create (vk::Device device, const GraphicsPipelineConfig &config)
	Create graphics pipeline from configuration.
void	cleanup (vk::Device device)
	Cleanup pipeline resources.
void	bind (vk::CommandBuffer cmd)
	Bind pipeline to command buffer.
void	bind_descriptor_sets (vk::CommandBuffer cmd, std::span< vk::DescriptorSet > sets, uint32_t first_set=0)
	Bind descriptor sets.
void	push_constants (vk::CommandBuffer cmd, vk::ShaderStageFlags stages, uint32_t offset, uint32_t size, const void *data)
	Push constants.
template<typename T >
void	push_constants_typed (vk::CommandBuffer cmd, vk::ShaderStageFlags stages, const T &data)
	Typed push constants.
void	bind_vertex_buffers (vk::CommandBuffer cmd, uint32_t first_binding, std::span< vk::Buffer > buffers, std::span< vk::DeviceSize > offsets)
	Bind vertex buffers.
void	bind_vertex_buffer (vk::CommandBuffer cmd, vk::Buffer buffer, vk::DeviceSize offset=0, uint32_t binding=0)
	Bind single vertex buffer (common case)
void	bind_index_buffer (vk::CommandBuffer cmd, vk::Buffer buffer, vk::DeviceSize offset=0, vk::IndexType index_type=vk::IndexType::eUint32)
	Bind index buffer.
void	set_viewport (vk::CommandBuffer cmd, const vk::Viewport &viewport)
	Set viewport (if dynamic)
void	set_scissor (vk::CommandBuffer cmd, const vk::Rect2D &scissor)
	Set scissor (if dynamic)
void	set_line_width (vk::CommandBuffer cmd, float width)
	Set line width (if dynamic)
void	set_depth_bias (vk::CommandBuffer cmd, float constant_factor, float clamp, float slope_factor)
	Set depth bias (if dynamic)
void	set_blend_constants (vk::CommandBuffer cmd, const float constants[4])
	Set blend constants (if dynamic)
void	draw (vk::CommandBuffer cmd, uint32_t vertex_count, uint32_t instance_count=1, uint32_t first_vertex=0, uint32_t first_instance=0)
	Draw vertices.
void	draw_indexed (vk::CommandBuffer cmd, uint32_t index_count, uint32_t instance_count=1, uint32_t first_index=0, int32_t vertex_offset=0, uint32_t first_instance=0)
	Draw indexed vertices.
void	draw_indirect (vk::CommandBuffer cmd, vk::Buffer buffer, vk::DeviceSize offset, uint32_t draw_count, uint32_t stride)
	Draw indirect (dispatch from GPU buffer)
void	draw_indexed_indirect (vk::CommandBuffer cmd, vk::Buffer buffer, vk::DeviceSize offset, uint32_t draw_count, uint32_t stride)
	Draw indexed indirect.
vk::Pipeline	get () const
vk::PipelineLayout	get_layout () const
bool	is_valid () const
const GraphicsPipelineConfig &	get_config () const
	Get shader reflections (for introspection)

Private Member Functions
vk::PipelineLayout	create_pipeline_layout (vk::Device device, const GraphicsPipelineConfig &config)
	Create pipeline layout from config.
bool	validate_shaders (const GraphicsPipelineConfig &config)
	Validate shader stages.
vk::PipelineVertexInputStateCreateInfo	build_vertex_input_state (const GraphicsPipelineConfig &config, std::vector< vk::VertexInputBindingDescription > &bindings, std::vector< vk::VertexInputAttributeDescription > &attributes)
	Build vertex input state from config.
vk::PipelineInputAssemblyStateCreateInfo	build_input_assembly_state (const GraphicsPipelineConfig &config)
	Build input assembly state.
vk::PipelineTessellationStateCreateInfo	build_tessellation_state (const GraphicsPipelineConfig &config)
	Build tessellation state.
vk::PipelineViewportStateCreateInfo	build_viewport_state (const GraphicsPipelineConfig &config, std::vector< vk::Viewport > &viewports, std::vector< vk::Rect2D > &scissors)
	Build viewport state.
vk::PipelineRasterizationStateCreateInfo	build_rasterization_state (const GraphicsPipelineConfig &config)
	Build rasterization state.
vk::PipelineMultisampleStateCreateInfo	build_multisample_state (const GraphicsPipelineConfig &config)
	Build multisample state.
vk::PipelineDepthStencilStateCreateInfo	build_depth_stencil_state (const GraphicsPipelineConfig &config)
	Build depth stencil state.
vk::PipelineColorBlendStateCreateInfo	build_color_blend_state (const GraphicsPipelineConfig &config, std::vector< vk::PipelineColorBlendAttachmentState > &attachments)
	Build color blend state.
vk::PipelineDynamicStateCreateInfo	build_dynamic_state (const GraphicsPipelineConfig &config)
	Build dynamic state.

Private Attributes
vk::Device	m_device
vk::Pipeline	m_pipeline
vk::PipelineLayout	m_layout
GraphicsPipelineConfig	m_config

Detailed Description

Vulkan graphics pipeline wrapper.

Handles the complex graphics pipeline state machine. Unlike compute pipelines, graphics pipelines require extensive fixed-function configuration.

Responsibilities:

• Create graphics pipeline from config
• Manage pipeline layout
• Bind pipeline to command buffer
• Bind vertex/index buffers
• Bind descriptor sets
• Push constants
• Dynamic state updates (viewport, scissor, etc.)
• Draw commands

Thread Safety:

• NOT thread-safe
• Create on main thread, use on render thread

Definition at line 226 of file VKGraphicsPipeline.hpp.

---

The documentation for this class was generated from the following files:

• VKGraphicsPipeline.hpp
• VKGraphicsPipeline.cpp
