Configuration for creating a graphics pipeline. More...

#include <VKGraphicsPipeline.hpp>

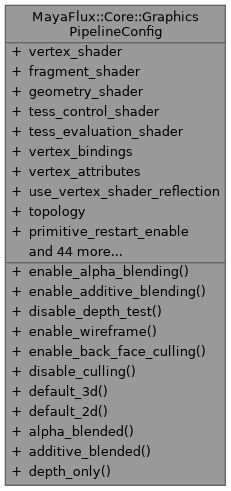

Collaboration diagram for MayaFlux::Core::GraphicsPipelineConfig:

Public Member Functions
void	enable_alpha_blending ()

void	enable_additive_blending ()

void	disable_depth_test ()

void	enable_wireframe ()

void	enable_back_face_culling ()

void	disable_culling ()

Static Public Member Functions
static GraphicsPipelineConfig	default_3d ()

static GraphicsPipelineConfig	default_2d ()

static GraphicsPipelineConfig	alpha_blended ()

static GraphicsPipelineConfig	additive_blended ()

static GraphicsPipelineConfig	depth_only ()

Public Attributes
std::shared_ptr< VKShaderModule >	vertex_shader = nullptr

std::shared_ptr< VKShaderModule >	fragment_shader = nullptr

std::shared_ptr< VKShaderModule >	geometry_shader = nullptr

std::shared_ptr< VKShaderModule >	tess_control_shader = nullptr

std::shared_ptr< VKShaderModule >	tess_evaluation_shader = nullptr

std::vector< VertexBinding >	vertex_bindings

std::vector< VertexAttribute >	vertex_attributes

bool	use_vertex_shader_reflection = true

vk::PrimitiveTopology	topology = vk::PrimitiveTopology::eTriangleList

bool	primitive_restart_enable = false

uint32_t	patch_control_points = 3

bool	dynamic_viewport = true

bool	dynamic_scissor = true

vk::Viewport	static_viewport {}

vk::Rect2D	static_scissor {}

bool	depth_clamp_enable = false

bool	rasterizer_discard_enable = false

vk::PolygonMode	polygon_mode = vk::PolygonMode::eFill

vk::CullModeFlags	cull_mode = vk::CullModeFlagBits::eBack

vk::FrontFace	front_face = vk::FrontFace::eCounterClockwise

bool	depth_bias_enable = false

float	depth_bias_constant_factor = 0.0f

float	depth_bias_clamp = 0.0f

float	depth_bias_slope_factor = 0.0f

float	line_width = 1.0f

vk::SampleCountFlagBits	rasterization_samples = vk::SampleCountFlagBits::e1

bool	sample_shading_enable = false

float	min_sample_shading = 1.0f

std::vector< vk::SampleMask >	sample_mask

bool	alpha_to_coverage_enable = false

bool	alpha_to_one_enable = false

bool	depth_test_enable = true

bool	depth_write_enable = true

vk::CompareOp	depth_compare_op = vk::CompareOp::eLess

bool	depth_bounds_test_enable = false

float	min_depth_bounds = 0.0f

float	max_depth_bounds = 1.0f

bool	stencil_test_enable = false

vk::StencilOpState	front_stencil {}

vk::StencilOpState	back_stencil {}

bool	logic_op_enable = false

vk::LogicOp	logic_op = vk::LogicOp::eCopy

std::vector< ColorBlendAttachment >	color_blend_attachments

std::array< float, 4 >	blend_constants = { 0.0f, 0.0f, 0.0f, 0.0f }

std::vector< vk::DynamicState >	dynamic_states

std::vector< vk::DescriptorSetLayout >	descriptor_set_layouts

std::vector< vk::PushConstantRange >	push_constant_ranges

vk::RenderPass	render_pass = nullptr

uint32_t	subpass = 0

bool	use_dynamic_rendering = false

std::vector< vk::Format >	color_attachment_formats

vk::Format	depth_attachment_format = vk::Format::eUndefined

vk::Format	stencil_attachment_format = vk::Format::eUndefined

vk::PipelineCache	cache = nullptr

Detailed Description

Configuration for creating a graphics pipeline.

Comprehensive graphics pipeline state. Vulkan requires ALL fixed-function state to be specified at pipeline creation time.

Definition at line 57 of file VKGraphicsPipeline.hpp.
