MayaFlux::Buffers::RootBuffer< BufferType > Class Template Reference

#include <RootBuffer.hpp>

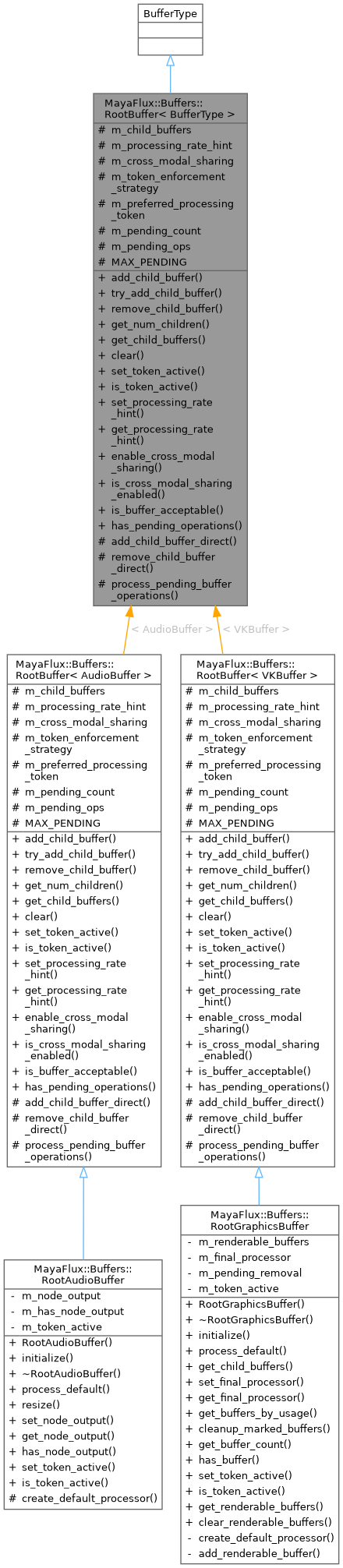

Inheritance diagram for MayaFlux::Buffers::RootBuffer< BufferType >:

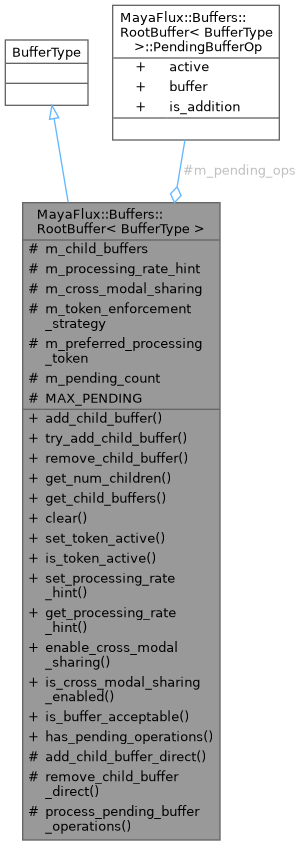

Collaboration diagram for MayaFlux::Buffers::RootBuffer< BufferType >:

Classes
struct	PendingBufferOp
	Structure for storing pending buffer add/remove operations. More...

Public Member Functions
virtual void	add_child_buffer (std::shared_ptr< BufferType > buffer)
	Adds a tributary buffer to this root buffer.
virtual bool	try_add_child_buffer (std::shared_ptr< BufferType > buffer, std::string *rejection_reason=nullptr)
	Attempts to add a child buffer without throwing exceptions.
virtual void	remove_child_buffer (std::shared_ptr< BufferType > buffer)
	Removes a tributary buffer from this root buffer.
size_t	get_num_children () const
	Gets the number of tributary buffers in the aggregation hierarchy.
const std::vector< std::shared_ptr< BufferType > > &	get_child_buffers () const
	Gets all tributary buffers in the aggregation hierarchy.
void	clear () override
	Resets all data values in this buffer and its tributaries.
virtual void	set_token_active (bool active)=0
	Activates/deactivates processing for the current token.
virtual bool	is_token_active () const =0
	Checks if the buffer is active for its assigned token.
virtual void	set_processing_rate_hint (uint32_t tick_rate)
	Sets processing rate hint for the buffer.
virtual uint32_t	get_processing_rate_hint () const
	Gets the processing rate hint.
virtual void	enable_cross_modal_sharing (bool enabled)
	Enables cross-modal data sharing.
virtual bool	is_cross_modal_sharing_enabled () const
	Checks if cross-modal sharing is enabled.
bool	is_buffer_acceptable (std::shared_ptr< BufferType > buffer, std::string *rejection_reason=nullptr) const
	Validates if a buffer is acceptable based on current token enforcement strategy.
bool	has_pending_operations () const

Protected Member Functions
void	add_child_buffer_direct (std::shared_ptr< BufferType > buffer)
void	remove_child_buffer_direct (std::shared_ptr< BufferType > buffer)
void	process_pending_buffer_operations ()
	Process pending operations - call this at start of processing cycles.

Protected Attributes
std::vector< std::shared_ptr< BufferType > >	m_child_buffers
	Vector of tributary buffers that contribute to this root buffer.
uint32_t	m_processing_rate_hint
	Processing rate hint for this buffer.
bool	m_cross_modal_sharing
	Whether this buffer allows cross-modal data sharing.
TokenEnforcementStrategy	m_token_enforcement_strategy { TokenEnforcementStrategy::STRICT }
	Current token enforcement strategy for this root buffer.
ProcessingToken	m_preferred_processing_token
	Preferred processing token for this root buffer.
std::atomic< uint32_t >	m_pending_count { 0 }
struct MayaFlux::Buffers::RootBuffer::PendingBufferOp	m_pending_ops [MAX_PENDING]

Static Protected Attributes
static constexpr size_t	MAX_PENDING = 64

Detailed Description

template<typename BufferType>
class MayaFlux::Buffers::RootBuffer< BufferType >

Definition at line 8 of file RootBuffer.hpp.

---

The documentation for this class was generated from the following file:

• RootBuffer.hpp
