Uploads TextureNode pixel data to GPU textures via TextureLoom. More...
#include <NodeTextureProcessor.hpp>
Inheritance diagram for MayaFlux::Buffers::NodeTextureProcessor:

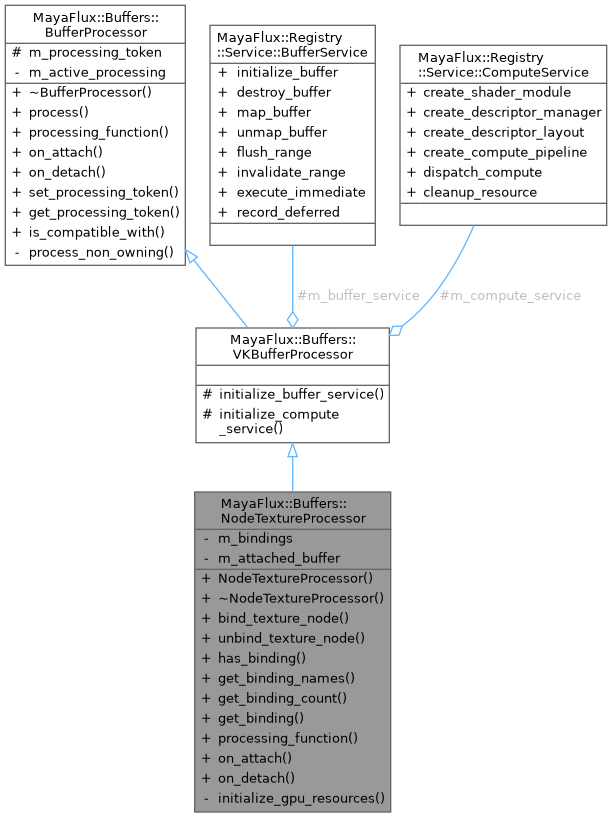

Collaboration diagram for MayaFlux::Buffers::NodeTextureProcessor:
Classes | |
| struct | TextureBinding |
| Represents a TextureNode → GPU texture binding. More... | |
Public Member Functions | |
| NodeTextureProcessor () | |
| ~NodeTextureProcessor () override=default | |
| void | bind_texture_node (const std::string &name, const std::shared_ptr< Nodes::GpuSync::TextureNode > &node, const std::shared_ptr< Core::VKImage > &texture) |
| Bind a TextureNode to a GPU texture. | |
| void | unbind_texture_node (const std::string &name) |
| Remove a texture binding. | |
| bool | has_binding (const std::string &name) const |
| Check if a binding exists. | |
| std::vector< std::string > | get_binding_names () const |
| Get all binding names. | |
| size_t | get_binding_count () const |
| Get number of active bindings. | |
| std::optional< TextureBinding > | get_binding (const std::string &name) const |
| Get a specific binding. | |
| void | processing_function (const std::shared_ptr< Buffer > &buffer) override |
| Process all texture uploads. | |
| void | on_attach (const std::shared_ptr< Buffer > &buffer) override |
| Called when this processor is attached to a buffer. | |
| void | on_detach (const std::shared_ptr< Buffer > &buffer) override |
| Called when this processor is detached from a buffer. | |
| Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor | |
| virtual | ~BufferProcessor ()=default |
| Virtual destructor for proper cleanup of derived classes. | |
| void | process (const std::shared_ptr< Buffer > &buffer) |
| Applies a computational transformation to the data in the provided buffer. | |
| virtual void | set_processing_token (ProcessingToken token) |
| Gets the preferred processing backend for this processor. | |
| virtual ProcessingToken | get_processing_token () const |
| Gets the current processing token for this buffer. | |
| virtual bool | is_compatible_with (const std::shared_ptr< Buffer > &) const |
| Checks if this processor can handle the specified buffer type. | |
Private Member Functions | |
| void | initialize_gpu_resources () |
Private Attributes | |
| std::unordered_map< std::string, TextureBinding > | m_bindings |
| std::shared_ptr< NodeTextureBuffer > | m_attached_buffer |
Additional Inherited Members | |
| Protected Member Functions inherited from MayaFlux::Buffers::VKBufferProcessor | |
| void | initialize_buffer_service () |
| void | initialize_compute_service () |
| Protected Attributes inherited from MayaFlux::Buffers::VKBufferProcessor | |
| Registry::Service::BufferService * | m_buffer_service = nullptr |
| Registry::Service::ComputeService * | m_compute_service = nullptr |
| Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor | |
| ProcessingToken | m_processing_token { ProcessingToken::AUDIO_BACKEND } |
Detailed Description
Uploads TextureNode pixel data to GPU textures via TextureLoom.
Manages one or more TextureNode → VKImage bindings. Each processing cycle:
- Checks if node->needs_gpu_update()
- Retrieves pixel data from node->get_pixel_buffer()
- Uploads directly to GPU texture via TextureLoom
- Clears node's dirty flag
Philosophy:
- Nodes generate pixels (CPU algorithms)
- Processor orchestrates upload (delegates to TextureLoom)
- Textures are VKImages, not VKBuffers
- TextureLoom handles all staging buffer logistics internally
- Multiple node→texture bindings share upload infrastructure
Usage (single binding - typical): auto buffer = std::make_shared<NodeTextureBuffer>(node, "noise"); buffer->setup_processors(Graphics); // Processor automatically created and bound
Usage (multiple bindings - advanced): auto staging = std::make_shared<NodeTextureBuffer>(primary_node); auto processor = staging->get_texture_processor();
processor->bind_texture_node("secondary", secondary_node, secondary_texture); processor->bind_texture_node("tertiary", tertiary_node, tertiary_texture);
staging->process_default(); // Uploads all three textures
Definition at line 48 of file NodeTextureProcessor.hpp.
