MayaFlux::Buffers::ContainerBuffer Class Reference
AudioBuffer implementation backed by a StreamContainer. More...
#include <ContainerBuffer.hpp>
Inheritance diagram for MayaFlux::Buffers::ContainerBuffer:

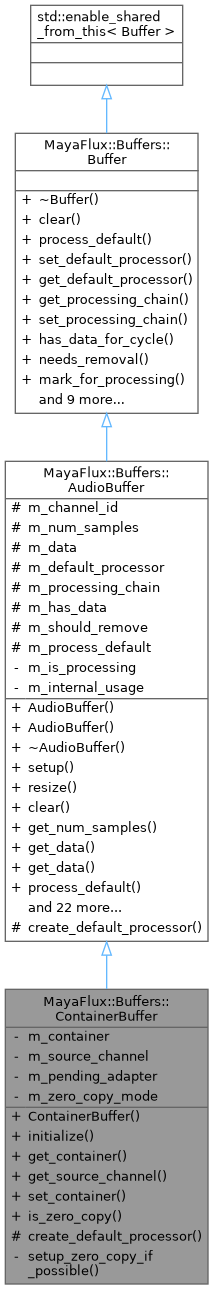

Collaboration diagram for MayaFlux::Buffers::ContainerBuffer:
Public Member Functions | |
| ContainerBuffer (uint32_t channel_id, uint32_t num_samples, std::shared_ptr< Kakshya::StreamContainer > container, uint32_t source_channel=0) | |
| Construct a ContainerBuffer for a specific channel and container. | |
| void | initialize () |
| Initialize the buffer after construction. | |
| std::shared_ptr< Kakshya::StreamContainer > | get_container () const |
| Get the backing StreamContainer. | |
| uint32_t | get_source_channel () const |
| Get the source channel in the container. | |
| void | set_container (std::shared_ptr< Kakshya::StreamContainer > container) |
| Update the container reference. | |
| bool | is_zero_copy () const |
| Check if buffer data is directly mapped to container (zero-copy). | |
| Public Member Functions inherited from MayaFlux::Buffers::AudioBuffer | |
| AudioBuffer () | |
| Creates a new uninitialized audio buffer. | |
| AudioBuffer (uint32_t channel_id, uint32_t num_samples=512) | |
| Creates a new audio buffer with specified channel and capacity. | |
| virtual | ~AudioBuffer () override=default |
| Virtual destructor for proper resource management. | |
| virtual void | setup (uint32_t channel, uint32_t num_samples) |
| Initializes the audio buffer with specified channel and capacity. | |
| virtual void | resize (uint32_t num_samples) |
| Adjusts the audio buffer's sample capacity. | |
| virtual void | clear () override |
| Resets all audio samples in the buffer to silence. | |
| virtual uint32_t | get_num_samples () const |
| Gets the current capacity of the audio buffer. | |
| virtual std::vector< double > & | get_data () |
| Gets mutable access to the buffer's underlying audio data. | |
| virtual const std::vector< double > & | get_data () const |
| Gets read-only access to the buffer's underlying audio data. | |
| virtual void | process_default () override |
| Applies the default audio transformation to the buffer's data. | |
| virtual uint32_t | get_channel_id () const |
| Gets the audio channel identifier for this buffer. | |
| void | set_channel_id (uint32_t id) |
| Sets the audio channel identifier for this buffer. | |
| virtual void | set_num_samples (uint32_t num_samples) |
| Sets the capacity of the audio buffer. | |
| virtual void | set_default_processor (std::shared_ptr< BufferProcessor > processor) override |
| Sets the default audio transformation processor for this buffer. | |
| virtual std::shared_ptr< BufferProcessor > | get_default_processor () const override |
| Gets the current default audio transformation processor. | |
| virtual std::shared_ptr< BufferProcessingChain > | get_processing_chain () override |
| Gets the audio transformation chain attached to this buffer. | |
| virtual void | set_processing_chain (std::shared_ptr< BufferProcessingChain > chain, bool force=false) override |
| Sets the audio transformation chain for this buffer. | |
| virtual double & | get_sample (uint32_t index) |
| Gets a reference to a specific audio sample in the buffer. | |
| virtual bool | has_data_for_cycle () const override |
| Checks if the audio buffer has data for the current processing cycle. | |
| virtual bool | needs_removal () const override |
| Checks if the buffer should be removed from the processing chain This is relevant when using SignalSourceContainers. | |
| virtual void | mark_for_processing (bool has_data) override |
| Marks the audio buffer for processing in the current cycle. | |
| virtual void | mark_for_removal () override |
| Marks the audio buffer for removal from processing chains. | |
| virtual void | enforce_default_processing (bool should_process) override |
| Controls whether the audio buffer should use default processing. | |
| virtual bool | needs_default_processing () override |
| Checks if the audio buffer should undergo default processing. | |
| bool | try_acquire_processing () override |
| Attempts to acquire processing rights for the buffer. | |
| void | release_processing () override |
| Releases processing rights for the buffer. | |
| bool | is_processing () const override |
| Checks if the buffer is currently being processed. | |
| virtual std::shared_ptr< AudioBuffer > | clone_to (uint32_t channel) |
| Creates a clone of this audio buffer for a specific channel. | |
| std::shared_ptr< Buffer > | clone_to (uint8_t dest_desc) override |
| Creates a clone of this buffer for a specific channel or usage enum. | |
| virtual bool | read_once (std::shared_ptr< AudioBuffer > buffer, bool force=false) |
| Reads audio data into the buffer from the audio backend. | |
| void | force_internal_usage (bool internal) override |
| Marks the buffer as internal-only, preventing root aggregation. | |
| bool | is_internal_only () const override |
| Checks if the buffer is marked as internal-only. | |
| Public Member Functions inherited from MayaFlux::Buffers::Buffer | |
| virtual | ~Buffer ()=default |
| Virtual destructor for proper resource management. | |
Protected Member Functions | |
| std::shared_ptr< BufferProcessor > | create_default_processor () override |
| Create the default processor (ContainerToBufferAdapter) for this buffer. | |
Private Member Functions | |
| void | setup_zero_copy_if_possible () |
| Attempt to enable zero-copy operation if container layout allows. | |
Private Attributes | |
| std::shared_ptr< Kakshya::StreamContainer > | m_container |
| uint32_t | m_source_channel |
| std::shared_ptr< BufferProcessor > | m_pending_adapter |
| bool | m_zero_copy_mode = false |
Additional Inherited Members | |
| Protected Attributes inherited from MayaFlux::Buffers::AudioBuffer | |
| uint32_t | m_channel_id |
| Audio channel identifier for this buffer. | |
| uint32_t | m_num_samples |
| Capacity of the buffer in audio samples. | |
| std::vector< double > | m_data |
| Vector storing the actual double-precision audio sample data. | |
| std::shared_ptr< BufferProcessor > | m_default_processor |
| Default audio transformation processor for this buffer. | |
| std::shared_ptr< BufferProcessingChain > | m_processing_chain |
| Audio transformation processing chain for this buffer. | |
| bool | m_has_data |
| Whether the audio buffer has data to process this cycle. | |
| bool | m_should_remove |
| Whether the audio buffer should be removed from processing chains. | |
| bool | m_process_default |
| Whether the audio buffer should be processed using its default processor. | |
Detailed Description
AudioBuffer implementation backed by a StreamContainer.
ContainerBuffer provides a bridge between the digital-first container system and the traditional AudioBuffer interface. It enables zero-copy or efficient extraction of audio data from StreamContainers (such as SoundFileContainer) for use in block-based DSP, node networks, and hardware output.
Key responsibilities:
- Maintains a reference to the backing StreamContainer and source channel.
- Supports zero-copy operation when container memory layout matches buffer needs.
- Falls back to cached extraction when zero-copy is not possible.
- Integrates with ContainerToBufferAdapter for data extraction and state management.
- Can be initialized and reconfigured at runtime for flexible routing.
While currently focused on audio, this pattern can be extended to other data types as more container reader processors are implemented.
- See also
- ContainerToBufferAdapter, StreamContainer, SoundFileContainer
Definition at line 146 of file ContainerBuffer.hpp.
The documentation for this class was generated from the following files:
