MayaFlux::Portal::Graphics::RenderFlow Class Reference

Graphics pipeline orchestration for dynamic rendering. More...

#include <RenderFlow.hpp>

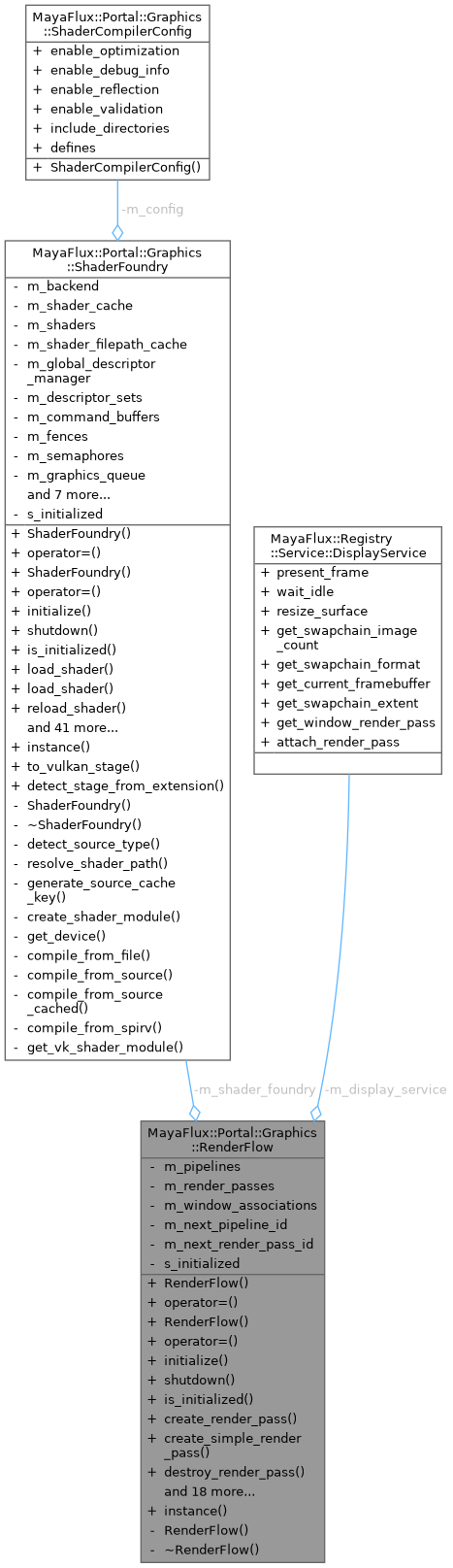

Collaboration diagram for MayaFlux::Portal::Graphics::RenderFlow:

Classes
struct	PipelineState
struct	WindowRenderAssociation

Public Member Functions
	RenderFlow (const RenderFlow &)=delete
RenderFlow &	operator= (const RenderFlow &)=delete
	RenderFlow (RenderFlow &&) noexcept=delete
RenderFlow &	operator= (RenderFlow &&) noexcept=delete
bool	initialize ()
void	stop ()
void	shutdown ()
bool	is_initialized () const
RenderPipelineID	create_pipeline (const RenderPipelineConfig &config, const std::vector< vk::Format > &color_formats, vk::Format depth_format=vk::Format::eUndefined)
	Create graphics pipeline for dynamic rendering (no render pass object)
void	destroy_pipeline (RenderPipelineID pipeline_id)
	Destroy a graphics pipeline.
void	begin_rendering (CommandBufferID cmd_id, const std::shared_ptr< Core::Window > &window, vk::Image swapchain_image, const std::array< float, 4 > &clear_color={ 0.0F, 0.0F, 0.0F, 1.0F })
	Begin dynamic rendering to a window.
void	end_rendering (CommandBufferID cmd_id, const std::shared_ptr< Core::Window > &window)
	End dynamic rendering.
void	bind_pipeline (CommandBufferID cmd_id, RenderPipelineID pipeline)
	Bind graphics pipeline.
void	bind_vertex_buffers (CommandBufferID cmd_id, const std::vector< std::shared_ptr< Buffers::VKBuffer > > &buffers, uint32_t first_binding=0)
	Bind vertex buffers.
void	bind_index_buffer (CommandBufferID cmd_id, const std::shared_ptr< Buffers::VKBuffer > &buffer, vk::IndexType index_type=vk::IndexType::eUint32)
	Bind index buffer.
void	bind_descriptor_sets (CommandBufferID cmd_id, RenderPipelineID pipeline, const std::vector< DescriptorSetID > &descriptor_sets)
	Bind descriptor sets.
void	push_constants (CommandBufferID cmd_id, RenderPipelineID pipeline, const void *data, size_t size)
	Push constants.
void	draw (CommandBufferID cmd_id, uint32_t vertex_count, uint32_t instance_count=1, uint32_t first_vertex=0, uint32_t first_instance=0)
	Draw command.
void	draw_indexed (CommandBufferID cmd_id, uint32_t index_count, uint32_t instance_count=1, uint32_t first_index=0, int32_t vertex_offset=0, uint32_t first_instance=0)
	Indexed draw command.
void	register_window_for_rendering (const std::shared_ptr< Core::Window > &window)
	Register a window for dynamic rendering.
void	unregister_window (const std::shared_ptr< Core::Window > &window)
	Unregister a window from rendering.
bool	is_window_registered (const std::shared_ptr< Core::Window > &window) const
	Check if a window is registered for rendering.
std::vector< std::shared_ptr< Core::Window > >	get_registered_windows () const
	Get all registered windows.
std::vector< DescriptorSetID >	allocate_pipeline_descriptors (RenderPipelineID pipeline)
	Allocate descriptor sets for pipeline.

Static Public Member Functions
static RenderFlow &	instance ()

Private Member Functions
	RenderFlow ()=default
	~RenderFlow ()
void	cleanup_pipelines ()
vk::ImageView	get_current_image_view (const std::shared_ptr< Core::Window > &window)
	Get current image view for window.

Private Attributes
std::unordered_map< RenderPipelineID, PipelineState >	m_pipelines
std::unordered_map< std::shared_ptr< Core::Window >, WindowRenderAssociation >	m_window_associations
std::atomic< uint64_t >	m_next_pipeline_id { 1 }
ShaderFoundry *	m_shader_foundry = nullptr
Registry::Service::DisplayService *	m_display_service = nullptr

Static Private Attributes
static bool	s_initialized = false

Detailed Description

Graphics pipeline orchestration for dynamic rendering.

RenderFlow is the rendering counterpart to ComputePress. It manages graphics pipelines and draw command recording using Vulkan 1.3 dynamic rendering.

Responsibilities:

• Create graphics pipelines for dynamic rendering
• Record render commands to secondary command buffers
• Manage dynamic rendering state (begin/end rendering)
• Coordinate with ShaderFoundry for resources

Design Philosophy (parallel to ComputePress):

• Uses ShaderFoundry for low-level resources
• Provides high-level rendering API
• Backend-agnostic interface
• Integrates with RootGraphicsBuffer
• No render pass objects - uses vkCmdBeginRendering/vkCmdEndRendering

Usage Pattern:

auto& flow = Portal::Graphics::get_render_flow();
auto& foundry = Portal::Graphics::get_shader_foundry();

// Create pipeline for dynamic rendering
RenderPipelineConfig config;
config.vertex_shader = vertex_id;
config.fragment_shader = fragment_id;
config.semantic_vertex_layout = buffer->get_vertex_layout();
auto pipeline_id = flow.create_pipeline(config, { swapchain_format });

// In RenderProcessor - record secondary command buffer:
auto cmd_id = foundry.begin_secondary_commands(swapchain_format);
flow.bind_pipeline(cmd_id, pipeline_id);
flow.bind_vertex_buffers(cmd_id, {buffer});
flow.draw(cmd_id, vertex_count);
foundry.end_commands(cmd_id);

// In PresentProcessor - execute secondaries in primary:
auto primary_id = foundry.begin_commands(CommandBufferType::GRAPHICS);
flow.begin_rendering(primary_id, window, swapchain_image);
primary_cmd.executeCommands(secondary_buffers);
flow.end_rendering(primary_id, window);
display_service->submit_and_present(window, primary_cmd);

Definition at line 68 of file RenderFlow.hpp.

---

The documentation for this class was generated from the following files:

• RenderFlow.hpp
• RenderFlow.cpp
