MayaFlux::Nodes::GpuSync::ComputeOutNode Class Reference
Node that reads back data from GPU buffer to CPU. More...
#include <ComputeOutNode.hpp>
Inheritance diagram for MayaFlux::Nodes::GpuSync::ComputeOutNode:

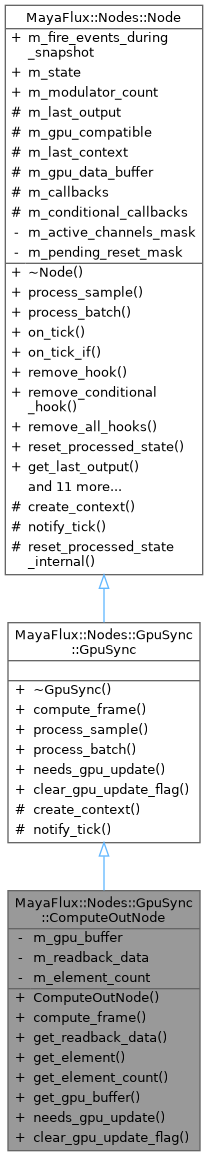

Collaboration diagram for MayaFlux::Nodes::GpuSync::ComputeOutNode:
Public Member Functions | |
| ComputeOutNode (const std::shared_ptr< Buffers::VKBuffer > &buffer, size_t element_count) | |
| Construct with GPU buffer and element count. | |
| void | compute_frame () override |
| Compute GPU data for this frame. | |
| const std::vector< double > & | get_readback_data () const |
| Get full readback array. | |
| double | get_element (size_t index) const |
| Get specific element from readback data. | |
| size_t | get_element_count () const |
| Get number of elements. | |
| std::shared_ptr< Buffers::VKBuffer > | get_gpu_buffer () const |
| Get GPU buffer. | |
| bool | needs_gpu_update () const override |
| Mark if this node needs GPU binding update. | |
| void | clear_gpu_update_flag () override |
| Clear the "needs update" flag after GPU binding. | |
| void | update_context (double value) override |
| Update context with current readback data. | |
| NodeContext & | get_last_context () override |
| Get last created context object. | |
| Public Member Functions inherited from MayaFlux::Nodes::GpuSync::GpuSync | |
| ~GpuSync () override=default | |
| double | process_sample (double) override |
| Single sample processing hook. | |
| std::vector< double > | process_batch (unsigned int num_samples) override |
| Batch processing for GPU nodes. | |
| Public Member Functions inherited from MayaFlux::Nodes::Node | |
| virtual | ~Node ()=default |
| Virtual destructor for proper cleanup of derived classes. | |
| virtual void | on_tick (const NodeHook &callback) |
| Registers a callback to be called on each tick. | |
| virtual void | on_tick_if (const NodeCondition &condition, const NodeHook &callback) |
| Registers a conditional callback. | |
| virtual bool | remove_hook (const NodeHook &callback) |
| Removes a previously registered callback. | |
| virtual bool | remove_conditional_hook (const NodeCondition &callback) |
| Removes a previously registered conditional callback. | |
| virtual void | remove_all_hooks () |
| Removes all registered callbacks. | |
| virtual void | reset_processed_state () |
| Resets the processed state of the node and any attached input nodes. | |
| virtual double | get_last_output () |
| Retrieves the most recent output value produced by the node. | |
| void | register_channel_usage (uint32_t channel_id) |
| Mark the specificed channel as a processor/user. | |
| void | unregister_channel_usage (uint32_t channel_id) |
| Removes the specified channel from the usage tracking. | |
| bool | is_used_by_channel (uint32_t channel_id) const |
| Checks if the node is currently used by a specific channel. | |
| void | request_reset_from_channel (uint32_t channel_id) |
| Requests a reset of the processed state from a specific channel. | |
| const std::atomic< uint32_t > & | get_channel_mask () const |
| Retrieves the current bitmask of active channels using this node. | |
| void | set_gpu_compatible (bool compatible) |
| Sets whether the node is compatible with GPU processing. | |
| bool | is_gpu_compatible () const |
| Checks if the node supports GPU processing. | |
| std::span< const float > | get_gpu_data_buffer () const |
| Provides access to the GPU data buffer. | |
| virtual void | save_state ()=0 |
| Saves the node's current state for later restoration Recursively cascades through all connected modulator nodes Protected - only NodeSourceProcessor and NodeBuffer can call. | |
| virtual void | restore_state ()=0 |
| Restores the node's state from the last save Recursively cascades through all connected modulator nodes Protected - only NodeSourceProcessor and NodeBuffer can call. | |
| bool | try_claim_snapshot_context (uint64_t context_id) |
| Attempt to claim snapshot context for this processing cycle. | |
| bool | is_in_snapshot_context (uint64_t context_id) const |
| Check if currently in a snapshot context. | |
| void | release_snapshot_context (uint64_t context_id) |
| Release snapshot context. | |
| bool | has_active_snapshot () const |
| Check if node is currently being snapshotted by any context. | |
| uint64_t | get_active_snapshot_context () const |
| Get the active snapshot context ID. | |
| void | add_buffer_reference () |
| Increments the buffer reference count This method is called when a new buffer starts using this node to ensure proper lifecycle management. | |
| void | remove_buffer_reference () |
| Decrements the buffer reference count This method is called when a buffer stops using this node to ensure proper lifecycle management. | |
| bool | mark_buffer_processed () |
| Marks the node as having been processed by a buffer. | |
| void | request_buffer_reset () |
| Requests a reset of the buffer state. | |
| bool | is_buffer_processed () const |
| Checks if the buffer has been processed. | |
| bool | is_in_network () const |
| Sets whether the node is part of a NodeNetwork. | |
| void | set_in_network (bool networked) |
| Marks the node as being part of a NodeNetwork. | |
Protected Attributes | |
| std::vector< float > | m_readback_float_buffer |
| ComputeOutContext | m_context { 0.0, {}, 0 } |
| Protected Attributes inherited from MayaFlux::Nodes::Node | |
| double | m_last_output { 0 } |
| The most recent sample value generated by this oscillator. | |
| bool | m_gpu_compatible {} |
| Flag indicating if the node supports GPU processing This flag is set by derived classes to indicate whether the node can be processed on the GPU. | |
| std::vector< float > | m_gpu_data_buffer |
| GPU data buffer for context objects. | |
| std::vector< NodeHook > | m_callbacks |
| Collection of standard callback functions. | |
| std::vector< std::pair< NodeHook, NodeCondition > > | m_conditional_callbacks |
| Collection of conditional callback functions with their predicates. | |
| bool | m_networked_node {} |
| Flag indicating if the node is part of a NodeNetwork This flag is used to disable event firing when the node is managed within a NodeNetwork, preventing redundant or conflicting event notifications. | |
| bool | m_state_saved {} |
| tracks if the node's state has been saved by a snapshot operation | |
Private Attributes | |
| std::shared_ptr< Buffers::VKBuffer > | m_gpu_buffer |
| std::vector< double > | m_readback_data |
| size_t | m_element_count |
Additional Inherited Members | |
| Public Attributes inherited from MayaFlux::Nodes::Node | |
| bool | m_fire_events_during_snapshot = false |
| Internal flag controlling whether notify_tick fires during state snapshots Default: false (events don't fire during isolated buffer processing) Can be exposed in future if needed via concrete implementation in parent. | |
| std::atomic< Utils::NodeState > | m_state { Utils::NodeState::INACTIVE } |
| Atomic state flag tracking the node's processing status. | |
| std::atomic< uint32_t > | m_modulator_count { 0 } |
| Counter tracking how many other nodes are using this node as a modulator. | |
| Protected Member Functions inherited from MayaFlux::Nodes::GpuSync::GpuSync | |
| void | notify_tick (double) override |
| GPU sync nodes don't emit tick callbacks. | |
| Protected Member Functions inherited from MayaFlux::Nodes::Node | |
| virtual void | reset_processed_state_internal () |
| Resets the processed state of the node directly. | |
Detailed Description
Node that reads back data from GPU buffer to CPU.
Facilitates GPU → CPU data transfer by downloading compute shader results into a CPU-accessible vector. Useful for feedback loops where GPU computation results need to influence CPU-side node processing or decision-making.
Usage: // GPU computes particle collisions auto collision_buffer = std::make_shared<VKBuffer>(...); auto collision_node = std::make_shared<ComputeOutNode>(collision_buffer, 1);
// Node reads collision count from GPU double collision_count = collision_node->process_sample();
Definition at line 46 of file ComputeOutNode.hpp.
The documentation for this class was generated from the following files:
