MayaFlux::IO::IOManager Class Reference

Optional orchestration layer for IO reader lifetime and IOService dispatch. More...

#include <IOManager.hpp>

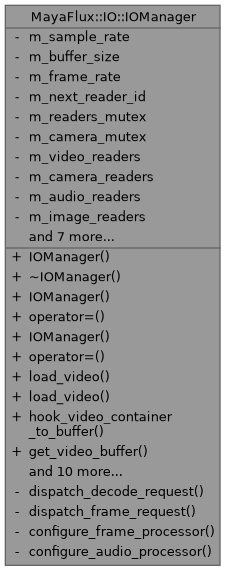

Collaboration diagram for MayaFlux::IO::IOManager:

Classes
struct	AudioCaptureState
struct	SpatialCaptureEntry
struct	VideoCaptureState

Public Member Functions
uint32_t	capture_output (const std::string &filepath, AVCodecID codec_id=AV_CODEC_ID_NONE)
	Begin continuous capture of live audio output to a file.
uint32_t	capture_spatial (const std::string &filepath, std::vector< IO::SpatialCaptureSource > sources, uint32_t max_frames=0, uint64_t frame_interval=1)
	Begin (or join) recording time-sampled streams into an Alembic archive.
uint32_t	capture_volume (const std::shared_ptr< Buffers::VolumeGridBuffer > &volume, const std::string &path_pattern, const std::vector< std::string > &field_names={}, const IO::VolumeWriteOptions &options={}, uint32_t max_frames=0, uint64_t frame_interval=1)
	Begin recording a numbered .vdb sequence from a volume.
uint32_t	capture_window (const std::shared_ptr< Core::Window > &window, const std::string &filepath, double frame_rate, AVCodecID codec_id=AV_CODEC_ID_NONE)
	Begin continuous capture of a window's rendered frames to a file.
std::shared_ptr< SoundFileWriter >	create_writer (const std::string &filepath, uint32_t channels, uint32_t sample_rate=48000, AVCodecID codec_id=AV_CODEC_ID_NONE)
	Construct an open SoundFileWriter the caller drives manually.
std::shared_ptr< VideoFileWriter >	create_writer (const std::string &filepath, uint32_t width, uint32_t height, double frame_rate, AVPixelFormat src_pixel_format, AVCodecID codec_id=AV_CODEC_ID_NONE)
	Construct an open VideoFileWriter the caller drives manually.
std::vector< std::shared_ptr< Buffers::SoundContainerBuffer > >	get_audio_buffers (const std::shared_ptr< Kakshya::SoundFileContainer > &container) const
	Retrieve the SoundContainerBuffers created for a container.
std::vector< uint32_t >	get_audio_capture_ids () const
	Returns all active audio capture IDs.
std::vector< std::shared_ptr< SoundFileReader > >	get_audio_readers () const
	Returns all retained audio readers.
std::shared_ptr< Buffers::VideoContainerBuffer >	get_camera_buffer (const std::shared_ptr< Kakshya::CameraContainer > &container) const
	Retrieve the VideoContainerBuffer created for a camera container.
std::shared_ptr< CameraSource >	get_camera_reader (uint64_t id) const
	Returns the camera source assigned to the given ID, or nullptr.
std::vector< uint64_t >	get_camera_reader_ids () const
	Returns all active camera reader IDs.
std::shared_ptr< Kakshya::SoundFileContainer >	get_extracted_audio (const std::shared_ptr< Kakshya::VideoFileContainer > &container) const
	Retrieve the SoundFileContainer extracted from a video file.
std::vector< std::shared_ptr< ImageReader > >	get_image_readers () const
	Returns all retained image readers.
std::vector< std::shared_ptr< Buffers::VolumeGridBuffer > >	get_loaded_volumes () const
	Returns all VolumeGridBuffers created via load_volume().
std::vector< std::shared_ptr< ModelReader > >	get_model_readers () const
	Returns all retained model readers.
std::vector< std::shared_ptr< SoundFileWriter > >	get_sound_writers () const
	Returns all registered SoundFileWriters created via create_writer() or write().
std::vector< uint32_t >	get_spatial_capture_ids () const
	Returns all active spatial capture IDs.
std::shared_ptr< Buffers::VideoContainerBuffer >	get_video_buffer (const std::shared_ptr< Kakshya::VideoStreamContainer > &container) const
	Retrieve the VideoContainerBuffer created for a container.
std::vector< uint32_t >	get_video_capture_ids () const
	Returns all active video capture IDs (capture_window()).
std::shared_ptr< VideoFileReader >	get_video_reader (uint64_t id) const
	Returns the video reader assigned to the given ID, or nullptr.
std::vector< uint64_t >	get_video_reader_ids () const
	Returns all active video reader IDs.
std::vector< std::shared_ptr< VideoFileWriter > >	get_video_writers () const
	Returns all VideoFileWriters created via create_writer().
std::vector< uint32_t >	get_volume_capture_ids () const
	Returns all active volume capture IDs.
std::vector< std::shared_ptr< Buffers::SoundContainerBuffer > >	hook_audio_container_to_buffers (const std::shared_ptr< Kakshya::SoundFileContainer > &container)
	Wire a SoundFileContainer to the audio buffer system.
std::shared_ptr< Buffers::VideoContainerBuffer >	hook_camera_to_buffer (const std::shared_ptr< Kakshya::CameraContainer > &container)
	Wire a CameraContainer to the graphics buffer system.
std::shared_ptr< Buffers::VideoContainerBuffer >	hook_video_container_to_buffer (const std::shared_ptr< Kakshya::VideoStreamContainer > &container)
	Wire a video container to the graphics buffer system.
	IOManager (const IOManager &)=delete
	IOManager (Core::GlobalStreamInfo &stream_info, uint32_t frame_rate, const std::shared_ptr< Buffers::BufferManager > &buffer_manager, const std::shared_ptr< Vruta::TaskScheduler > &scheduler)
	Construct IOManager and register the IOService into BackendRegistry.
	IOManager (IOManager &&)=delete
std::shared_ptr< Kakshya::SoundFileContainer >	load_audio (const std::string &filepath, VideoLoadConfig config={})
	Load an audio file into a SoundFileContainer.
std::shared_ptr< Kakshya::DynamicSoundStream >	load_audio_bounded (const std::string &filepath, uint64_t max_frames=0, bool truncate=false)
	Load an audio file into a fully resident, size-bounded DynamicSoundStream.
std::shared_ptr< Kakshya::CompositeContainer >	load_composite (const std::string &filepath, std::optional< Kakshya::CompositeLayout > layout=std::nullopt, size_t batch_size=1)
	Load a complete Composite file into an owning container.
std::shared_ptr< Buffers::TextureBuffer >	load_image (const std::string &filepath, int desired_channels=4, std::optional< Kakshya::Region > region=std::nullopt)
	Load an image file into a TextureBuffer.
std::vector< std::shared_ptr< Buffers::MeshBuffer > >	load_mesh (const std::string &filepath, TextureResolver resolver=nullptr)
	Load all meshes from a 3D model file into MeshBuffer instances.
std::shared_ptr< Nodes::Network::MeshNetwork >	load_mesh_network (const std::string &filepath, TextureResolver resolver=nullptr)
	Load a 3D model file as a MeshNetwork.
std::shared_ptr< Kakshya::VideoFileContainer >	load_video (const std::string &filepath)
	Load a video file into a VideoFileContainer.
VideoLoadResult	load_video (const std::string &filepath, VideoLoadConfig config)
	Load a video file into a VideoFileContainer.
std::shared_ptr< Buffers::VolumeGridBuffer >	load_volume (const std::string &filepath, const IO::VolumeReadOptions &options={})
	Load a volume file into a newly constructed VolumeGridBuffer.
std::shared_ptr< Kakshya::CameraContainer >	open_camera (const CameraConfig &config)
	Open an FFmpeg camera device and create a CameraContainer.
std::shared_ptr< CompositeReader >	open_composite_reader (const std::string &filepath, std::optional< Kakshya::CompositeLayout > layout=std::nullopt)
	Open a schema-bearing reader selected by file format.
std::shared_ptr< CompositeWriter >	open_composite_writer (const std::string &filepath, const Kakshya::CompositeLayout &layout)
	Open a Composite writer selected by the output file format.
IOManager &	operator= (const IOManager &)=delete
IOManager &	operator= (IOManager &&)=delete
uint64_t	register_camera_source (std::shared_ptr< CameraSource > source)
	Assign a globally unique reader_id and take ownership of a CameraSource that is already open.
uint64_t	register_video_reader (std::shared_ptr< VideoFileReader > reader)
	Assign a globally unique reader_id and take ownership of a reader.
void	release_camera_source (uint64_t reader_id)
	Release ownership of the camera source identified by reader_id.
void	release_video_reader (uint64_t reader_id)
	Release ownership of the reader identified by reader_id.
bool	save_composite (const std::shared_ptr< Kakshya::CompositeContainer > &container, const std::string &filepath)
	Save a complete CompositeContainer in a supported format.
bool	save_image (const std::shared_ptr< Buffers::TextBuffer > &buffer, const std::string &filepath, const IO::ImageWriteOptions &options={})
bool	save_image (const std::shared_ptr< Buffers::TextureBuffer > &buffer, const std::string &filepath, const IO::ImageWriteOptions &options={})
bool	save_image (const std::shared_ptr< Core::VKImage > &image, const std::string &filepath, const IO::ImageWriteOptions &options={})
	Save image data to disk asynchronously.
bool	save_image (IO::ImageData data, const std::string &filepath, const IO::ImageWriteOptions &options={})
	Save an already-downloaded ImageData to disk asynchronously.
bool	save_mesh (const std::shared_ptr< Buffers::ComputeMeshBuffer > &buffer, const std::string &filepath, const IO::ModelWriteOptions &options={})
	Save a ComputeMeshBuffer's current live geometry to disk asynchronously.
bool	save_mesh (const std::shared_ptr< Buffers::MeshBuffer > &mesh_buffer, const std::string &filepath, const IO::ModelWriteOptions &options={})
	Save a MeshBuffer's mesh data to disk asynchronously.
bool	save_mesh (const std::shared_ptr< Nodes::Network::MeshNetwork > &network, const std::string &filepath, const IO::ModelWriteOptions &options={})
	Save a MeshNetwork's current slots to disk asynchronously.
bool	save_mesh (const std::vector< Kakshya::MeshData > &meshes, const std::string &filepath, const IO::ModelWriteOptions &options={})
	Save one or more meshes to disk asynchronously.
bool	save_mesh_snapshot (const std::shared_ptr< Buffers::ComputeMeshBuffer > &buffer, const std::string &path_pattern, const IO::ModelWriteOptions &options={})
	Save a ComputeMeshBuffer with a millisecond epoch timestamp spliced into the path, queued asynchronously.
bool	save_spatial_snapshot (std::vector< IO::SpatialCaptureSource > sources, const std::string &path_pattern)
	Save every source once, as a single time sample, with a millisecond epoch timestamp spliced into the path, queued asynchronously.
bool	save_volume (const std::shared_ptr< Buffers::VolumeGridBuffer > &volume, const std::string &filepath, const IO::VolumeWriteOptions &options={}, const std::vector< std::string > &field_names={})
	Download and save a GPU-resident volume to disk asynchronously.
bool	save_volume (Kakshya::VolumeData data, const std::string &filepath, const IO::VolumeWriteOptions &options={})
	Save an already-downloaded VolumeData to disk asynchronously.
void	shutdown ()
	Unregisters IOService and releases readers, writers, buffers and caches.
void	stop ()
	Finalizes all in-flight output while consumers are still running.
void	stop_audio_capture (uint32_t capture_id)
	Stop a running audio capture and finalise the file.
void	stop_capture (const std::shared_ptr< Core::Window > &window)
	Stop the active window capture and finalise the file.
void	stop_spatial_capture (uint32_t capture_id)
	Stop a running spatial capture and release it.
void	stop_video_capture (uint32_t capture_id)
	Stop a running video capture and finalise the file.
void	stop_volume_capture (uint32_t capture_id)
	Stop a running volume capture and release it.
void	wait_for_pending_saves ()
	Wait for all in-flight save operations to complete.
void	write (const std::shared_ptr< Kakshya::SoundStreamContainer > &container, const std::string &filepath, AVCodecID codec_id=AV_CODEC_ID_NONE)
	Write a SoundStreamContainer to file in one shot.
	~IOManager ()
	Calls shutdown() if it has not already run.

Private Member Functions
void	configure_audio_processor (const std::shared_ptr< Kakshya::SoundFileContainer > &container) const
void	configure_frame_processor (const std::shared_ptr< Kakshya::VideoFileContainer > &container) const
void	dispatch_decode_request (uint64_t reader_id)
	IOService::request_decode target — shared-lock lookup + signal_decode().
void	dispatch_frame_request (uint64_t reader_id)
	IOService::request_frame target — shared-lock lookup + pull_frame_all().
void	track_save_task (std::future< bool > fut)
	Retain a save task in m_save_tasks and opportunistically reclaim finished ones.

Private Attributes
Registry::Service::AudioBackendService *	m_audio_backend_service {}
std::unordered_map< std::shared_ptr< Kakshya::SoundFileContainer >, std::vector< std::shared_ptr< Buffers::SoundContainerBuffer > > >	m_audio_buffers
std::unordered_map< uint32_t, AudioCaptureState >	m_audio_captures
std::mutex	m_audio_captures_mutex
std::vector< std::shared_ptr< SoundFileReader > >	m_audio_readers
std::shared_ptr< Buffers::BufferManager >	m_buffer_manager
std::shared_mutex	m_buffers_mutex
std::unordered_map< std::shared_ptr< Kakshya::CameraContainer >, std::shared_ptr< Buffers::VideoContainerBuffer > >	m_camera_buffers
std::shared_mutex	m_camera_mutex
std::unordered_map< uint64_t, std::shared_ptr< CameraSource > >	m_camera_readers
std::unordered_map< std::shared_ptr< Kakshya::VideoFileContainer >, std::shared_ptr< Kakshya::SoundFileContainer > >	m_extracted_audio
uint32_t	m_frame_rate
std::vector< std::shared_ptr< ImageReader > >	m_image_readers
std::shared_ptr< Registry::Service::IOService >	m_io_service
std::vector< std::shared_ptr< Buffers::VolumeGridBuffer > >	m_loaded_volumes
std::vector< std::shared_ptr< ModelReader > >	m_model_readers
std::atomic< uint64_t >	m_next_reader_id { 1 }
std::atomic< uint32_t >	m_next_spatial_capture_id { 1 }
std::atomic< uint32_t >	m_next_video_capture_id { 1 }
std::atomic< uint32_t >	m_next_volume_capture_id { 1 }
std::shared_mutex	m_readers_mutex
Parallel::AsyncGroup< bool >	m_save_tasks
std::shared_ptr< Vruta::TaskScheduler >	m_scheduler
std::atomic< bool >	m_shutdown_done { false }
std::unordered_map< std::string, int >	m_spatial_cache_refcounts
	Closes+erases a cache at zero.
std::unordered_map< std::string, std::shared_ptr< IO::SpatialCache > >	m_spatial_caches
std::unordered_map< uint32_t, SpatialCaptureEntry >	m_spatial_captures
std::mutex	m_spatial_captures_mutex
std::atomic< bool >	m_stop_done { false }
Core::GlobalStreamInfo &	m_stream_info
std::unordered_map< std::shared_ptr< Kakshya::VideoStreamContainer >, std::shared_ptr< Buffers::VideoContainerBuffer > >	m_video_buffers
std::unordered_map< uint32_t, VideoCaptureState >	m_video_captures
std::mutex	m_video_captures_mutex
std::unordered_map< uint64_t, std::shared_ptr< VideoFileReader > >	m_video_readers
std::vector< std::shared_ptr< VideoFileWriter > >	m_video_writers
std::unordered_map< uint32_t, std::unique_ptr< IO::VolumeCapture > >	m_volume_captures
std::mutex	m_volume_captures_mutex
std::vector< std::shared_ptr< SoundFileWriter > >	m_writers
std::mutex	m_writers_mutex

Detailed Description

Optional orchestration layer for IO reader lifetime and IOService dispatch.

MayaFlux IO readers are fully self-sufficient — VideoFileReader, SoundFileReader, and ImageReader can all be used standalone without this class. IOManager exists to solve problems that only arise at scale:

• Globally unique reader_ids across concurrent VideoFileReader instances, so IOService::request_decode routes to the correct decode thread.
• A single IOService registration backed by a keyed dispatch map, rather than each reader overwriting the previous registration.
• Shared ownership of VideoFileReader instances whose background decode thread must outlive the scope in which they were created.
• High-level load/hook functions that collapse the full open→load→processor setup→buffer wiring sequence into single calls, mirroring what Depot does for audio and eliminating the boilerplate currently required for video.

VideoFileReader detects the IOService registration generically via BackendRegistry and skips its own registration — no IOManager-specific knowledge in the reader.

Levels of integration (all valid):

1. VideoFileReader standalone, single stream — self-registers, self-ids.
2. IOManager constructed directly — multi-stream safe, no Engine required.
3. Engine constructs IOManager in Init() — fully orchestrated, zero user wiring.

Definition at line 118 of file IOManager.hpp.

---

The documentation for this class was generated from the following files:

• IOManager.hpp
• IOManager.cpp
