MayaFlux::Kakshya::SoundFileContainer Class Reference
File-backed audio container with complete streaming functionality. More...
#include <SoundFileContainer.hpp>

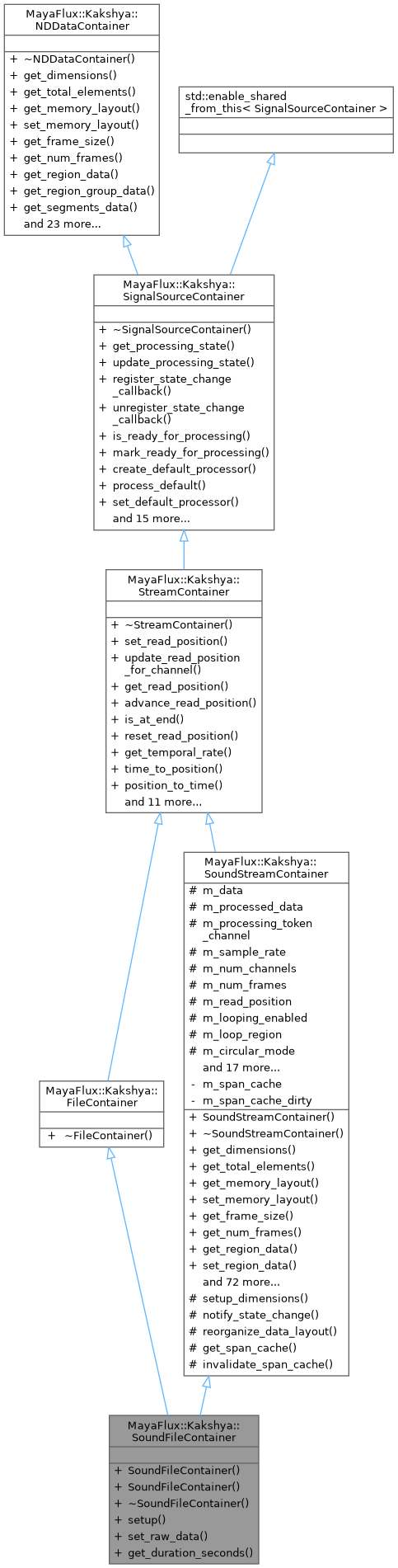

Inheritance diagram for MayaFlux::Kakshya::SoundFileContainer:

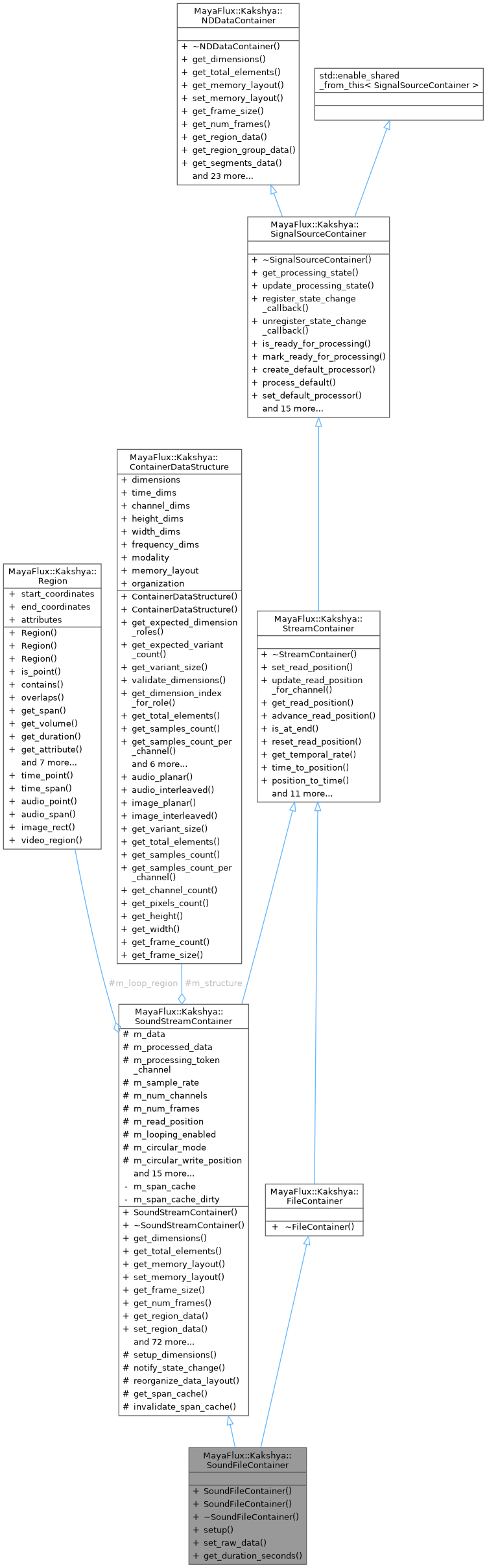

Collaboration diagram for MayaFlux::Kakshya::SoundFileContainer:
Public Member Functions | |
| SoundFileContainer () | |
| Construct a SoundFileContainer with default parameters Uses reasonable defaults suitable for file containers. | |
| SoundFileContainer (uint32_t sample_rate, uint32_t num_channels, uint64_t initial_capacity=0) | |
| Construct a SoundFileContainer with specific parameters. | |
| ~SoundFileContainer ()=default | |
| void | setup (uint64_t num_frames, uint32_t sample_rate, uint32_t num_channels) |
| Setup the container with file parameters. | |
| void | set_raw_data (const std::vector< DataVariant > &data) |
| Set raw data from external source (e.g., file loading) | |
| double | get_duration_seconds () const |
| Enable debug output for this container. | |
| Public Member Functions inherited from MayaFlux::Kakshya::FileContainer | |
| virtual | ~FileContainer ()=default |
| Public Member Functions inherited from MayaFlux::Kakshya::StreamContainer | |
| virtual | ~StreamContainer ()=default |
| Public Member Functions inherited from MayaFlux::Kakshya::SignalSourceContainer | |
| ~SignalSourceContainer () override=default | |
| Public Member Functions inherited from MayaFlux::Kakshya::NDDataContainer | |
| virtual | ~NDDataContainer ()=default |
| Public Member Functions inherited from MayaFlux::Kakshya::SoundStreamContainer | |
| SoundStreamContainer (uint32_t sample_rate=48000, uint32_t num_channels=2, uint64_t initial_capacity=0, bool circular_mode=false) | |
| Construct a SoundStreamContainer with specified parameters. | |
| ~SoundStreamContainer () override=default | |
| std::vector< DataDimension > | get_dimensions () const override |
| Get the dimensions describing the structure of the data. | |
| uint64_t | get_total_elements () const override |
| Get the total number of elements in the container. | |
| MemoryLayout | get_memory_layout () const override |
| Get the memory layout used by this container. | |
| void | set_memory_layout (MemoryLayout layout) override |
| Set the memory layout for this container. | |
| uint64_t | get_frame_size () const override |
| Get the number of elements that constitute one "frame". | |
| uint64_t | get_num_frames () const override |
| Get the number of frames in the primary (temporal) dimension. | |
| std::vector< DataVariant > | get_region_data (const Region ®ion) const override |
| Get data for a specific region. | |
| void | set_region_data (const Region ®ion, const std::vector< DataVariant > &data) override |
| Set data for a specific region. | |
| std::vector< DataVariant > | get_region_group_data (const RegionGroup &group) const override |
| Get data for multiple regions efficiently. | |
| std::vector< DataVariant > | get_segments_data (const std::vector< RegionSegment > &segment) const override |
| Get data for multiple region segments efficiently. | |
| std::span< const double > | get_frame (uint64_t frame_index) const override |
| Get a single frame of data efficiently. | |
| void | get_frames (std::span< double > output, uint64_t start_frame, uint64_t num_frames) const override |
| Get multiple frames efficiently. | |
| double | get_value_at (const std::vector< uint64_t > &coordinates) const override |
| Get a single value at the specified coordinates. | |
| void | set_value_at (const std::vector< uint64_t > &coordinates, double value) override |
| Set a single value at the specified coordinates. | |
| uint64_t | coordinates_to_linear_index (const std::vector< uint64_t > &coordinates) const override |
| Convert coordinates to linear index based on current memory layout. | |
| std::vector< uint64_t > | linear_index_to_coordinates (uint64_t linear_index) const override |
| Convert linear index to coordinates based on current memory layout. | |
| void | clear () override |
| Clear all data in the container. | |
| void | lock () override |
| Acquire a lock for thread-safe access. | |
| void | unlock () override |
| Release a previously acquired lock. | |
| bool | try_lock () override |
| Attempt to acquire a lock without blocking. | |
| const void * | get_raw_data () const override |
| Get a raw pointer to the underlying data storage. | |
| bool | has_data () const override |
| Check if the container currently holds any data. | |
| ContainerDataStructure & | get_structure () override |
| Get the data structure defining this container's layout. | |
| const ContainerDataStructure & | get_structure () const override |
| void | set_structure (ContainerDataStructure structure) override |
| Set the data structure for this container. | |
| void | add_region_group (const RegionGroup &group) override |
| Add a named group of regions to the container. | |
| const RegionGroup & | get_region_group (const std::string &name) const override |
| Get a region group by name. | |
| std::unordered_map< std::string, RegionGroup > | get_all_region_groups () const override |
| Get all region groups in the container. | |
| void | remove_region_group (const std::string &name) override |
| Remove a region group by name. | |
| bool | is_region_loaded (const Region ®ion) const override |
| Check if a region is loaded in memory. | |
| void | load_region (const Region ®ion) override |
| Load a region into memory. | |
| void | unload_region (const Region ®ion) override |
| Unload a region from memory. | |
| void | set_read_position (const std::vector< uint64_t > &position) override |
| Set the current read position in the primary temporal dimension per channel. | |
| void | update_read_position_for_channel (size_t channel, uint64_t frame) override |
| Update the read position for a specific channel. | |
| const std::vector< uint64_t > & | get_read_position () const override |
| Get the current read position. | |
| void | advance_read_position (const std::vector< uint64_t > &frames) override |
| Advance the read position by a specified amount. | |
| bool | is_at_end () const override |
| Check if read position has reached the end of the stream. | |
| void | reset_read_position () override |
| Reset read position to the beginning of the stream. | |
| uint64_t | get_temporal_rate () const override |
| Get the temporal rate (e.g., sample rate, frame rate) of the stream. | |
| uint64_t | time_to_position (double time) const override |
| Convert from time (seconds) to position units (e.g., frame/sample index). | |
| double | position_to_time (uint64_t position) const override |
| Convert from position units (e.g., frame/sample index) to time (seconds). | |
| void | set_looping (bool enable) override |
| Enable or disable looping behavior for the stream. | |
| bool | is_looping () const override |
| Check if looping is enabled for the stream. | |
| void | set_loop_region (const Region ®ion) override |
| Set the loop region using a Region. | |
| Region | get_loop_region () const override |
| Get the current loop region. | |
| bool | is_ready () const override |
| Check if the stream is ready for reading. | |
| std::vector< uint64_t > | get_remaining_frames () const override |
| Get the number of remaining frames from the current position, per channel. | |
| uint64_t | read_sequential (std::span< double > output, uint64_t count) override |
| Read data sequentially from the current position. | |
| uint64_t | peek_sequential (std::span< double > output, uint64_t count, uint64_t offset=0) const override |
| Peek at data without advancing the read position. | |
| ProcessingState | get_processing_state () const override |
| Get the current processing state of the container. | |
| void | update_processing_state (ProcessingState new_state) override |
| Update the processing state of the container. | |
| void | register_state_change_callback (std::function< void(std::shared_ptr< SignalSourceContainer >, ProcessingState)> callback) override |
| Register a callback to be invoked on processing state changes. | |
| void | unregister_state_change_callback () override |
| Unregister the state change callback, if any. | |
| bool | is_ready_for_processing () const override |
| Check if the container is ready for processing. | |
| void | mark_ready_for_processing (bool ready) override |
| Mark the container as ready or not ready for processing. | |
| void | create_default_processor () override |
| Create and configure a default processor for this container. | |
| void | process_default () override |
| Process the container's data using the default processor. | |
| void | set_default_processor (std::shared_ptr< DataProcessor > processor) override |
| Set the default data processor for this container. | |
| std::shared_ptr< DataProcessor > | get_default_processor () const override |
| Get the current default data processor. | |
| std::shared_ptr< DataProcessingChain > | get_processing_chain () override |
| Get the current processing chain for this container. | |
| void | set_processing_chain (std::shared_ptr< DataProcessingChain > chain) override |
| Set the processing chain for this container. | |
| uint32_t | register_dimension_reader (uint32_t dimension_index) override |
| Register a reader for a specific dimension. | |
| void | unregister_dimension_reader (uint32_t dimension_index) override |
| Unregister a reader for a specific dimension. | |
| bool | has_active_readers () const override |
| Check if any dimensions currently have active readers. | |
| void | mark_dimension_consumed (uint32_t dimension_index, uint32_t reader_id) override |
| Mark a dimension as consumed for the current processing cycle. | |
| bool | all_dimensions_consumed () const override |
| Check if all active dimensions have been consumed in this cycle. | |
| virtual void | clear_all_consumption () |
| std::vector< DataVariant > & | get_processed_data () override |
| Get a mutable reference to the processed data buffer. | |
| const std::vector< DataVariant > & | get_processed_data () const override |
| Get a const reference to the processed data buffer. | |
| void | mark_buffers_for_processing (bool) override |
| Mark associated buffers for processing in the next cycle. | |
| void | mark_buffers_for_removal () override |
| Mark associated buffers for removal from the system. | |
| virtual uint32_t | get_sample_rate () const |
| virtual uint32_t | get_num_channels () const |
| void | reset_processing_token () override |
| bool | try_acquire_processing_token (int channel) override |
| bool | has_processing_token (int channel) const override |
| std::span< const double > | get_data_as_double () const |
| Get the audio data as a specific type. | |
| const std::vector< DataVariant > & | get_data () override |
| Get a reference to the raw data stored in the container. | |
| DataAccess | channel_data (size_t channel) override |
| Get channel data with semantic interpretation. | |
| std::vector< DataAccess > | all_channel_data () override |
| Get all channel data as accessors. | |
Additional Inherited Members | |
| Protected Member Functions inherited from MayaFlux::Kakshya::SoundStreamContainer | |
| void | setup_dimensions () |
| void | notify_state_change (ProcessingState new_state) |
| void | reorganize_data_layout (MemoryLayout new_layout) |
| const std::vector< std::span< double > > & | get_span_cache () const |
| Get the cached spans for each channel, recomputing if dirty. | |
| void | invalidate_span_cache () |
| Invalidate the span cache when data or layout changes. | |
| Protected Attributes inherited from MayaFlux::Kakshya::SoundStreamContainer | |
| std::vector< DataVariant > | m_data |
| std::vector< DataVariant > | m_processed_data |
| std::atomic< int > | m_processing_token_channel { -1 } |
| uint32_t | m_sample_rate = 48000 |
| uint32_t | m_num_channels {} |
| uint64_t | m_num_frames {} |
| std::vector< std::atomic< uint64_t > > | m_read_position |
| bool | m_looping_enabled = false |
| Region | m_loop_region |
| bool | m_circular_mode {} |
| uint64_t | m_circular_write_position {} |
| std::atomic< ProcessingState > | m_processing_state { ProcessingState::IDLE } |
| std::shared_ptr< DataProcessor > | m_default_processor |
| std::shared_ptr< DataProcessingChain > | m_processing_chain |
| std::unordered_map< std::string, RegionGroup > | m_region_groups |
| std::unordered_map< uint32_t, int > | m_active_readers |
| std::unordered_set< uint32_t > | m_consumed_dimensions |
| std::unordered_map< uint32_t, std::unordered_set< uint32_t > > | m_reader_consumed_dimensions |
| std::unordered_map< uint32_t, uint32_t > | m_dimension_to_next_reader_id |
| std::function< void(std::shared_ptr< SignalSourceContainer >, ProcessingState)> | m_state_callback |
| std::shared_mutex | m_data_mutex |
| std::mutex | m_state_mutex |
| std::mutex | m_reader_mutex |
| std::vector< double > | m_cached_ext_buffer |
| std::atomic< bool > | m_double_extraction_dirty { true } |
| std::mutex | m_extraction_mutex |
| ContainerDataStructure | m_structure |
Detailed Description
File-backed audio container with complete streaming functionality.
SoundFileContainer combines file-specific semantics (FileContainer) with full streaming capabilities (SoundStreamContainer). It provides:
- Complete streaming functionality inherited from SoundStreamContainer
- File-specific metadata and semantic marking from FileContainer
- Specialized file loading and capacity management
The container extends SoundStreamContainer's streaming capabilities with file-specific concerns like fixed capacity and file metadata handling.
Dimensions:
- [0] Time (samples/frames)
- [1] Channels
- [N] Additional dimensions for spectral data, analysis results, etc.
Definition at line 27 of file SoundFileContainer.hpp.
The documentation for this class was generated from the following files:
