Network of IIR biquad bandpass filters driven by external excitation. More...

#include <ResonatorNetwork.hpp>

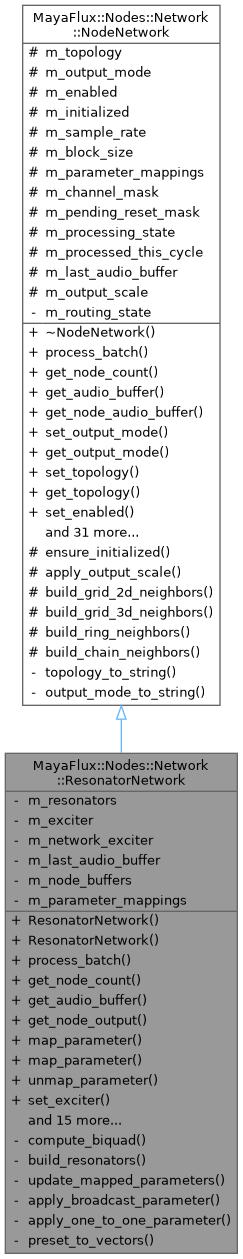

Inheritance diagram for MayaFlux::Nodes::Network::ResonatorNetwork:

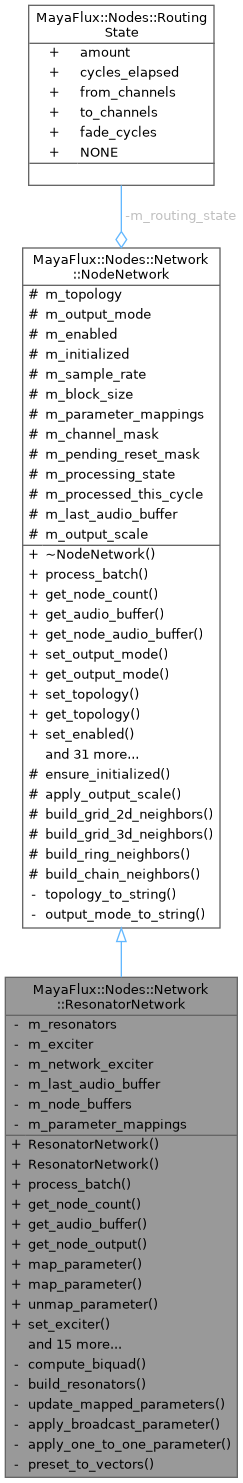

Collaboration diagram for MayaFlux::Nodes::Network::ResonatorNetwork:

Classes
struct	ParameterMapping

struct	ResonatorNode
	State of a single biquad bandpass resonator. More...

Public Types
enum class	FormantPreset : uint8_t { NONE , VOWEL_A , VOWEL_E , VOWEL_I , VOWEL_O , VOWEL_U }
	Common vowel and spectral formant configurations. More...

Public Member Functions
	ResonatorNetwork (size_t num_resonators, FormantPreset preset=FormantPreset::NONE)
	Construct a ResonatorNetwork with a formant preset.

	ResonatorNetwork (const std::vector< double > &frequencies, const std::vector< double > &q_values)
	Construct a ResonatorNetwork with explicit frequency and Q vectors.

void	process_batch (unsigned int num_samples) override
	Processes num_samples through all resonators and accumulates output.

size_t	get_node_count () const override
	Returns the number of resonators in the network.

std::optional< std::vector< double > >	get_audio_buffer () const override
	Returns the mixed audio buffer from the last process_batch() call.

std::optional< double >	get_node_output (size_t index) const override
	Returns the last output sample of the resonator at index.

void	map_parameter (const std::string &param_name, const std::shared_ptr< Node > &source, MappingMode mode=MappingMode::BROADCAST) override
	Map a scalar node output to a named networkparameter (BROADCAST)

void	map_parameter (const std::string &param_name, const std::shared_ptr< NodeNetwork > &source_network) override
	Map a NodeNetwork's per-node outputs to a named network parameter (ONE_TO_ONE)

void	unmap_parameter (const std::string &param_name) override
	Remove a parameter mapping by name.

void	set_exciter (const std::shared_ptr< Node > &exciter)
	Set a shared exciter node for all resonators.

void	clear_exciter ()
	Clear the network-level exciter.

void	set_resonator_exciter (size_t index, const std::shared_ptr< Node > &exciter)
	Set a per-resonator exciter.

void	clear_resonator_exciter (size_t index)
	Clear per-resonator exciter, reverting to network-level exciter.

void	set_network_exciter (const std::shared_ptr< NodeNetwork > &network)
	Set a NodeNetwork as a source of per-resonator excitation (ONE_TO_ONE)

void	clear_network_exciter ()
	Clear the network exciter.

void	set_frequency (size_t index, double frequency)
	Set centre frequency of a single resonator and recompute its coefficients.

void	set_q (size_t index, double q)
	Set Q factor of a single resonator and recompute its coefficients.

void	set_resonator_gain (size_t index, double gain)
	Set amplitude gain of a single resonator.

void	set_all_frequencies (double frequency)
	Set centre frequency of all resonators uniformly.

void	set_all_q (double q)
	Set Q factor of all resonators uniformly.

void	apply_preset (FormantPreset preset)
	Apply a FormantPreset to the current network.

const std::vector< ResonatorNode > &	get_resonators () const
	Read-only access to all resonator descriptors.

double	get_sample_rate () const
	Current audio sample rate.

std::optional< std::span< const double > >	get_node_audio_buffer (size_t index) const override
	Get output of specific internal node as audio buffer (for ONE_TO_ONE mapping)

std::unordered_map< std::string, std::string >	get_metadata () const override
	Returns network metadata for debugging and visualisation.

Public Member Functions inherited from MayaFlux::Nodes::Network::NodeNetwork
virtual	~NodeNetwork ()=default

void	set_output_mode (OutputMode mode)
	Set the network's output routing mode.

OutputMode	get_output_mode () const
	Get the current output routing mode.

virtual void	set_topology (Topology topology)
	Set the network's topology.

Topology	get_topology () const
	Get the current topology.

void	set_enabled (bool enabled)
	Enable/disable the network.

bool	is_enabled () const
	Check if network is enabled.

virtual void	initialize ()
	Called once before first process_batch()

virtual void	reset ()
	Reset network to initial state.

void	set_output_scale (double scale)
	Set the scalar multiplier applied to the network's output buffer after processing.

double	get_output_scale () const
	Get the current output scale factor.

void	add_channel_usage (uint32_t channel_id)
	Register network usage on a specific channel.

void	remove_channel_usage (uint32_t channel_id)
	Unregister network from a specific channel.

bool	is_registered_on_channel (uint32_t channel_id) const
	Check if network is registered on a channel.

std::vector< uint32_t >	get_registered_channels () const
	Get all channels this network is registered on.

uint32_t	get_channel_mask () const
	Get channel mask (bitfield of registered channels)

void	set_channel_mask (uint32_t mask)
	Set channel mask directly.

bool	is_processed_this_cycle () const
	Check if network has been processed this cycle (lock-free)

void	mark_processing (bool processing)
	Mark network as processing or not (lock-free)

void	mark_processed (bool processed)
	Mark network as processed this cycle (lock-free)

bool	is_processing () const
	Check if network is currently processing (lock-free)

void	request_reset_from_channel (uint32_t channel_id)
	Request a reset from a specific channel.

virtual NetworkOperator *	get_operator ()

virtual const NetworkOperator *	get_operator () const

virtual bool	has_operator () const

const RoutingState &	get_routing_state () const
	Retrieves the current routing state of the network.

RoutingState &	get_routing_state ()
	Retrieves the current routing state of the network (non-const)

bool	needs_channel_routing () const
	Checks if the network is currently in a routing transition phase.

void	set_sample_rate (uint32_t sample_rate)

uint32_t	get_sample_rate () const

void	set_block_size (uint32_t block_size)

uint32_t	get_block_size () const

Private Member Functions
void	compute_biquad (ResonatorNode &r)
	Compute RBJ biquad bandpass coefficients and push them into a resonator's IIR.

void	build_resonators (const std::vector< double > &frequencies, const std::vector< double > &qs)
	Initialise all resonators from a frequency/Q pair list.

void	update_mapped_parameters ()
	Apply all registered parameter mappings for the current cycle.

void	apply_broadcast_parameter (const std::string &param, double value)
	Apply a BROADCAST value to the named parameter across all resonators.

void	apply_one_to_one_parameter (const std::string &param, const std::shared_ptr< NodeNetwork > &source)
	Apply ONE_TO_ONE values from a source network to the named parameter.

Static Private Member Functions
static void	preset_to_vectors (FormantPreset preset, size_t n, std::vector< double > &out_freqs, std::vector< double > &out_qs)
	Translate a FormantPreset into parallel frequency/Q vectors.

Private Attributes
std::vector< ResonatorNode >	m_resonators

std::shared_ptr< Node >	m_exciter
	networ-level shared exciter (may be nullptr)

std::shared_ptr< NodeNetwork >	m_network_exciter
	Optional NodeNetwork exciter for ONE_TO_ONE mapping (may be nullptr)

std::vector< double >	m_last_audio_buffer
	Mixed output from last process_batch()

std::vector< std::vector< double > >	m_node_buffers
	Per-resonator sample buffers populated each process_batch()

std::vector< ParameterMapping >	m_parameter_mappings

Additional Inherited Members
Protected Member Functions inherited from MayaFlux::Nodes::Network::NodeNetwork
void	ensure_initialized ()
	Ensure initialize() is called exactly once.

void	apply_output_scale ()
	Apply m_output_scale to m_last_audio_buffer.

Static Protected Member Functions inherited from MayaFlux::Nodes::Network::NodeNetwork
static std::unordered_map< size_t, std::vector< size_t > >	build_grid_2d_neighbors (size_t width, size_t height)
	Build neighbor map for GRID_2D topology.

static std::unordered_map< size_t, std::vector< size_t > >	build_grid_3d_neighbors (size_t width, size_t height, size_t depth)
	Build neighbor map for GRID_3D topology.

static std::unordered_map< size_t, std::vector< size_t > >	build_ring_neighbors (size_t count)
	Build neighbor map for RING topology.

static std::unordered_map< size_t, std::vector< size_t > >	build_chain_neighbors (size_t count)
	Build neighbor map for CHAIN topology.

Protected Attributes inherited from MayaFlux::Nodes::Network::NodeNetwork
Topology	m_topology = Topology::INDEPENDENT

OutputMode	m_output_mode = OutputMode::NONE

bool	m_enabled = true

bool	m_initialized = false

uint32_t	m_sample_rate { 48000 }

uint32_t	m_block_size { 512 }

std::vector< ParameterMapping >	m_parameter_mappings

std::atomic< uint32_t >	m_channel_mask { 0 }
	Bitfield of channels this network is registered on.

std::atomic< uint32_t >	m_pending_reset_mask { 0 }

std::atomic< bool >	m_processing_state { false }
	Per-channel processing state (lock-free atomic flags)

std::atomic< bool >	m_processed_this_cycle { false }

std::vector< double >	m_last_audio_buffer

double	m_output_scale { 1.0 }
	Post-processing scalar applied to m_last_audio_buffer each batch.

Detailed Description

Network of IIR biquad bandpass filters driven by external excitation.

CONCEPT:

ResonatorNetwork implements N second-order IIR bandpass sections (biquads), each tuned to an independent centre frequency and Q factor. Unlike ModalNetwork, which synthesises resonance through decaying sinusoidal oscillators in the frequency domain, ResonatorNetwork operates purely in the time domain: it shapes the spectrum of whatever signal is injected into it. Feed white noise and the Network becomes a formant synthesiser; feed a pitched glottal pulse and it voices a vowel; feed an arbitrary signal and it performs spectral morphing toward the target formant profile.

Each resonator computes the RBJ Audio EQ cookbook bilinear-transform biquad bandpass (constant 0 dB peak gain form):

H(z) = (1 - z^{-2}) * (b0/a0) / (1 + (a1/a0)*z^{-1} + (a2/a0)*z^{-2})

Coefficients derived at construction and on every parameter change:

w0 = 2π f0 / Fs alpha = sin(w0) / (2 Q) b0 = sin(w0) / 2 = alpha b1 = 0 b2 = -sin(w0) / 2 = -alpha a0 = 1 + alpha a1 = -2 cos(w0) a2 = 1 - alpha

EXCITATION:

A single shared exciter node can drive all resonators simultaneously (the classic formant synthesis topology). Alternatively, per-resonator exciter nodes allow independent spectral injection. If no exciter is set, the network accepts external samples passed directly to process_sample() / process_batch().

PARAMETER MAPPING:

Supports BROADCAST and ONE_TO_ONE modes via the NodeNetwork interface:

"frequency" — centre frequency of all resonators (BROADCAST) or per-resonator (ONE_TO_ONE)
"q" — bandwidth/resonance of all resonators (BROADCAST) or per-resonator (ONE_TO_ONE)
"gain" — amplitude scale per resonator (BROADCAST) or per-resonator (ONE_TO_ONE)

OUTPUT:

Each process_batch() call sums all resonator outputs into a single mixed audio buffer, normalised by the number of active resonators to prevent clipping. Alternatively, get_node_output(index) exposes the most recent individual resonator output for cross-domain routing.

USAGE:

// Five-formant vowel synthesiser fed by a noise source
auto network= std::make_shared<ResonatorNetwork>(5,
    ResonatorNetwork::FormantPreset::VOWEL_A, 48000.0);

auto noise = vega.Random(GAUSSIAN);
network->set_exciter(noise);

auto rb = vega.ResonatorNetwork(5, ResonatorNetwork::FormantPreset::VOWEL_A)[0] | Audio;
rb->set_exciter(noise);

// Direct frequency/Q control
network->set_frequency(2, 2400.0);
network->set_q(2, 80.0);

Definition at line 79 of file ResonatorNetwork.hpp.
