◆ ResonatorNetwork() [1/2]
| MayaFlux::Nodes::Network::ResonatorNetwork::ResonatorNetwork | ( | size_t | num_resonators, |
| FormantPreset | preset = FormantPreset::NONE |
||
| ) |
Construct a ResonatorNetwork with a formant preset.
- Parameters
-
num_resonators Number of biquad sections to allocate preset Formant frequency/Q configuration to apply at startup
Resonators beyond the preset's defined count are initialised at 440 Hz, Q = 10 with unit gain.
Definition at line 118 of file ResonatorNetwork.cpp.
120{
122 std::vector<double> freqs, qs;
123 preset_to_vectors(preset, num_resonators, freqs, qs);
124 build_resonators(freqs, qs);
125}
void set_output_mode(OutputMode mode)
Set the network's output routing mode.
Definition NodeNetwork.hpp:176
static void preset_to_vectors(FormantPreset preset, size_t n, std::vector< double > &out_freqs, std::vector< double > &out_qs)
Translate a FormantPreset into parallel frequency/Q vectors.
Definition ResonatorNetwork.cpp:73
void build_resonators(const std::vector< double > &frequencies, const std::vector< double > &qs)
Initialise all resonators from a frequency/Q pair list.
Definition ResonatorNetwork.cpp:142
@ AUDIO_SINK
Aggregated audio samples sent to output.
References MayaFlux::Nodes::Network::AUDIO_SINK, build_resonators(), preset_to_vectors(), and MayaFlux::Nodes::Network::NodeNetwork::set_output_mode().

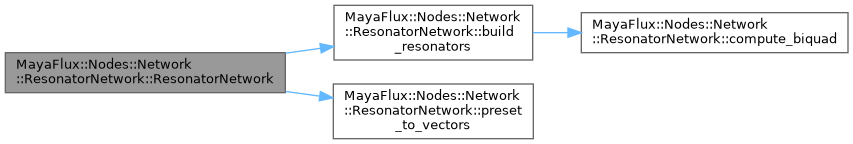

Here is the call graph for this function:
