MayaFlux::Buffers::NetworkGeometryProcessor Class Reference
BufferProcessor that aggregates geometry from NodeNetwork nodes. More...
#include <NetworkGeometryProcessor.hpp>

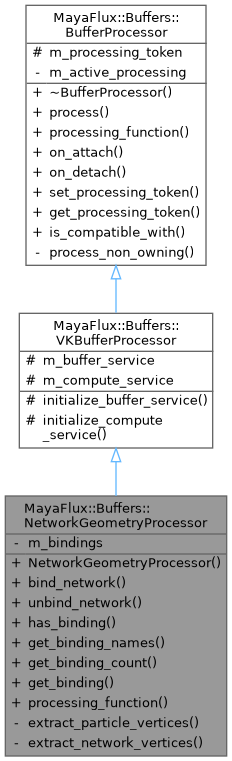

Inheritance diagram for MayaFlux::Buffers::NetworkGeometryProcessor:

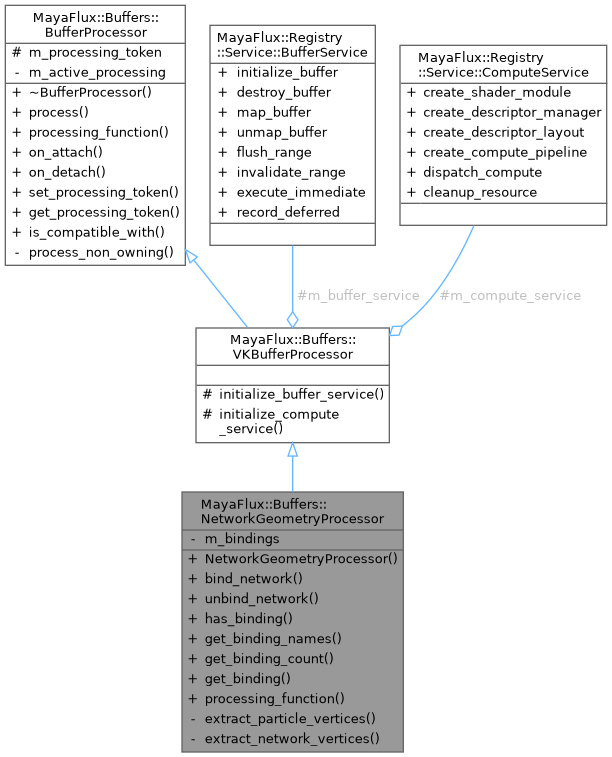

Collaboration diagram for MayaFlux::Buffers::NetworkGeometryProcessor:
Classes | |
| struct | NetworkBinding |
| Structure representing a network geometry binding. More... | |
Public Member Functions | |
| NetworkGeometryProcessor () | |
| void | bind_network (const std::string &name, const std::shared_ptr< Nodes::NodeNetwork > &network, const std::shared_ptr< VKBuffer > &vertex_buffer) |
| Bind a network to a GPU vertex buffer. | |
| void | unbind_network (const std::string &name) |
| Remove a network binding. | |
| bool | has_binding (const std::string &name) const |
| Check if a binding exists. | |
| std::vector< std::string > | get_binding_names () const |
| Get all binding names. | |
| size_t | get_binding_count () const |
| Get number of active bindings. | |
| std::optional< NetworkBinding > | get_binding (const std::string &name) const |
| Get a specific binding. | |
| void | processing_function (std::shared_ptr< Buffer > buffer) override |
| BufferProcessor interface - aggregates and uploads network geometry. | |
| Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor | |
| virtual | ~BufferProcessor ()=default |
| Virtual destructor for proper cleanup of derived classes. | |
| void | process (std::shared_ptr< Buffer > buffer) |
| Applies a computational transformation to the data in the provided buffer. | |
| virtual void | on_attach (std::shared_ptr< Buffer >) |
| Called when this processor is attached to a buffer. | |
| virtual void | on_detach (std::shared_ptr< Buffer >) |
| Called when this processor is detached from a buffer. | |
| virtual void | set_processing_token (ProcessingToken token) |
| Gets the preferred processing backend for this processor. | |
| virtual ProcessingToken | get_processing_token () const |
| Gets the current processing token for this buffer. | |
| virtual bool | is_compatible_with (std::shared_ptr< Buffer >) const |
| Checks if this processor can handle the specified buffer type. | |
Private Member Functions | |
| std::vector< Nodes::GpuSync::PointVertex > | extract_particle_vertices (const std::shared_ptr< Nodes::ParticleNetwork > &network) |
| Extract vertices from ParticleNetwork. | |
| std::vector< Nodes::GpuSync::PointVertex > | extract_network_vertices (const std::shared_ptr< Nodes::NodeNetwork > &network) |
| Extract vertices from generic NodeNetwork (fallback) | |
Private Attributes | |
| std::unordered_map< std::string, NetworkBinding > | m_bindings |
Additional Inherited Members | |
| Protected Member Functions inherited from MayaFlux::Buffers::VKBufferProcessor | |
| void | initialize_buffer_service () |
| void | initialize_compute_service () |
| Protected Attributes inherited from MayaFlux::Buffers::VKBufferProcessor | |
| Registry::Service::BufferService * | m_buffer_service = nullptr |
| Registry::Service::ComputeService * | m_compute_service = nullptr |
| Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor | |
| ProcessingToken | m_processing_token { ProcessingToken::AUDIO_BACKEND } |
Detailed Description
BufferProcessor that aggregates geometry from NodeNetwork nodes.
Extracts geometry from all nodes within a network and uploads to GPU as a single vertex buffer. Handles network-specific patterns like ParticleNetwork (many PointNodes) and PointCloudNetwork.
Key Differences from GeometryBindingsProcessor:
- Operates on NodeNetwork (not single GeometryWriterNode)
- Aggregates vertices from ALL internal nodes
- Type-aware: special handling for ParticleNetwork, PointCloudNetwork, etc.
Behavior:
- Extracts ALL node geometry from bound networks
- Aggregates into single vertex buffer
- Uses staging buffer for device-local targets
- Supports multiple network bindings (different networks → different buffers)
Usage:
auto particles = std::make_shared<ParticleNetwork>(1000);
auto vertex_buffer = std::make_shared<VKBuffer>(...);
auto processor = std::make_shared<NetworkGeometryProcessor>();
processor->bind_network("particles", particles, vertex_buffer);
vertex_buffer->set_default_processor(processor);
vertex_buffer->process_default(); // Aggregates all 1000 PointNodes → GPU
Definition at line 44 of file NetworkGeometryProcessor.hpp.
The documentation for this class was generated from the following files:
