BufferProcessor that uploads geometry node data to GPU vertex buffers. More...
#include <GeometryBindingsProcessor.hpp>

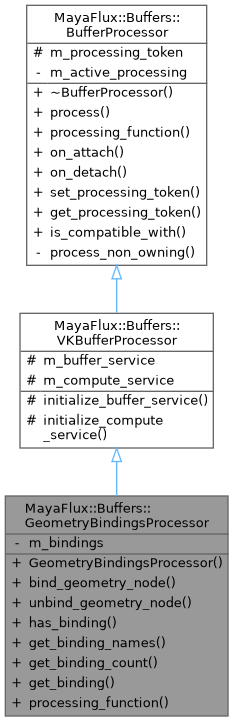

Inheritance diagram for MayaFlux::Buffers::GeometryBindingsProcessor:

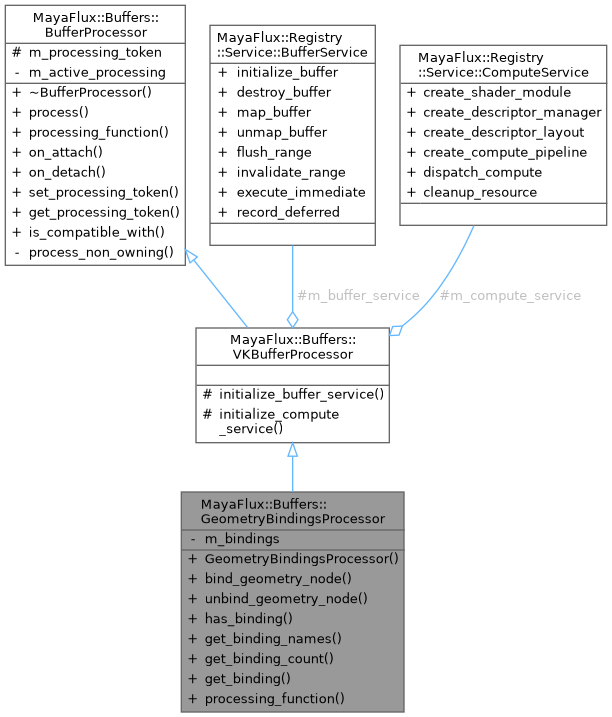

Collaboration diagram for MayaFlux::Buffers::GeometryBindingsProcessor:
Classes | |
| struct | GeometryBinding |
| Structure representing a geometry binding. More... | |
Public Member Functions | |
| GeometryBindingsProcessor () | |
| void | bind_geometry_node (const std::string &name, const std::shared_ptr< Nodes::GpuSync::GeometryWriterNode > &node, const std::shared_ptr< VKBuffer > &vertex_buffer) |
| Bind a geometry node to a GPU vertex buffer. | |
| void | unbind_geometry_node (const std::string &name) |
| Remove a geometry binding. | |
| bool | has_binding (const std::string &name) const |
| Check if a binding exists. | |
| std::vector< std::string > | get_binding_names () const |
| Get all binding names. | |
| size_t | get_binding_count () const |
| Get number of active bindings. | |
| std::optional< GeometryBinding > | get_binding (const std::string &name) const |
| Get a specific binding. | |
| void | processing_function (std::shared_ptr< Buffer > buffer) override |
| BufferProcessor interface - uploads all bound geometries. | |
| Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor | |
| virtual | ~BufferProcessor ()=default |
| Virtual destructor for proper cleanup of derived classes. | |
| void | process (std::shared_ptr< Buffer > buffer) |
| Applies a computational transformation to the data in the provided buffer. | |
| virtual void | on_attach (std::shared_ptr< Buffer >) |
| Called when this processor is attached to a buffer. | |
| virtual void | on_detach (std::shared_ptr< Buffer >) |
| Called when this processor is detached from a buffer. | |
| virtual void | set_processing_token (ProcessingToken token) |
| Gets the preferred processing backend for this processor. | |
| virtual ProcessingToken | get_processing_token () const |
| Gets the current processing token for this buffer. | |
| virtual bool | is_compatible_with (std::shared_ptr< Buffer >) const |
| Checks if this processor can handle the specified buffer type. | |
Private Attributes | |
| std::unordered_map< std::string, GeometryBinding > | m_bindings |
Additional Inherited Members | |
| Protected Member Functions inherited from MayaFlux::Buffers::VKBufferProcessor | |
| void | initialize_buffer_service () |
| void | initialize_compute_service () |
| Protected Attributes inherited from MayaFlux::Buffers::VKBufferProcessor | |
| Registry::Service::BufferService * | m_buffer_service = nullptr |
| Registry::Service::ComputeService * | m_compute_service = nullptr |
| Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor | |
| ProcessingToken | m_processing_token { ProcessingToken::AUDIO_BACKEND } |
Detailed Description
BufferProcessor that uploads geometry node data to GPU vertex buffers.
Manages bindings between GeometryWriterNode instances (CPU-side) and GPU vertex buffers. Each frame, reads vertex data from nodes and uploads to corresponding GPU buffers via staging buffers.
Behavior:
- Uploads ALL bound geometries to their target vertex buffers
- If target is device-local: uses staging buffer (auto-created)
- If target is host-visible: direct upload (no staging)
- If attached buffer is one of the targets: uploads its geometry
- If attached buffer is NOT a target: uploads first geometry to it
Usage: auto vertex_buffer = std::make_shared<VKBuffer>( 1000 * sizeof(Vertex), VKBuffer::Usage::VERTEX_BUFFER);
auto processor = std::make_shared<GeometryBindingsProcessor>(); processor->bind_geometry_node("particles", particle_node, vertex_buffer);
vertex_buffer->set_default_processor(processor); vertex_buffer->process_default(); // Uploads geometry
Definition at line 37 of file GeometryBindingsProcessor.hpp.
The documentation for this class was generated from the following files:
